8-44 Phaser 7500 Printer Service Manual
Service Parts Disassembly
7. Remove the wiring harness from the clamp on the Toner Dispense Motor
Assembly.
8. Disconnect the 4 wiring harness connectors that are connected to the Toner
Dispense Motors.
9. Remove 5 screws (silver, 6mm) that secure the Toner Dispense Motor
Assembly to the printer and remove the Toner Dispense Motor Assembly.

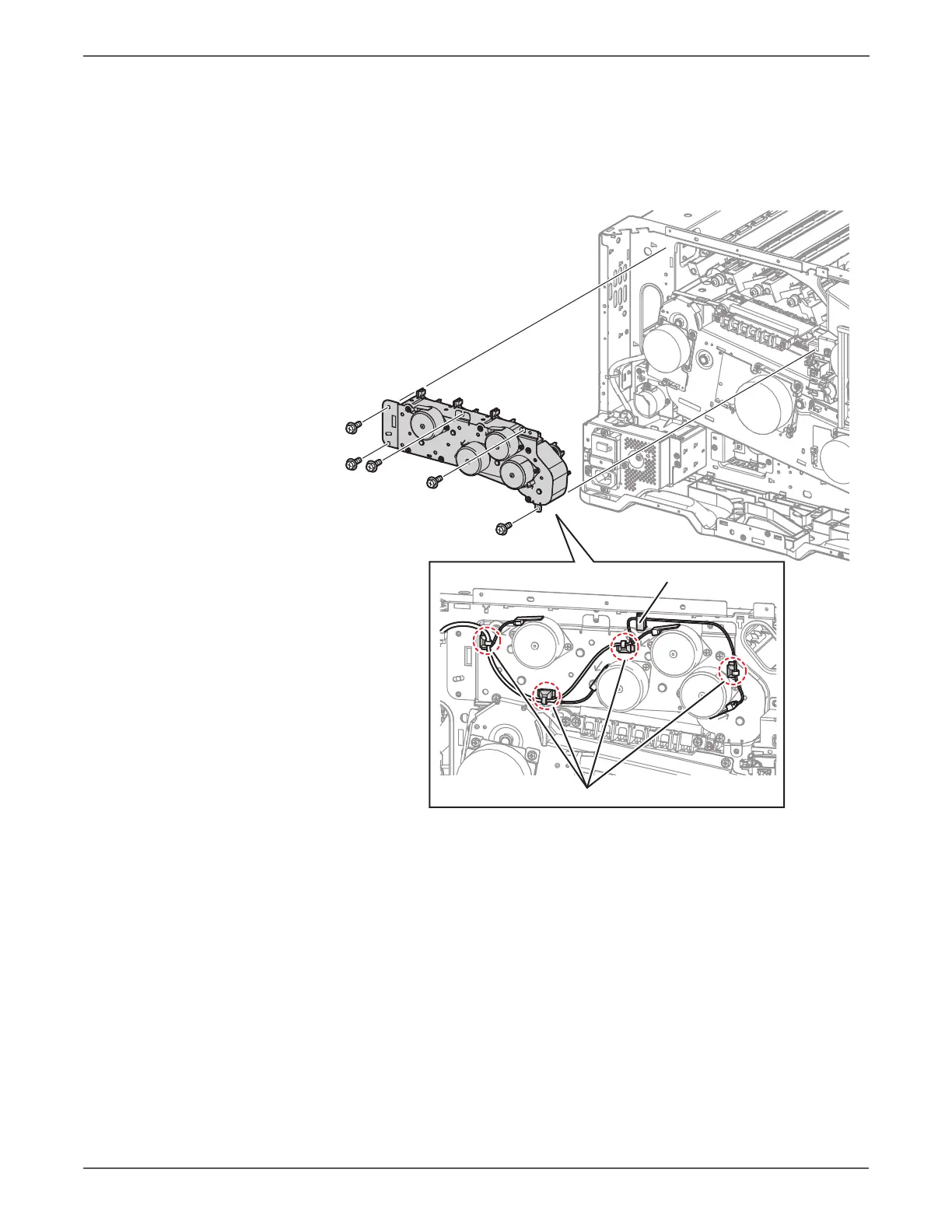

s7500-098
Clamp
Clamps
