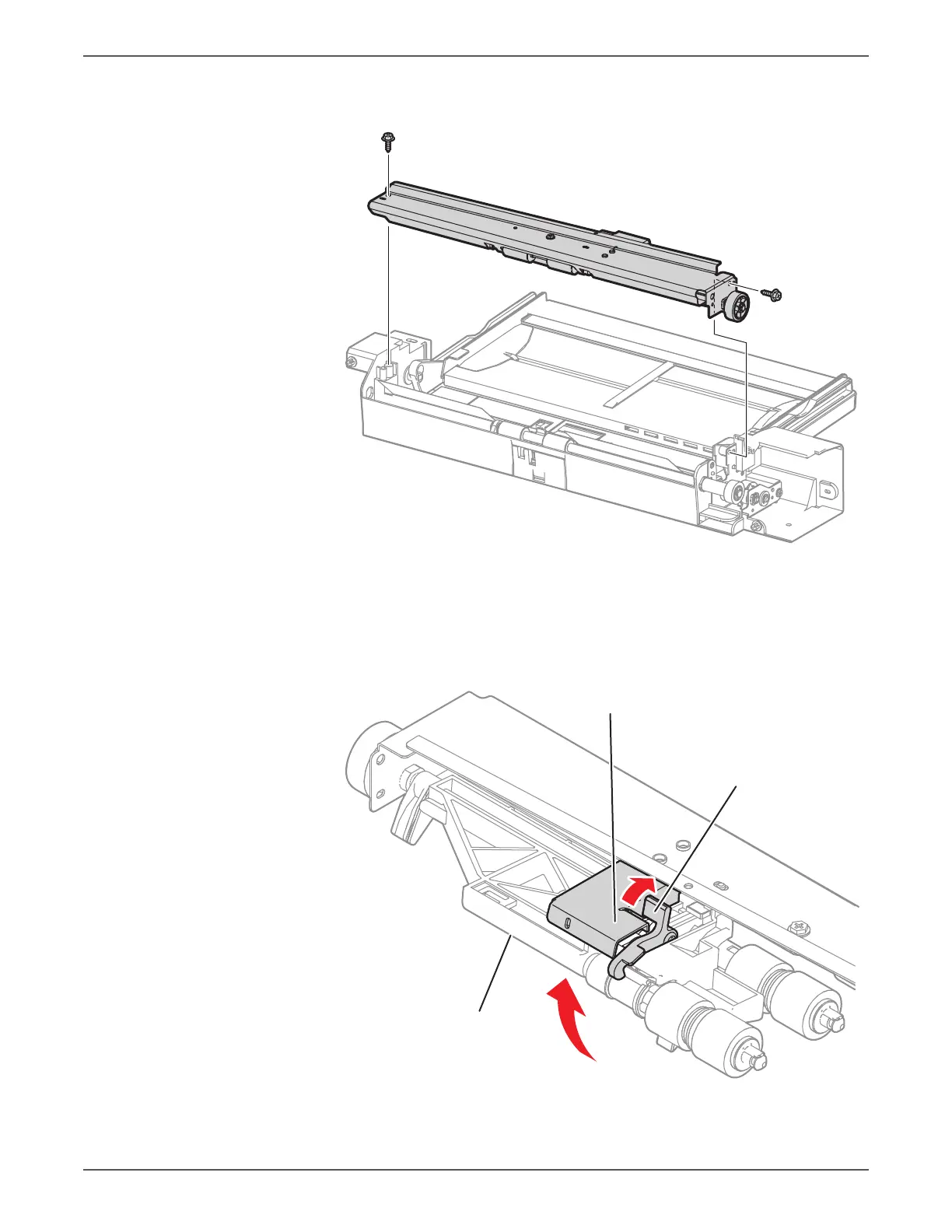

6. Remove 2 screws (silver, Tapped, 8mm) that secure the Upper Frame Assembly
to the Tray 1 Feeder Assembly and remove the Upper Frame Assembly.
Replacement Note
When installing the Upper Frame Assembly to the Tray 1 Feeder Assembly,
raise the Nudger Support such that the portion of the Lock Stopper is
positioned at the inner side of the Frame.
s7500-203
s7500-207
Frame
Lock Stopper
Nudger Support
