4. Disconnect the wiring harness connector that is connected to the 2nd BTR
Contact Retract Motor Assembly.
5. Disconnect the wiring harness connector that connects the 2nd BTR Contact
Retract Motor to the relay connector.

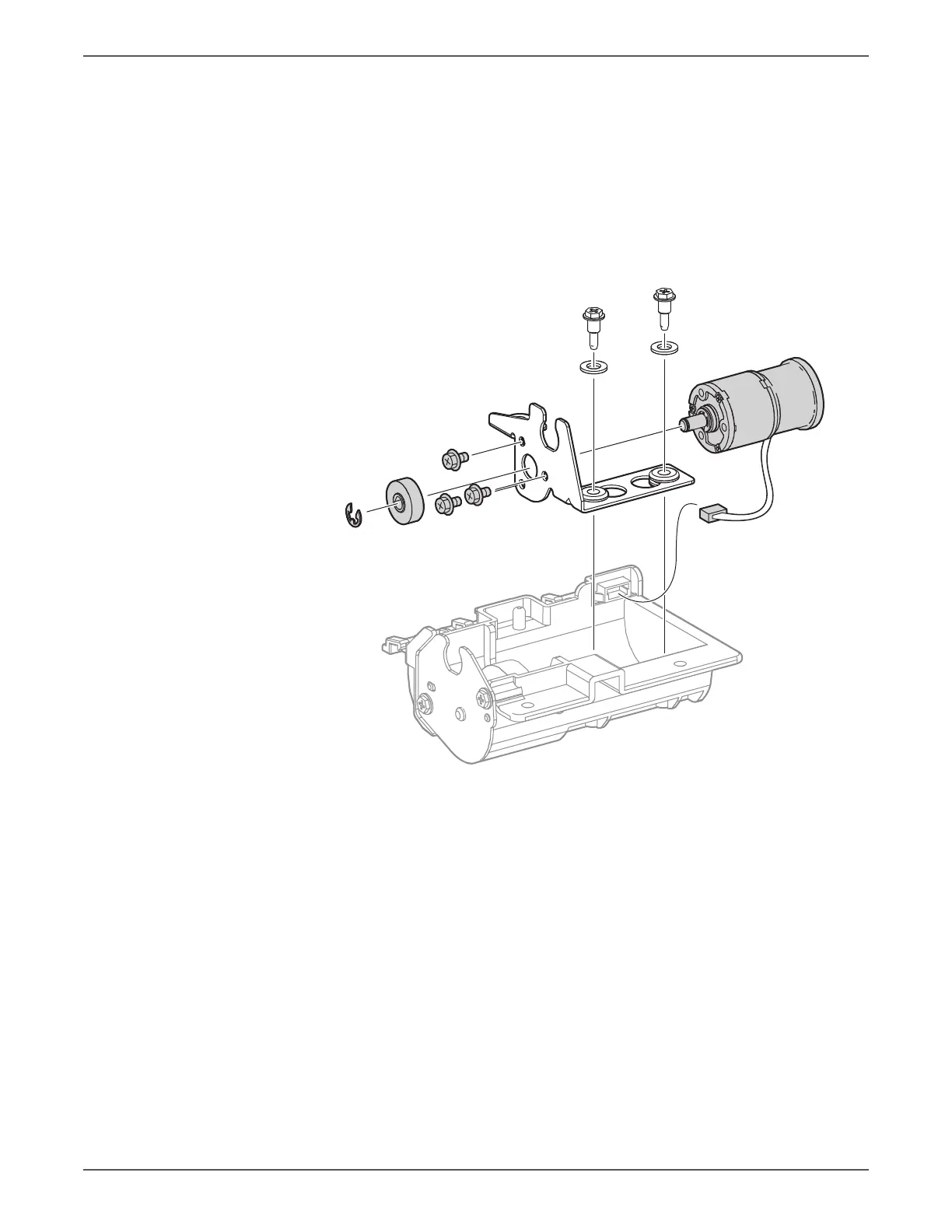

6. Remove 2 screws and 2 washers that secure the Motor Housing Assembly and
remove the Motor Housing Assembly.
7. Remove the E-ring and remove the Gear (19).
8. Remove 2 screws (silver, 4mm) that secure the 2nd BTR Contact Retract Motor
to the Motor Housing Assembly and remove the 2nd BTR Contact Retract
Motor.
