Service Parts Disassembly
Front Cover Assembly
1. Open the Front Cover Assembly by 45°.
2. Shift Strip (B), which is inserted in the long hole of Strip (A) at the right and
left, upwards and separate them.
3. Bend the center of the Front Cover Assembly downwards to release it from the
bump of the Inner Cover Assembly, and then slide the Front Cover Assembly to
the right to remove it.
4. Remove 1 screw (silver, Tapped, 8mm) that secures the Guide Assembly (PL
19.1.14) to the Front Cover Assembly and remove the Guide Assembly.

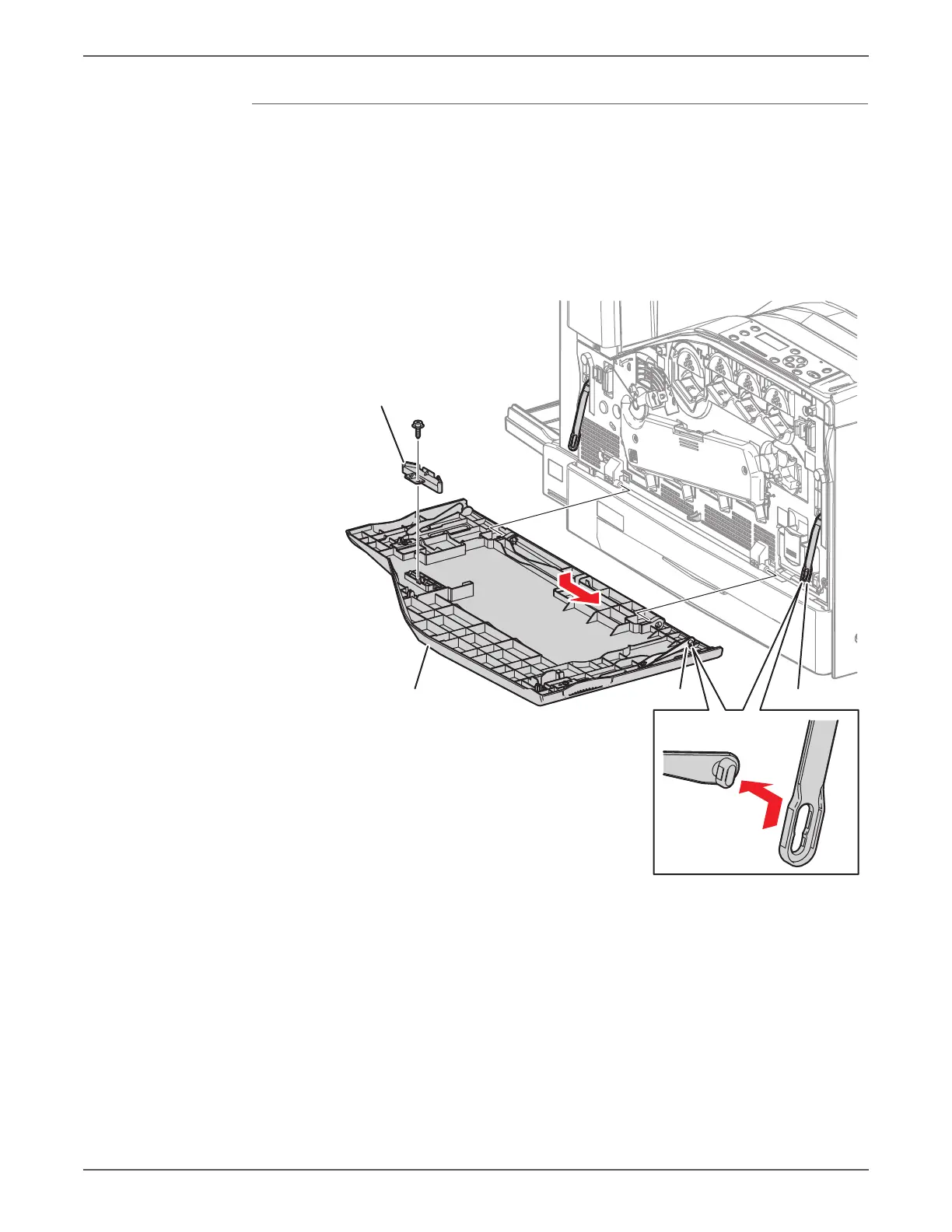

Front Cover Assembly
Guide Assembly
Strip (B)
Strip (A)
s7500-265
