Xerox PHASER 7500 Service Manual

8-210 Phaser 7500 Printer Service Manual
Service Parts Disassembly
Inner Cover Assembly
Caution
Do not expose the Imaging Unit to light for more than 5 minutes. Cover the
Imaging Unit to avoid damage. Do not touch the surface of the Imaging Unit.
1. Remove the Imaging Unit (Y/M/C/K) (REP 1.2, page 8-10).
2. Remove the Toner Cartridge (Y/M/C/K) (REP 1.1, page 8-9).
3. Remove the Waste Cartridge (REP 1.3, page 8-12).
4. Remove the IBT Belt Cleaner Assembly (REP 6.1, page 8-57).
5. Remove the Front Cover Assembly and the Inner Cover Assembly at the same
time.
6. Remove the Front Cover Assembly.
7. Remove Strip (A) from the Inner Cover Assembly.
8. Remove the Plate (Y/M/C/K) from the Inner Cover Assembly.

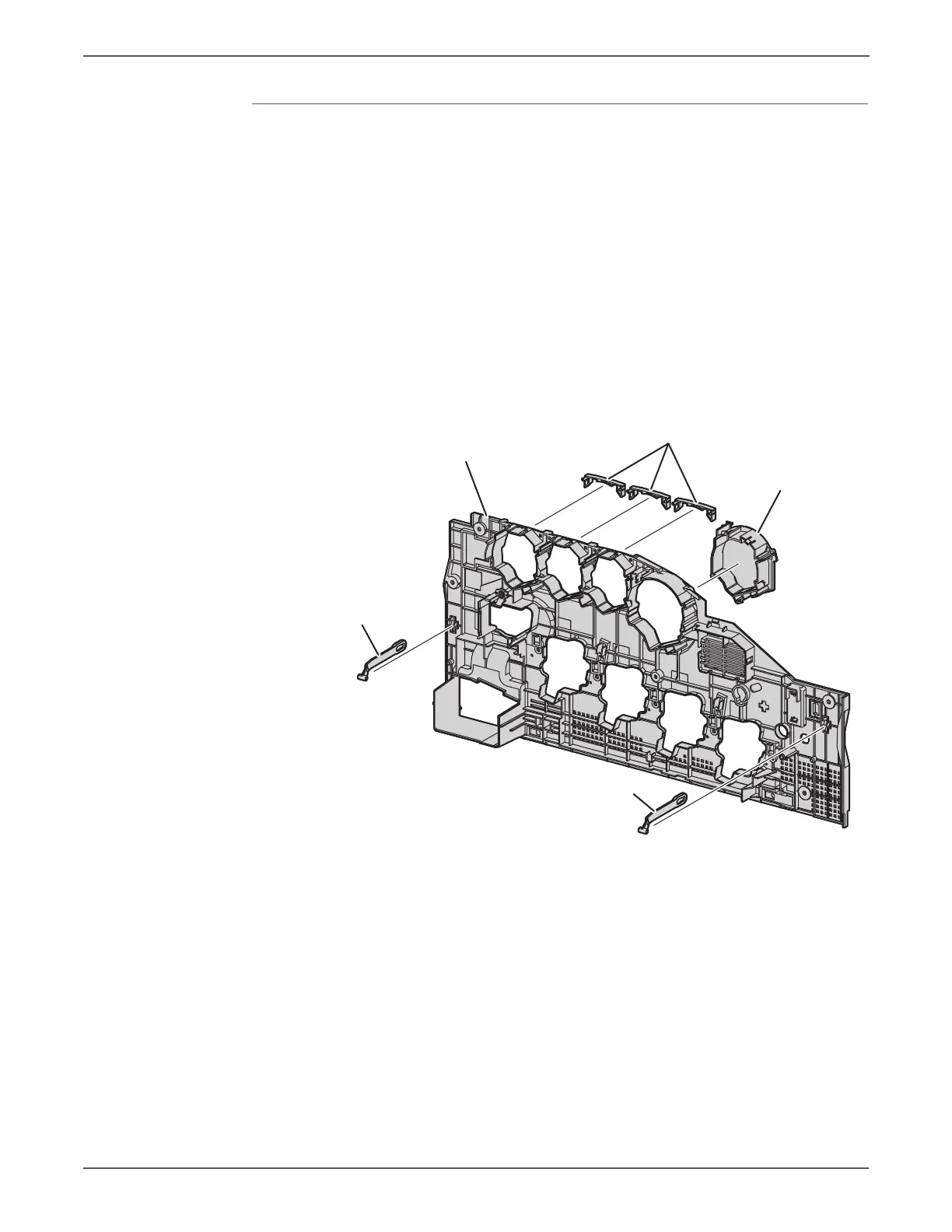

s7500-266
Inner Cover Assembly
Strip (A)
Strip (A)
Plate (K)
Plate (Y, M, C)

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
