8-34 Phaser 7500 Printer Service Manual
Service Parts Disassembly

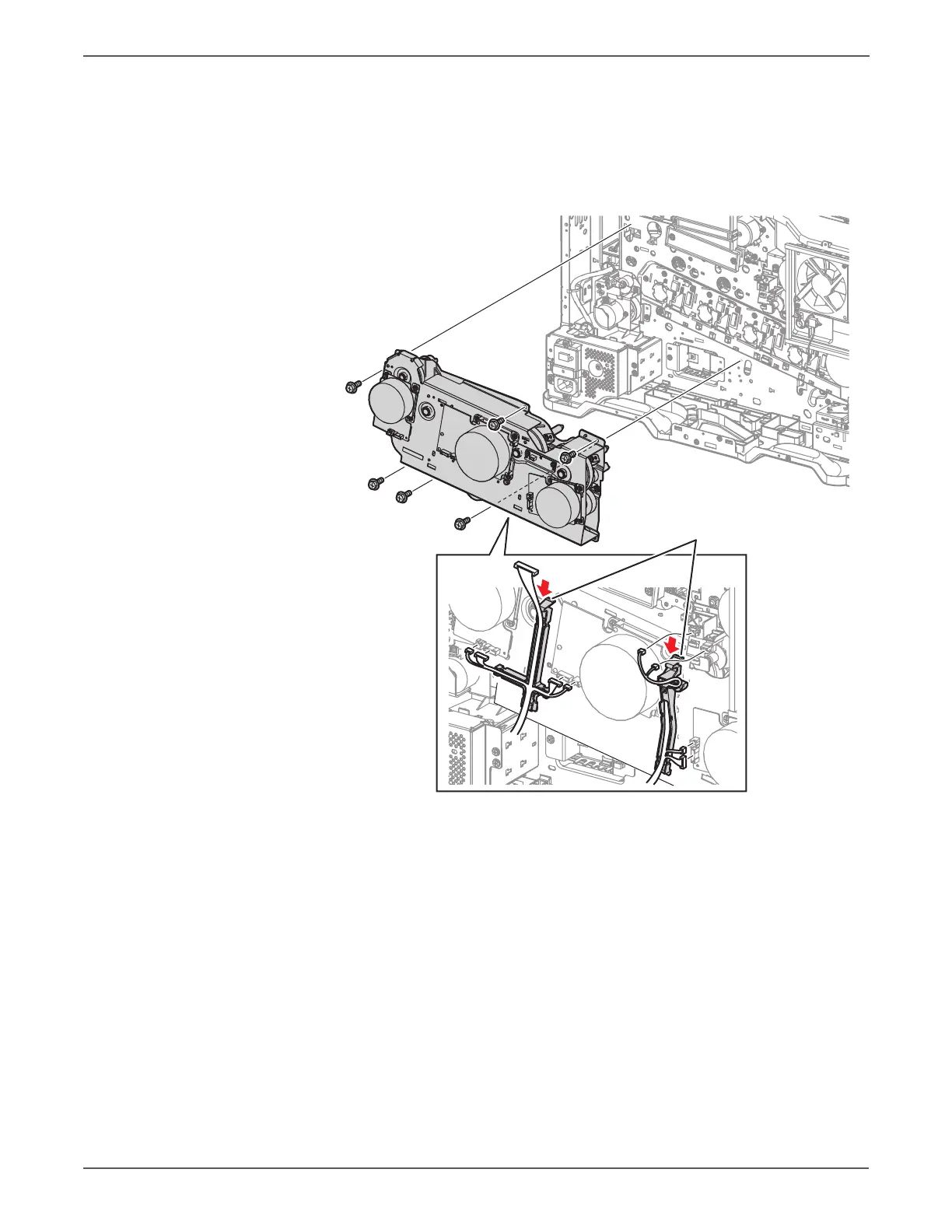

7. Remove 6 screws (silver, 6mm) that secure the Drum/ Deve Drive Assembly
and remove the Drum/ Deve Drive Assembly.
When placing the Drum/ Deve Drive Assembly on the floor, place it with its
Motor section facing downwards.
Be sure to align the Alignment Pin with the hole on the Drum/ Deve Drive
Assembly to seat the Drive Assembly in the correct position.
To Next Page
