8-24 Phaser 7500 Printer Service Manual
Service Parts Disassembly
5. Disconnect the connector to the rear connector of the Registration Clutch.
6. Release the 2 Cable Holders that secure the LPH Cable Assembly to the Frame.
7. Release the 3 clamps that secure the LPH Cable Assembly to the Frame.
8. Remove the LPH Cable Assembly from the Cable Holders.
9. Release the latches on the Cable Supports and remove the Cable Supports.

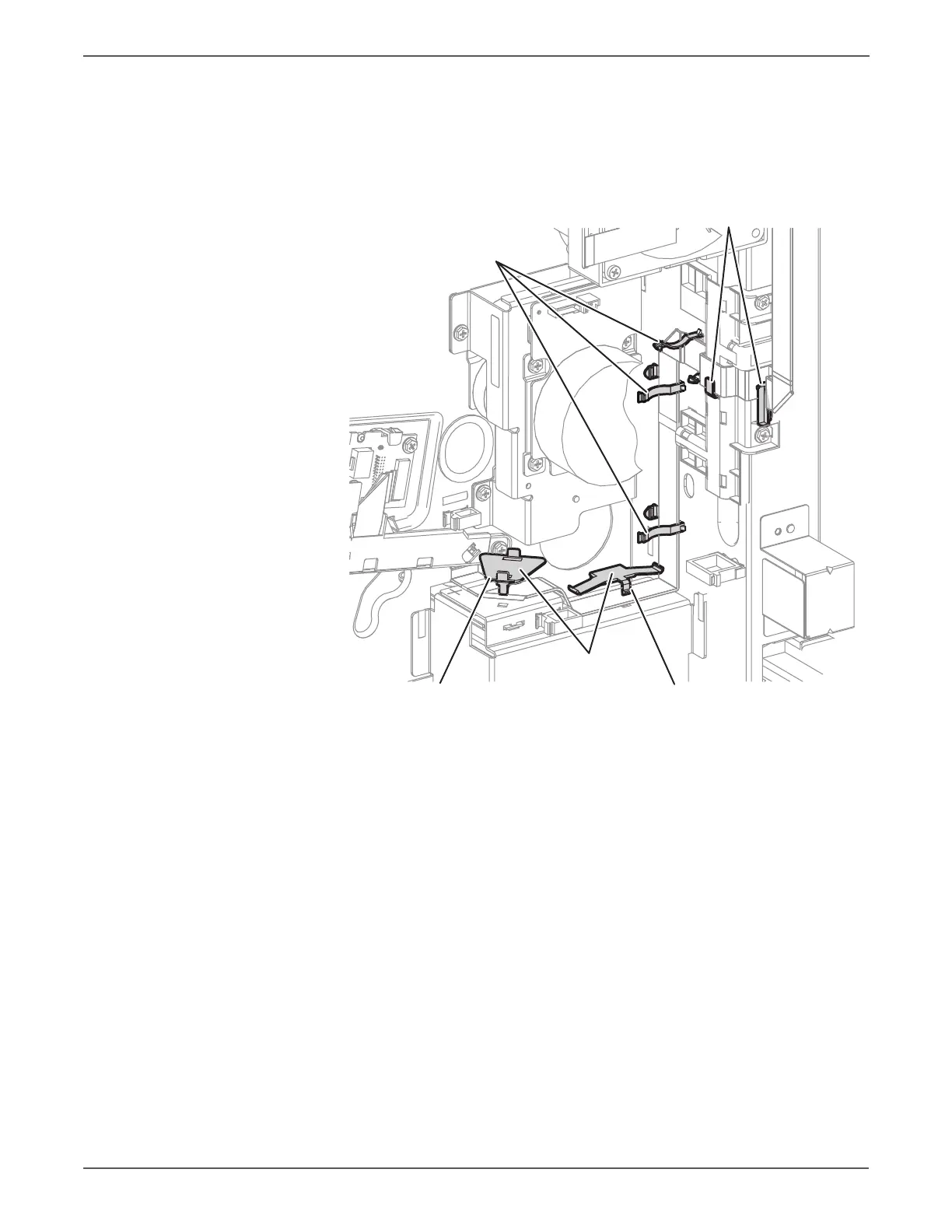

s7500-079
Cable Support
Release the latch from the rear and push the
Cable Support toward the front to remove it.
Push the latch toward the back
to release the Cable Support.
Cable Clamp
Cable Holder
