Phaser 7500 Printer Service Manual 8-25
Service Parts Disassembly
10. Disconnect the cables from the 4 connectors that connect the LPH Cable
Assembly.
11. Remove 2 screws (silver, 6mm) that secure the Cable Holder of the LPH Cable
Assembly and remove the LPH Cable Assembly.
12. Remove the Cable Guide from the LPH Cable Assembly.

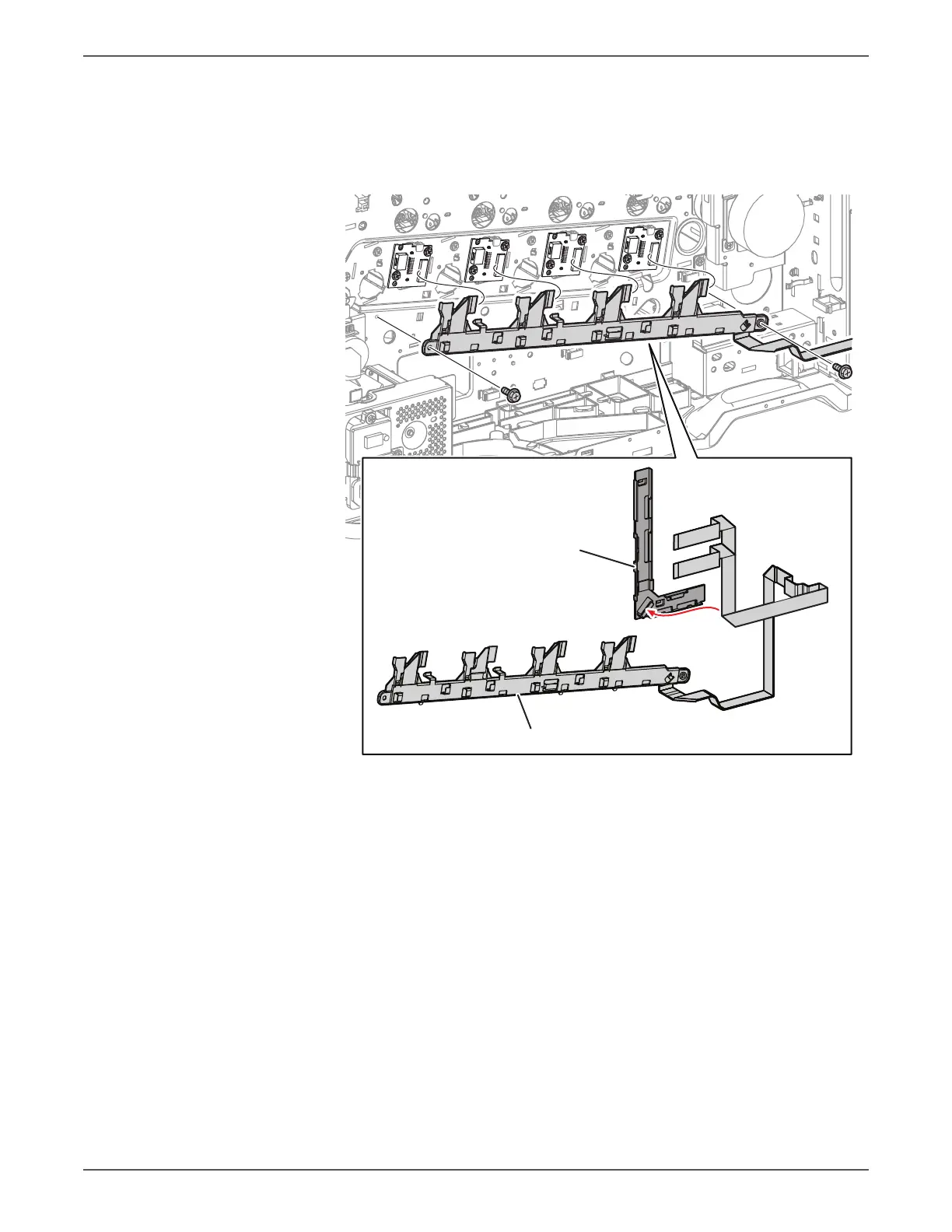

s7500-080
LED Print Head Cable Assembly
Cable Guide
To Next Page
