Xerox PHASER 7500 Service Manual

8-164 Phaser 7500 Printer Service Manual
Service Parts Disassembly
4. Disconnect the wiring harness connector that is connected to the Duplex
Motor.
Note
If only the Duplex Motor or only the Fan is replaced, step 5 can be omitted.
Note
Note that the Idle Gear (13T/46T) will drop in the following step 5.
5. Remove 2 screws (silver, Tapped, 8mm) that secure the Gear Assembly to the
Duplex Assembly and remove the Gear Assembly together with the Duplex
Motor.
6. Remove the E-ring that secures the Fan to the Duplex Motor and remove the
Fan.
7. Remove 2 screws (silver, 6mm) that secure the Duplex Motor to the Gear
Assembly.
8. Remove the Duplex Motor from the Gear Assembly.

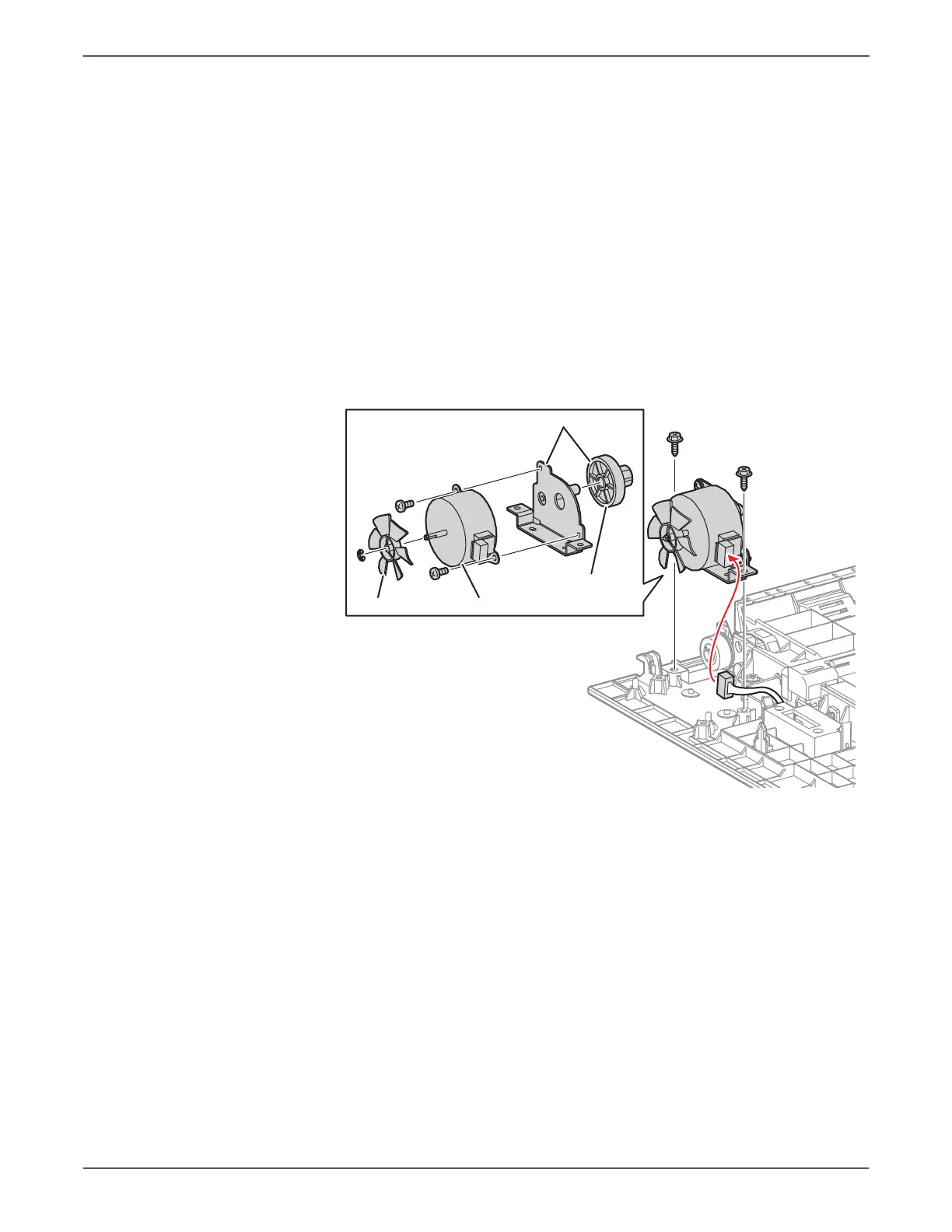

s7500-224
Duplex Motor
Gear Assembly
Note:
Idle Gear (13T/46T)
Fan

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
