Phaser 7500 Printer Service Manual 8-47
Service Parts Disassembly
5. Pull the joint section between the Developer Housing Assembly (C/M/K) and
the Dispenser Pipe (C/M/K) towards you and raise it up.
For Y Dispenser Pipe - rotate CCW approximately 30°.

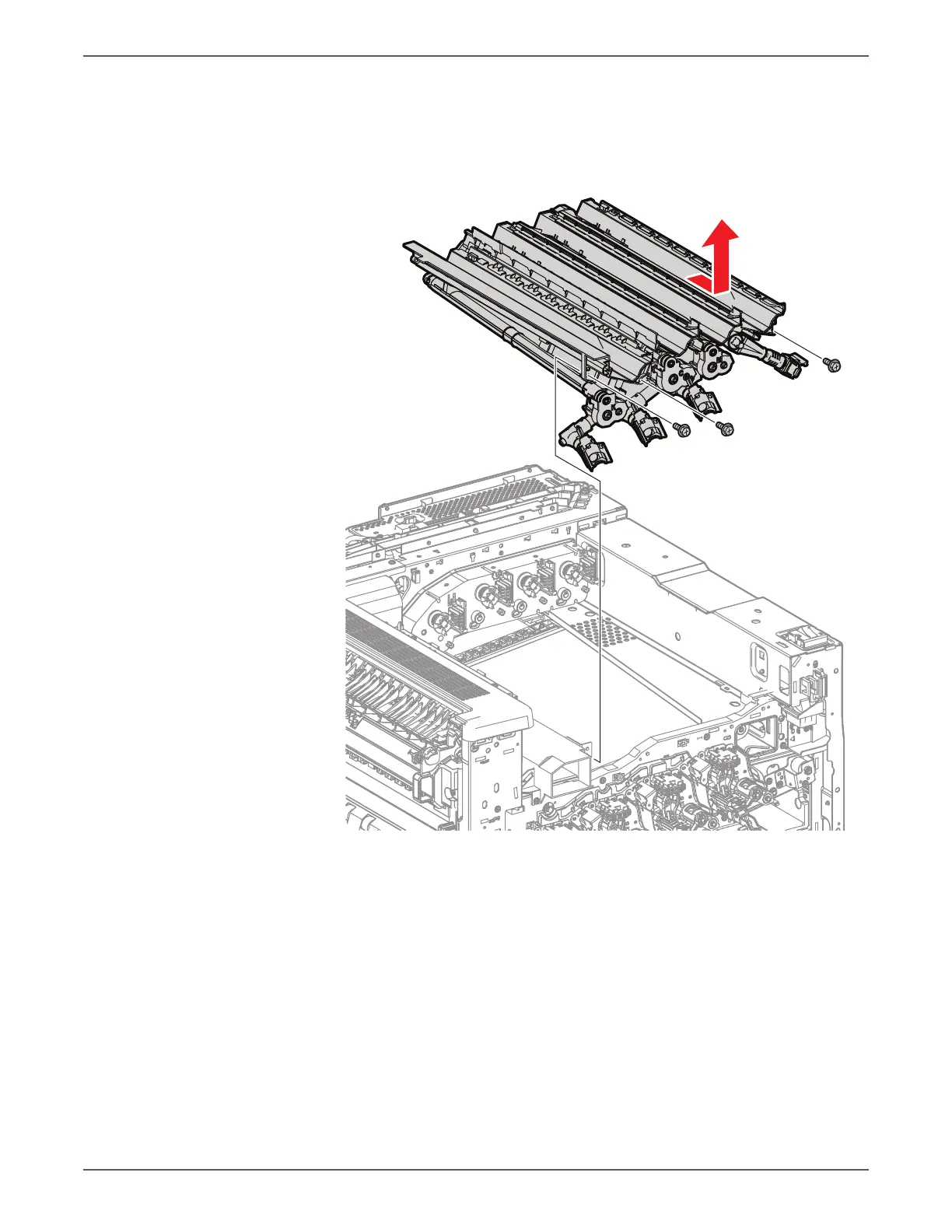

6. Remove 3 screws (silver, 6mm) that secure the Dispenser Pipe Assembly (C/M/
Y/K) and remove the Dispenser Pipe Assembly (C/M/Y/K).
