Phaser 7500 Printer Service Manual 5-17
Print-Quality Troubleshooting
90 Degree Grid
The 90 Degree Grid prints a square grid over the complete sheet of paper. The
square should be uniform and the vertical and horizontal lines should be straight
and of uniform thickness, if not, the problem should be diagnosed and corrected.
All colors should align within < 125 μm.

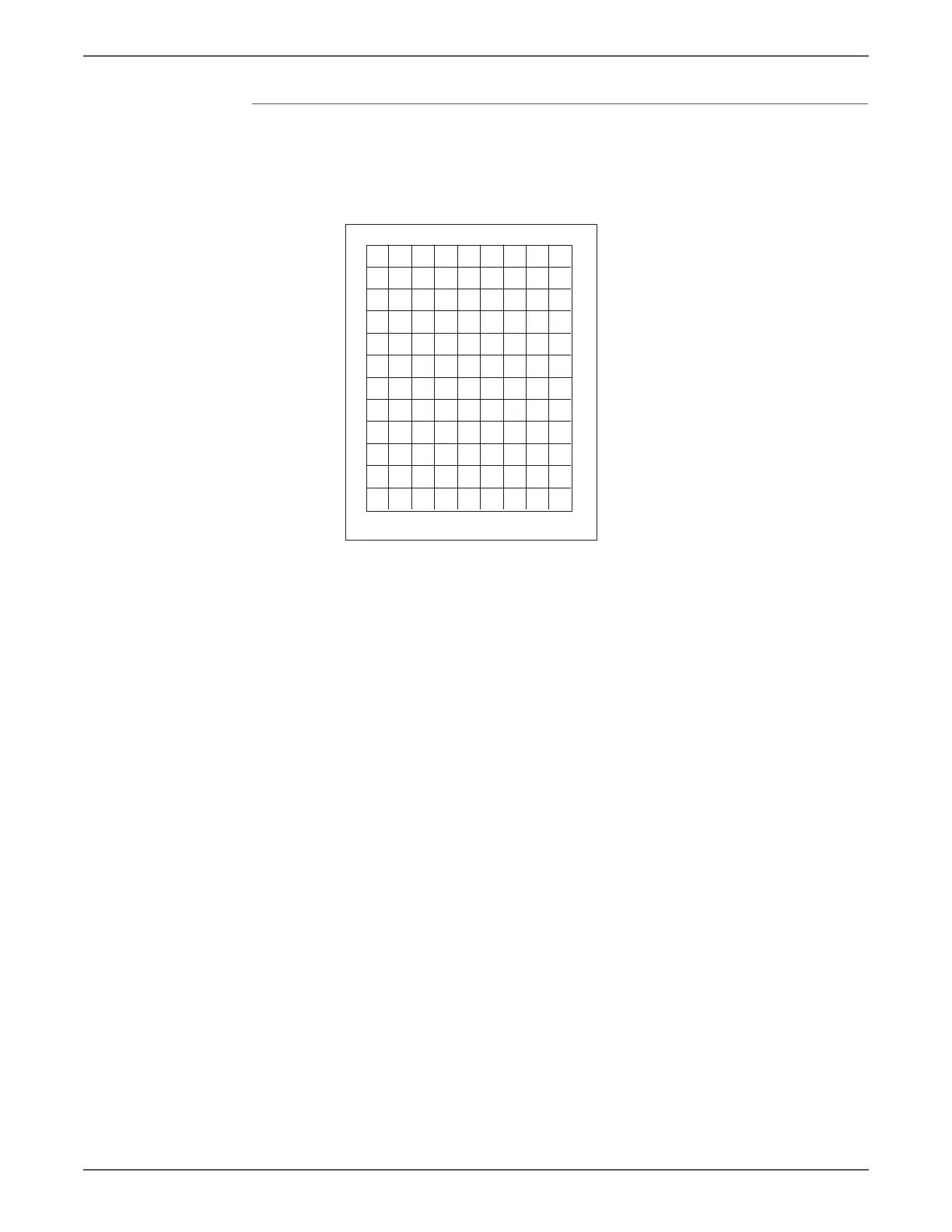

Test Grid

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
