Xerox PHASER 7500 Service Manual

1-24 Phaser 7500 Printer Service Manual
General Information

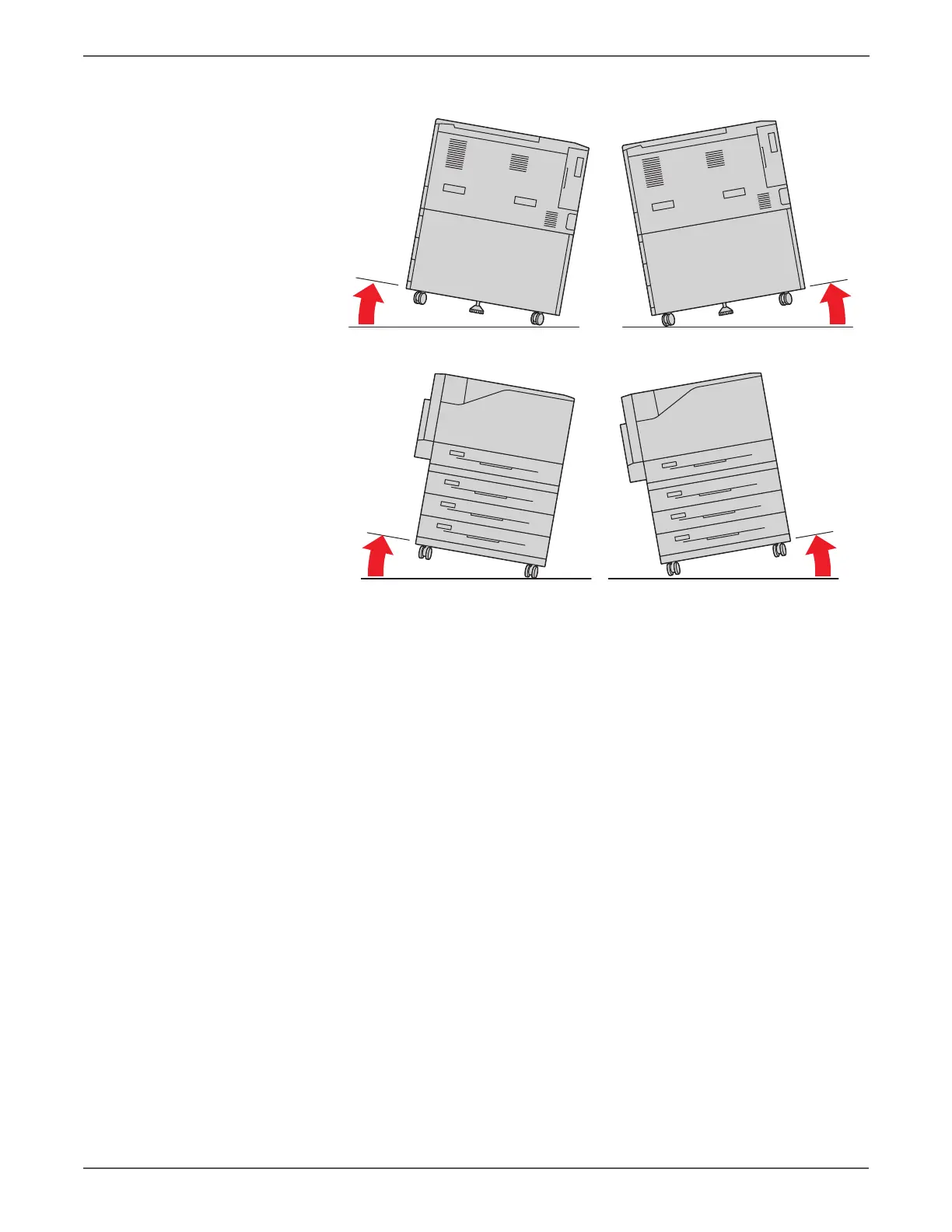

3. The printer must not be tipped or tilted more than 10° angle.
Failure to adhere to the specified mounting specifications will void all guarantees
of print-quality and/or performance. Known problems that can occur as a result of
exceeding the mounting surface specifications are:
• Color-to-Color mis-registration, primarily in the horizontal direction.
• A smear or line of toner approximately 40 mm from the trailing edge of the
print.
10° 10°
10°10°
s7500-405

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
