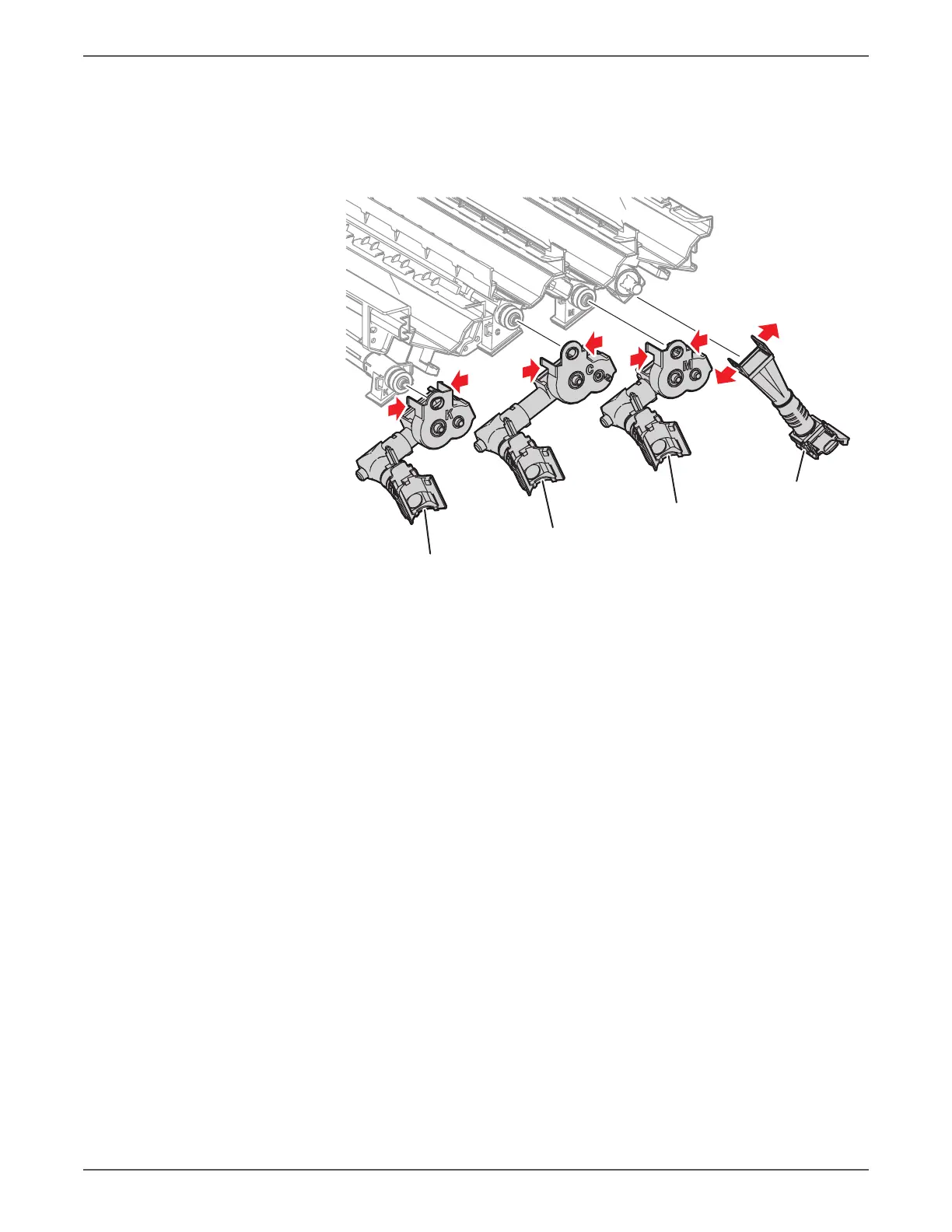

6. Release the hooks of the Dispenser Pipe (Y/M/C/K) and remove the Dispenser
Pipe (Y/M/C/K).
Note
The Yellow Dispenser Pipe has a longer wire hanging down into the tube.
s7500-107
Dispenser Pipe (K)
Dispenser Pipe (C)
Dispenser Pipe (M)
Dispenser Pipe (Y)
