Phaser 7500 Printer Service Manual 8-187

Service Parts Disassembly

Replacement Note

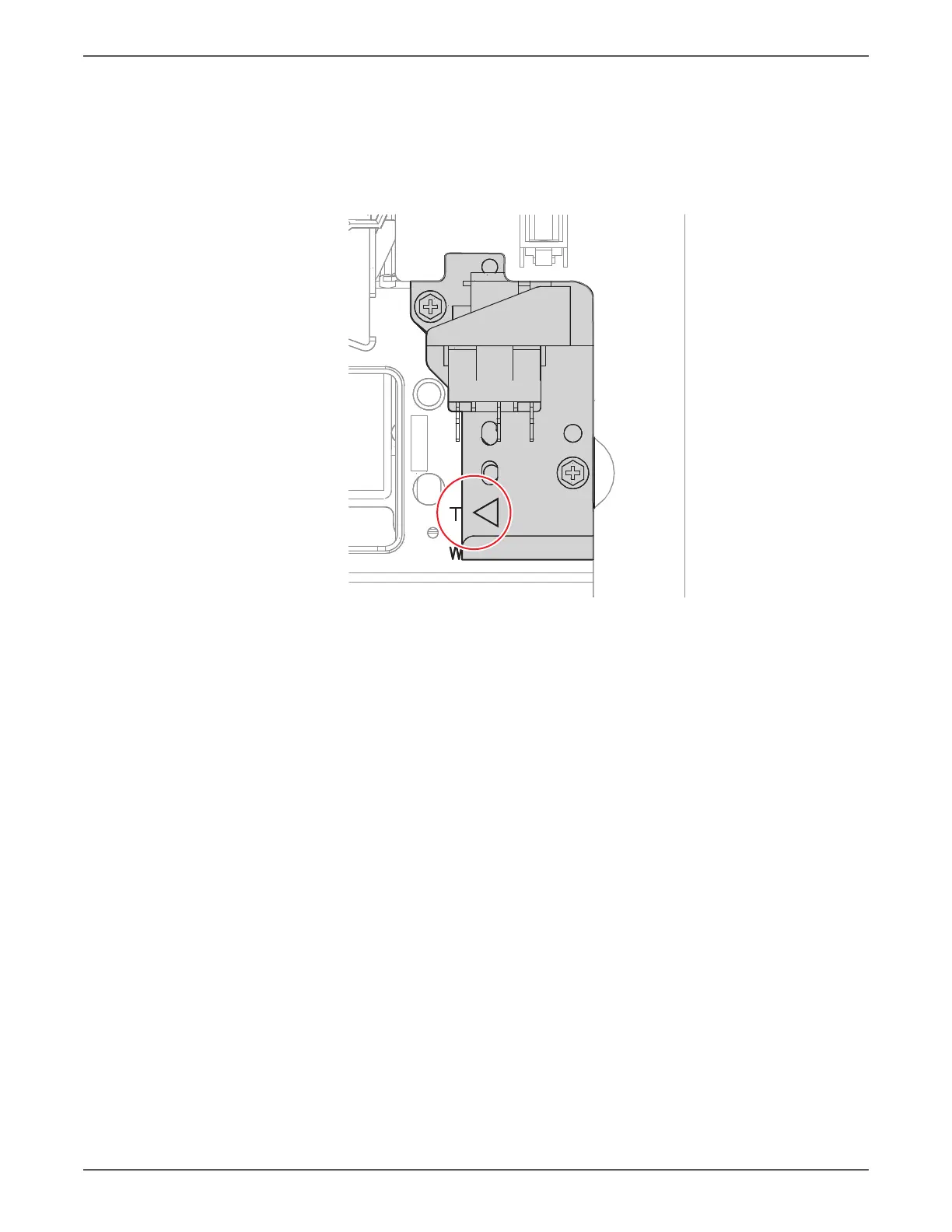

When installing the Main Power Switch Chassis Assembly, align the triangular

mark of the Main Power Switch Chassis Assembly to the "T" mark on the

Frame.

Note

s7500-469
