EDIUS — User Reference Guide 133
Application Settings

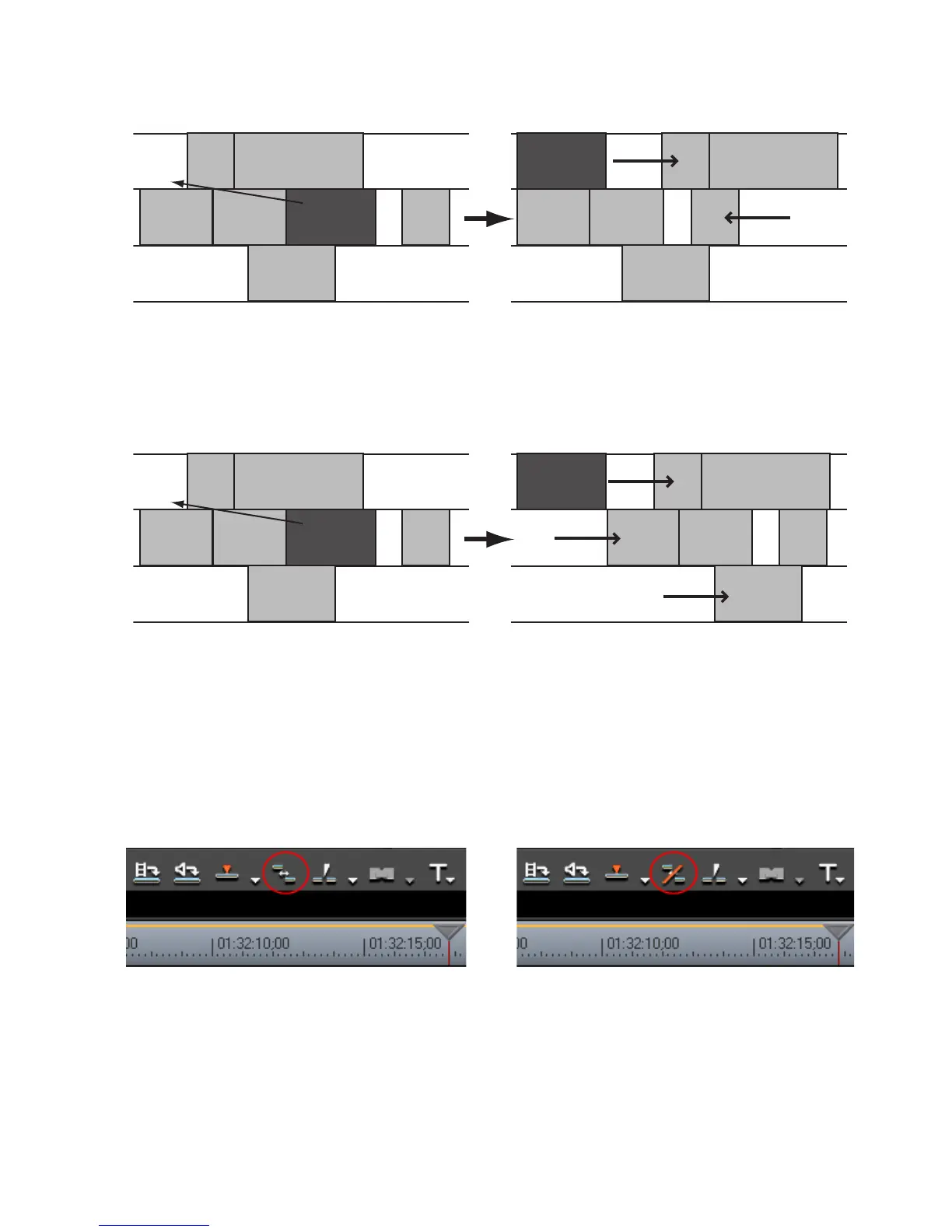

Figure 121. Ripple Mode On/Sync Mode Off/Insert Mode Enabled
Figure 122 represents the movement of clips in various tracks on the Time-
line when both ripple mode and sync mode are turned on with insert mode
also enabled.
Figure 122. Ripple Mode On/Sync Mode On/Insert Mode Enabled
Ripple Mode may also be toggled on and off by one of the following proce-
dures:
• Click the
Ripple Mode button on the Timeline window tool bar. Each click
toggles ripple mode on or off. When ripple mode is off there is a slash
through the ripple mode icon. When ripple mode is on, the slash is
removed. See Figure 123 for details.
Figure 123. Ripple Mode Toggle Button
• Select Mode>Ripple Mode in the Preview window. As in the example
above, the icon next to the Ripple Mode menu selection has a slash
through it when ripple mode is disabled. The slash is not present when
ripple mode is enabled.
