While in the System Settings dialog, clicking the Default* button returns all
settings marked with an “*” to their default values.
Analog Output Settings
1. If necessary, click the “+” to expand the HXQ-E1 Settings tree.
2. Select “Analog Output Settings” from the HXQ-E1 Settings tree. The
dialog in Figure 880 appears.

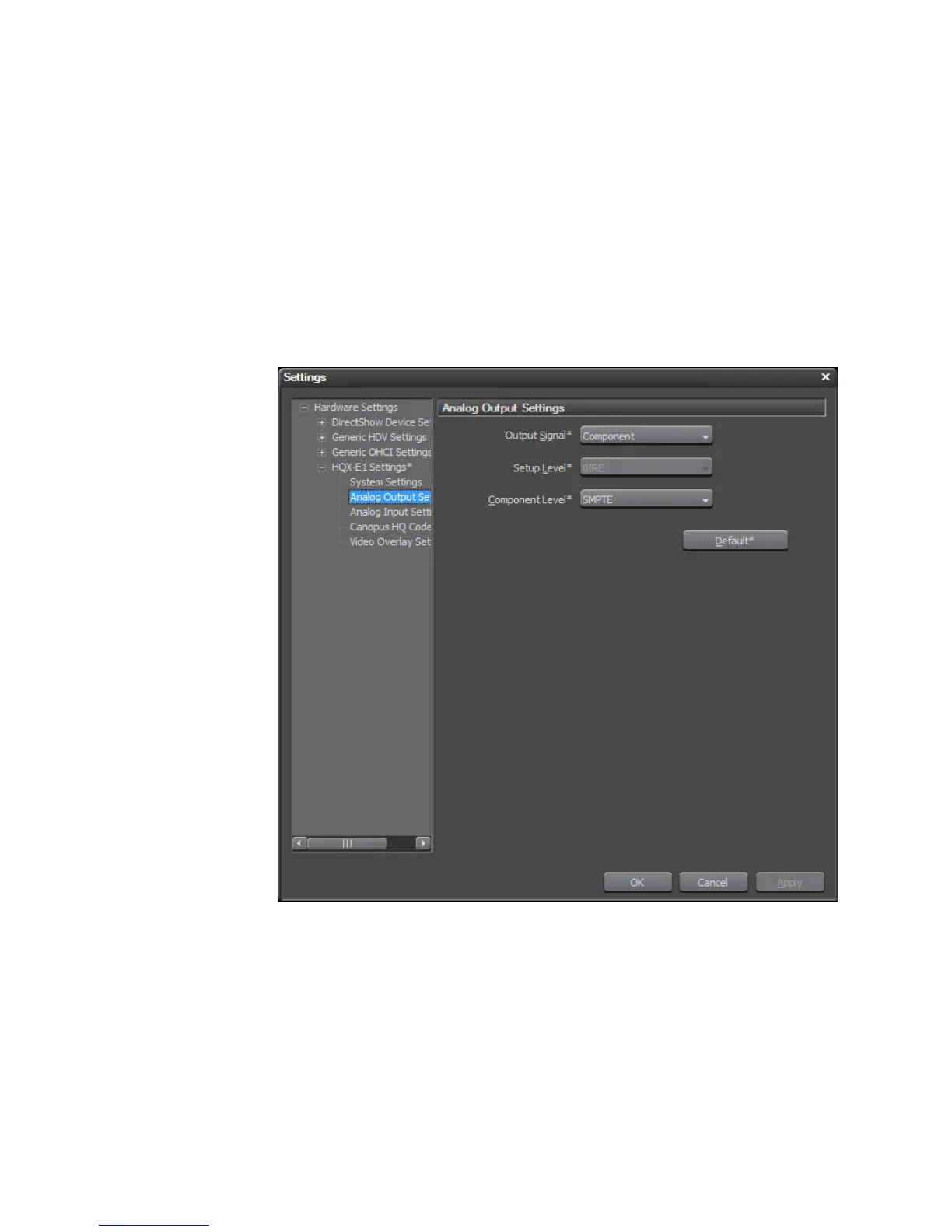

Figure 880. HXQ-E1Analog Output Settings Dialog
3. From the “Output Signal” drop-down list, select the desired output
signal type.
4. Select the desired setup level (black level) from the “Setup Level” drop-
down list.
Note In analog video, 0 IRE is commonly used in Japan and 7.5 IRE is commonly
used in North America.
