EDIUS — User Reference Guide 725
EDIUS NX/NX Express (NHX) Settings
General I/O Settings
1. If necessary, click the “+” to expand the NHX-E1/NHX-E2 Settings tree.
2. Select “General I/O Settings” from the NHX-E1/NHX-E2 Settings tree.
The dialog in Figure 872 appears.

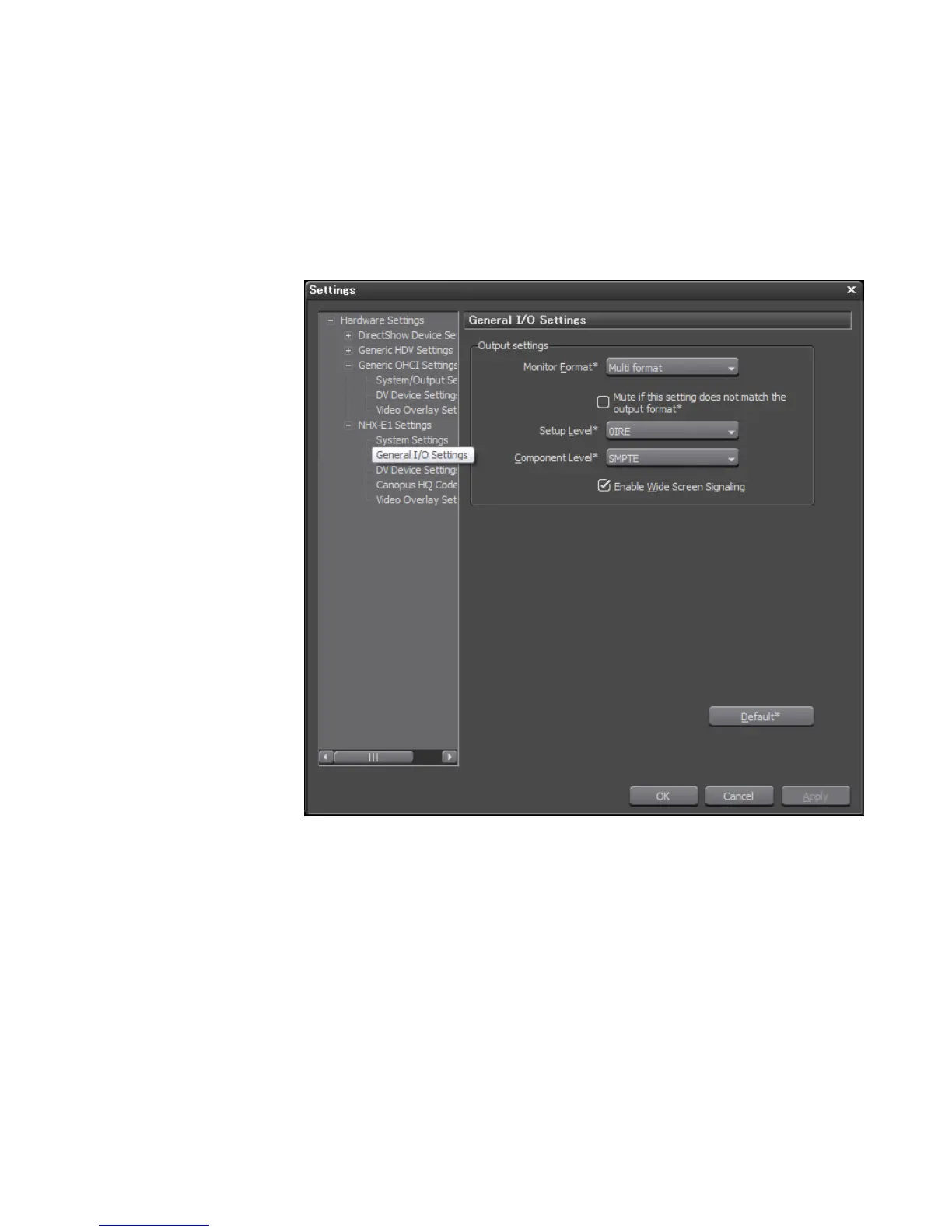

Figure 872. NHX-E1/NHX-E2 General I/O Dialog
3. From the “Monitor Format” drop-down list, select the appropriate
monitor format. Choices are: “Multi format” for a monitor that can
automatically recognize SD and HD input sources and switch
accordingly; “HD” for monitors with HD input only and; “SD” for
monitors with SD inputs only.
4. Select the “Mute if this setting does not match the output format”
option if you wish to mute output when the monitor format is different
than the format selected on the Timeline.
5. Select the desired setup level (black level) for NTSC format.
