GRASS VALLEY EDIUS VERSION 5.1 - Applying Transparency to Text

EDIUS — User Reference Guide 601
Titles
3. Click the color palette (see Figure 717).
The ColorSelect dialog shown in Figure 718 appears.

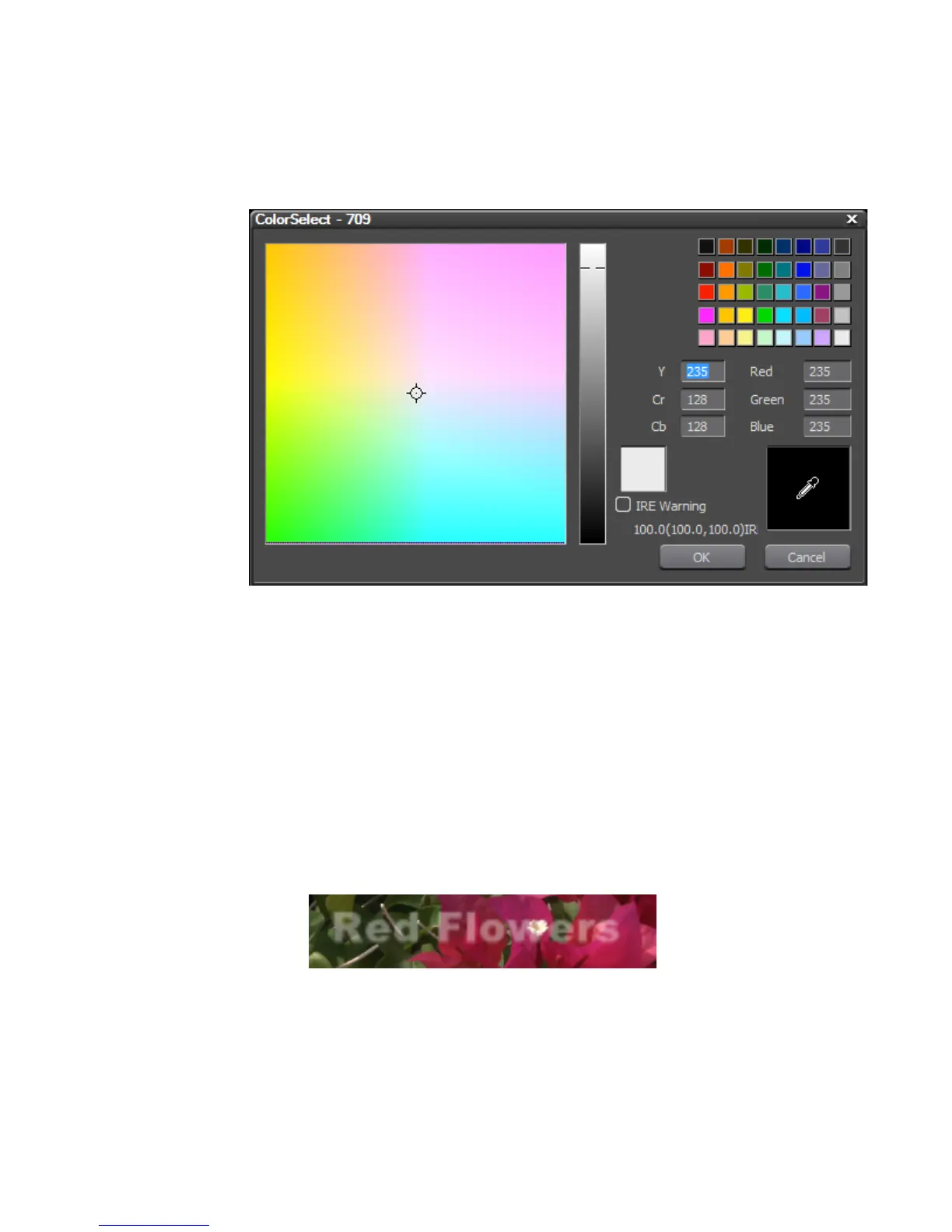

Figure 718. QuickTitler ColorSelect Dialog
4. Select the desired text color or enter the desired numeric values to select
a text color.
Note If the ‘Texture File” option is checked, the color change is not applied to the
text.
Applying Transparency to Text
Applying transparency to text objects (see Figure 719 for an example)
allows the background to be visible through the text.
Figure 719. QuickTitler Text Transparency
To apply transparency to an object, do the following:
1. Select the text object to which to apply transparency.
2. If the Fill Color tree is not already expanded, click the “+” to expand the
Fill Color tree. See Figure 720.
