EDIUS — User Reference Guide 735
EDIUS SD/HD (RX-E1) Settings
5. Click the OK button to save the settings and close the Downconverter
Settings dialog.
While in the Downconverter dialog, clicking the
Default* button returns all
settings marked with an “*” to their default values.
Upconverter Settings (HD Only)
1. If necessary, click the “+” to expand the RX-E1 Settings tree.
2. Select “Upconverter Settings” from the RX-E1 Settings tree. The dialog
in Figure 878 appears.

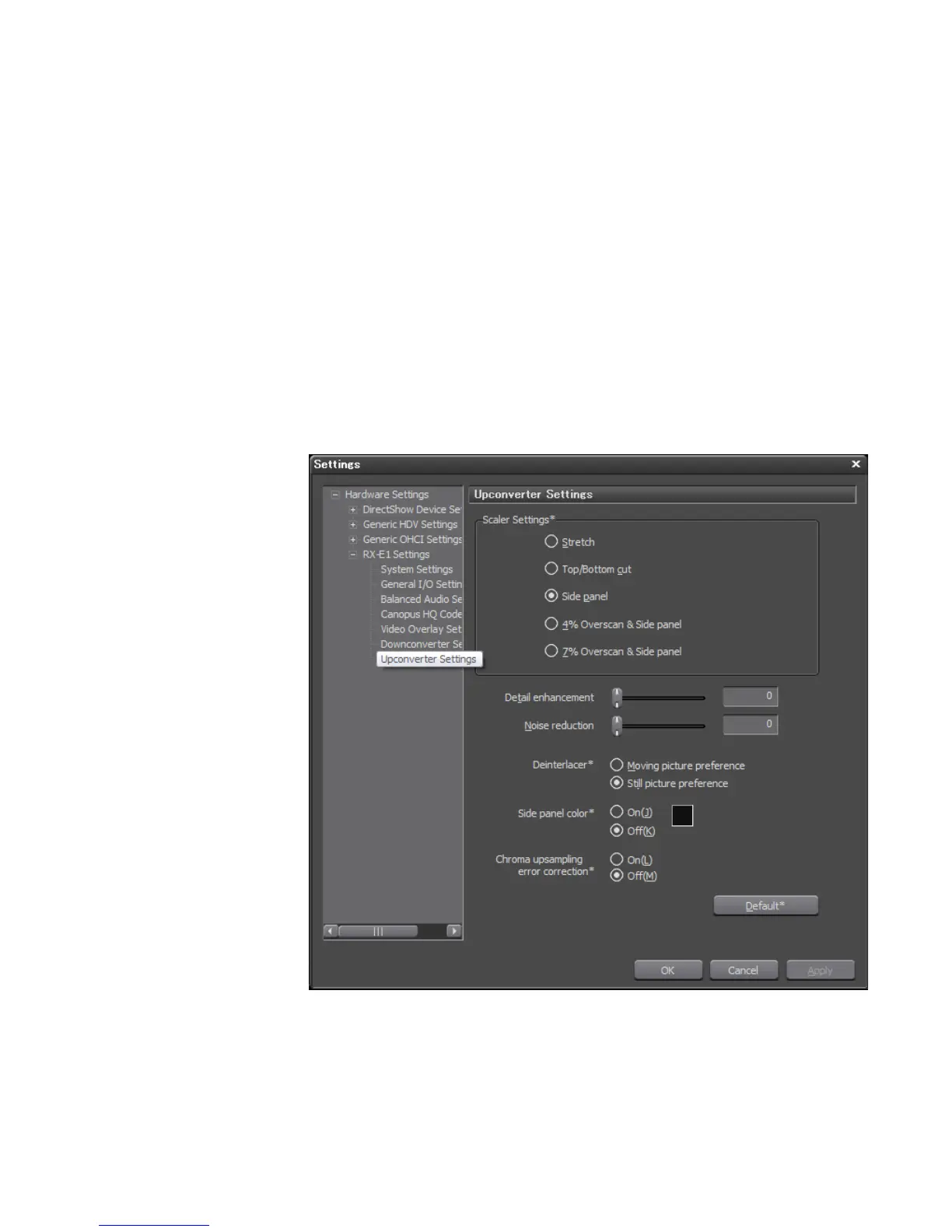

Figure 878. RX-E1 Upconverter Settings Dialog
3. Select the desired method for upconverting and scaling SD content to
HD. The scaler selections are Stretch, Top/Bottom cut, Side panel, 4%
Overscan and Side panel, and 7% Overscan and Side Panel.
