EDIUS — User Reference Guide 585

Verifying Color Data for TV Display

Video displayed on a PC monitor may not display with the same detail on

a television screen if the TV monitor has a lower luminance range than the

PC monitor. To correct this problem, the video signal must be adjusted

before it is output for viewing on a television.

To properly adjust the video signal, it must be measured with a Vector

Scope/Waveform Analyzer. The Vector Scope adjusts color balance and the

Waveform Analyzer adjusts the brightness.

To adjust the video display with the Vector Scope/Waveform, do the fol-

lowing:

Note Displaying the Vector Scope/Waveform increases the CPU load. Display it

only when necessary

1. Move the Timeline cursor to the position at which you wish to check the

video display properties.

2. Click the Toggle vector scope/waveform display button on the Timeline

(highlighted in blue in Figure 698).

Note An alternative method is to select View>Vector Scope/WaveForm from the

Preview window menu bar.

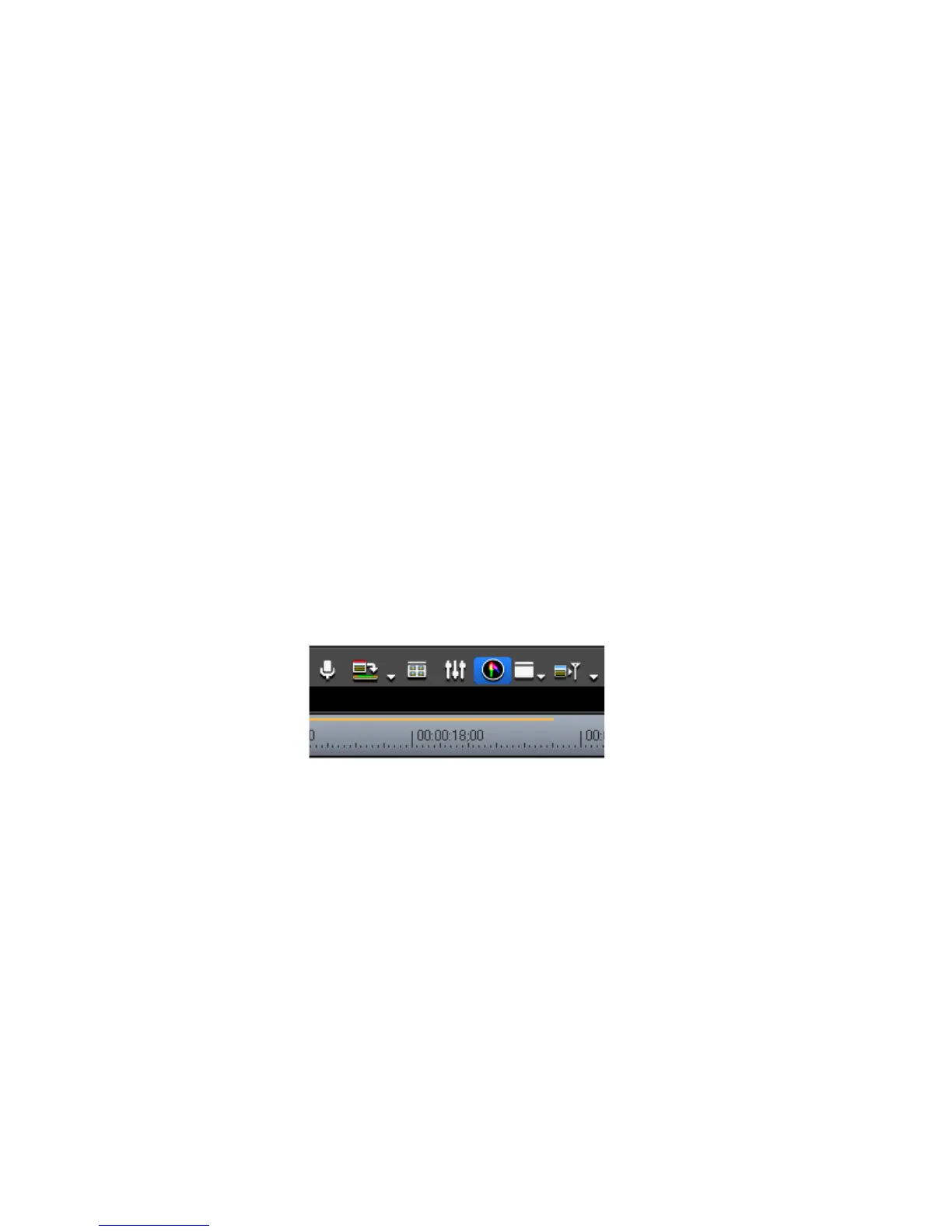

Figure 698. Timeline Toggle Vector Scope/Waveform Display Button

The Vector Scope/Waveform Dialog appears as illustrated in Figure 699.

Note Figure 699 shows the measuring of a white color matte clip (see Create a

Color Matte Clip on page 259). Note that it measures IRE100.
