190 EDIUS — User Reference Guide
Section 2 — Application and Plug-In Settings

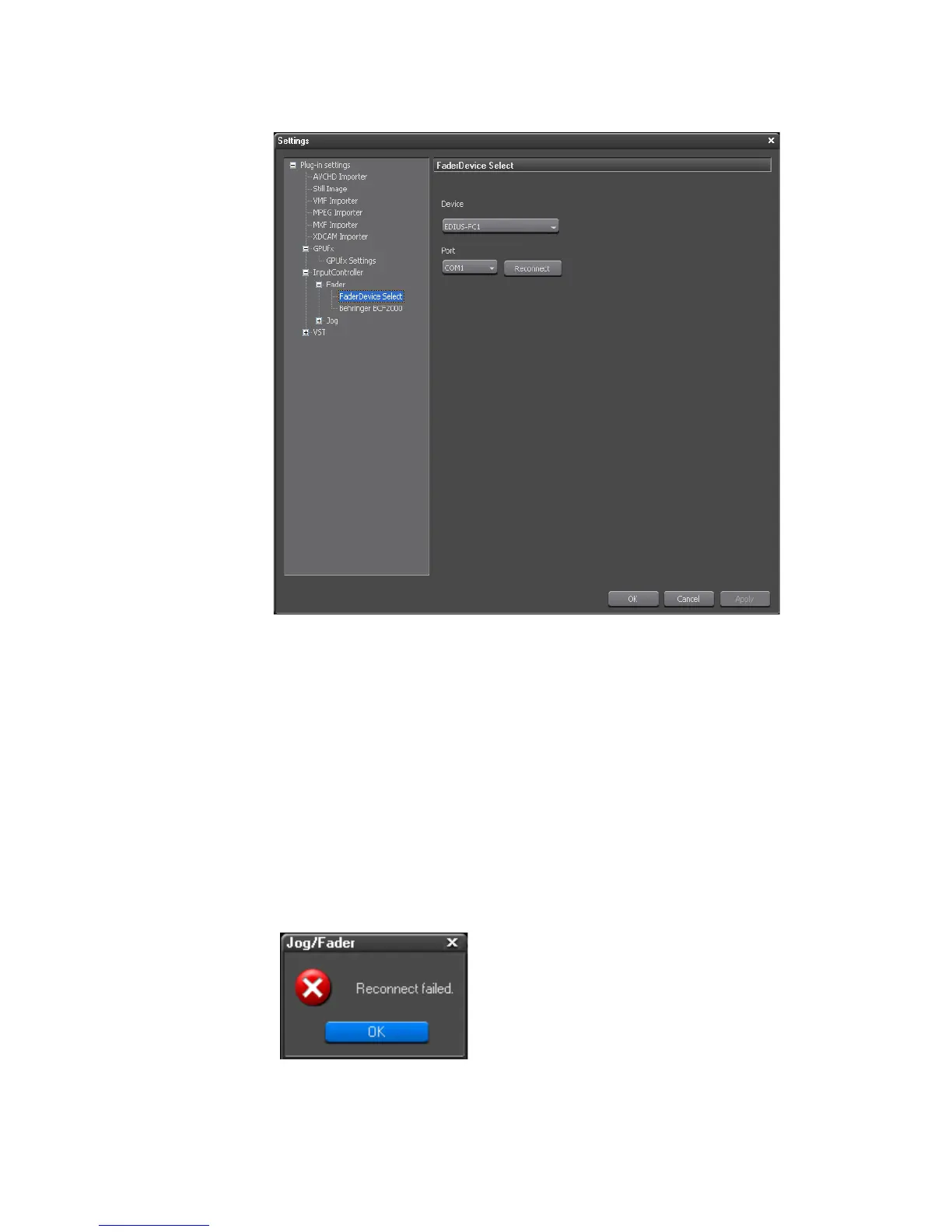

Figure 166. Fader Device Select
To specify a fader device for use with EDIUS, do the following:
1. Select the device from the Device drop-down list. Choices are Behringer
BCF2000 and EDIUS FC-1. If Behringer BCF2000 is selected see
Behringer BCF2000 below.
2. Select the port on which the device is connected to the EDIUS computer.
3. Click the Reconnect button to detect and connect to the device.
Note If the device is not found, the error dialog in Figure 167 appears. Check the
device and the port connection to make sure it is correct.
Figure 167. Jog/Fader Reconnect Failed
