194 EDIUS — User Reference Guide
Section 2 — Application and Plug-In Settings

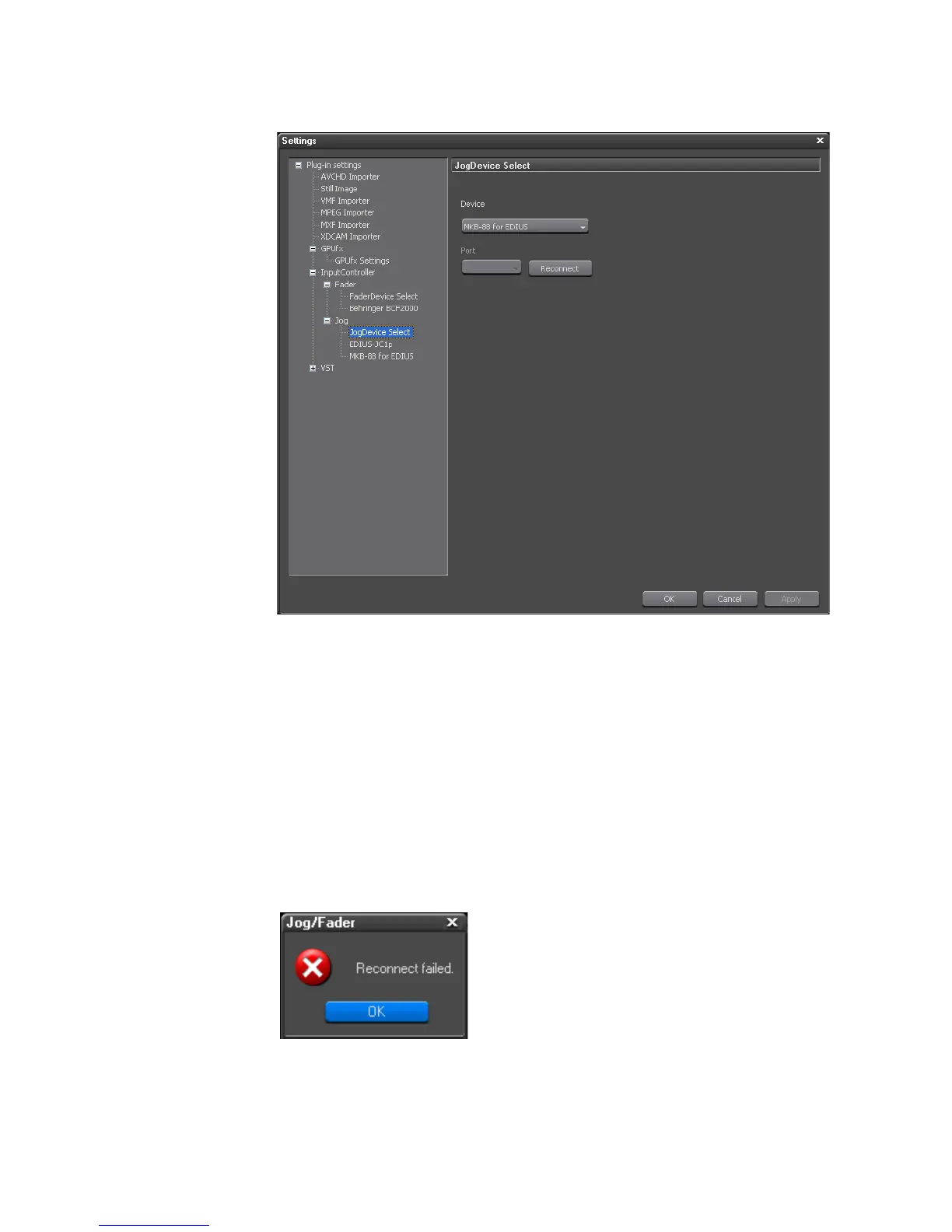

Figure 172. Jog Device Select
To specify a jog device for use with EDIUS, do the following:
1. Select the device from the Device drop-down list. Choices are EDIUS-
JC1p and MKB-88. S
2. Select the port on which the device is connected to the EDIUS computer.
3. Click the Reconnect button to detect and connect to the device.
Note If the device is not found, the error dialog in Figure 167 appears. Check the
device and the port connection to make sure it is correct.
Figure 173. Jog/Fader Reconnect Failed
