712 EDIUS — User Reference Guide
Appendix A — Hardware Settings

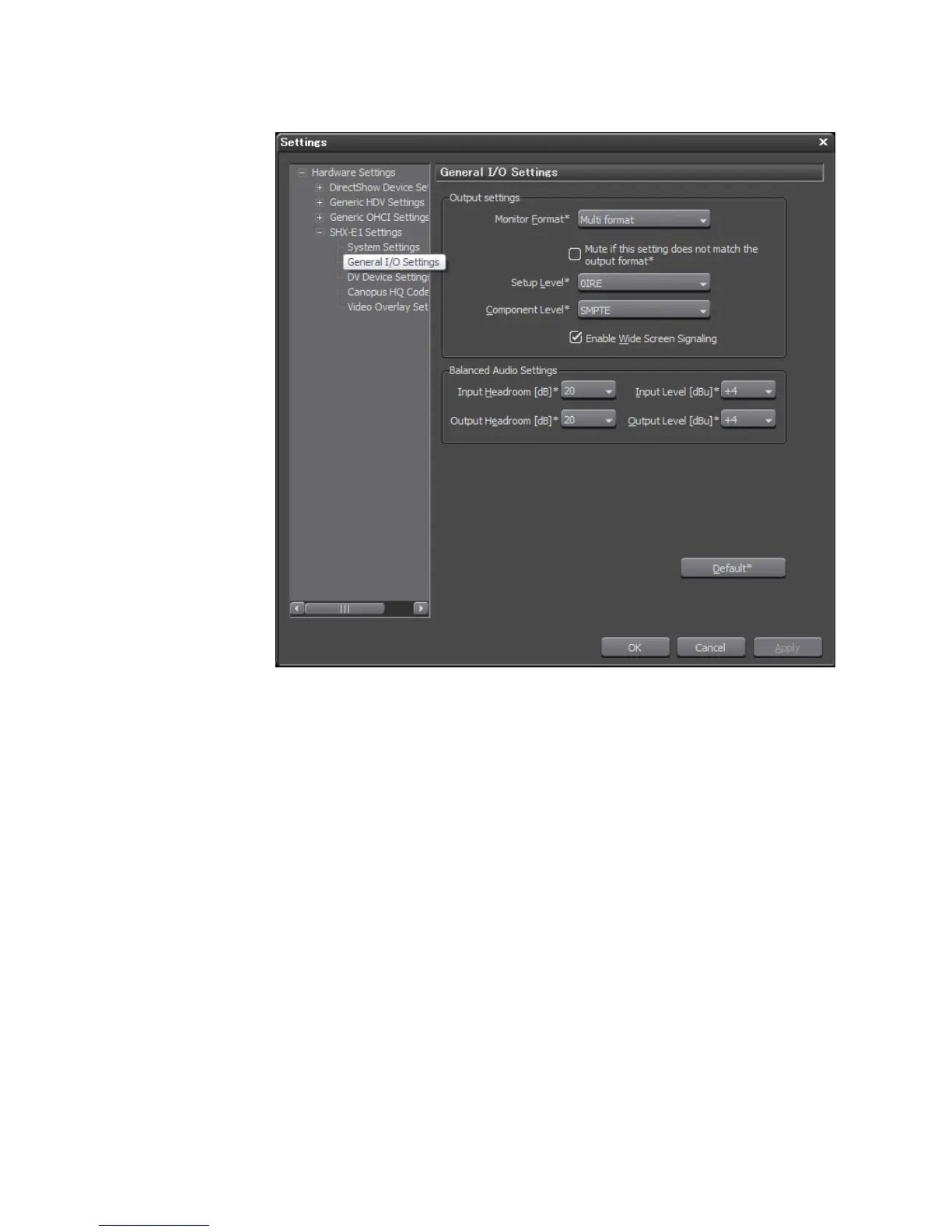

Figure 863. SHX-E1/SHX-E2 General I/O Dialog
Note If SHX-E2 is installed, the General I/O Settings screen will have additional set-
tings as explained below.
3. From the “Monitor Format” drop-down list, select the appropriate
monitor format. Choices are: “Multi format” for a monitor that can
automatically recognize SD and HD input sources and switch
accordingly; “HD” for monitors with HD input only and; “SD” for
monitors with SD inputs only.
4. Select the “Mute if this setting does not match the output format”
option if you wish to mute output when the monitor format is different
than the format selected on the Timeline.
5. Select the desired setup level (black level) for NTSC format.
Note 0 IRE is commonly used in Japan and 7.5 IRE is commonly used in North
America.
6. Select the desired NTSC Component level from the “Component
Level” drop-down list.
