EDIUS — User Reference Guide 731
EDIUS SD/HD (RX-E1) Settings

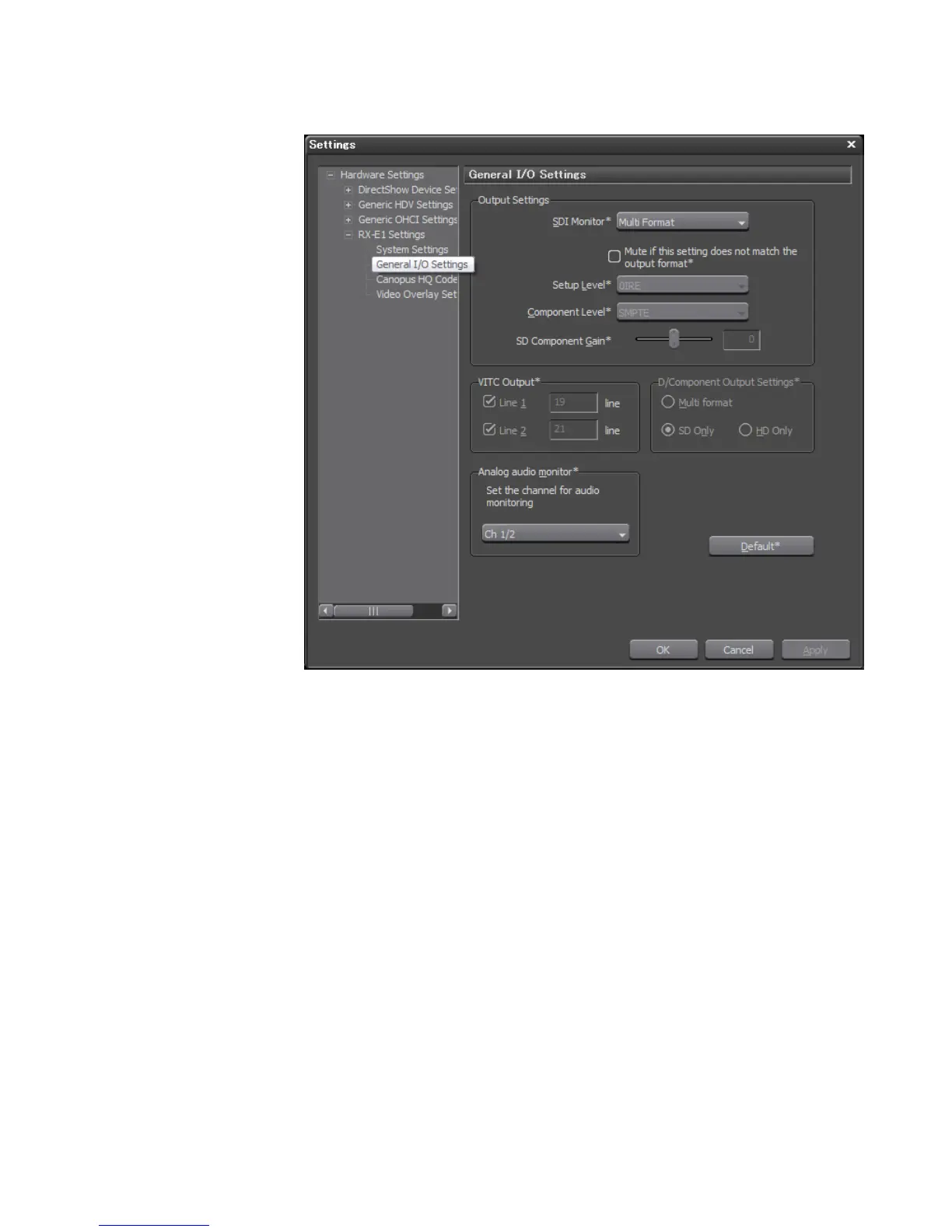

Figure 875. RX-E1 General I/O Settings Dialog
3. From the “SDI Monitor” drop-down list, select the appropriate monitor
format. Choices are: “Multi format” for a monitor that can
automatically recognize SD and HD input sources and switch
accordingly; “HD” for monitors with HD inputs only and; “SD” for
monitors with SD inputs only.
4. Select the “Mute if this setting does not match the output format”
option if you wish to mute output when the monitor format is different
than the format selected on the Timeline.
5. Select the desired setup level (black level) for NTSC format.
Note 0 IRE is commonly used in Japan and 7.5 IRE is commonly used in North
America.
6. Select the desired component level from the “Component Level” drop-
down list.
7. Set the desired SD component gain by moving the SD Component Gain
slider to the desired level.
