EDIUS — User Reference Guide 745
HDTHUNDER (HTX) Settings

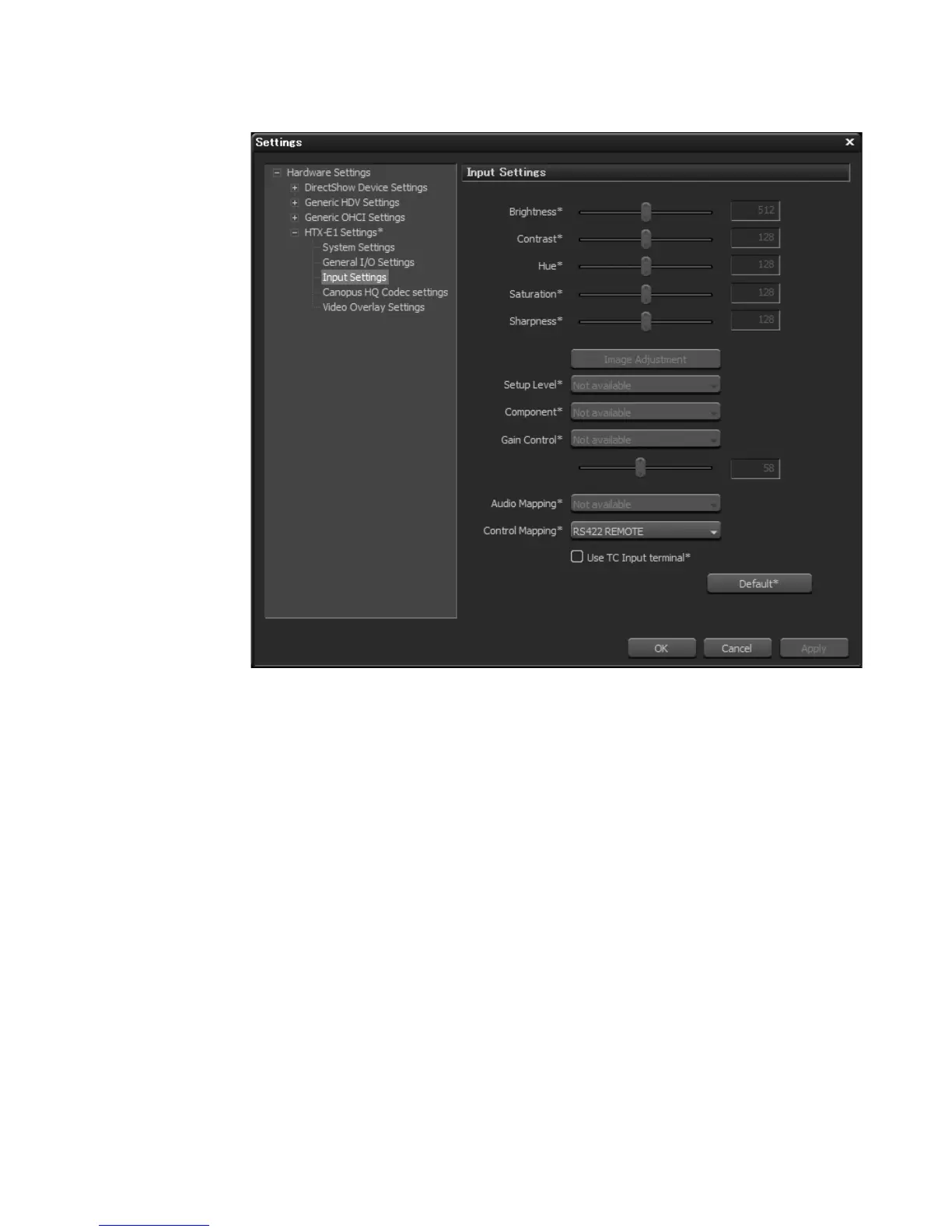

Figure 884. HTX-E1 Input Settings Dialog
3. Set the desired Brightness, Contrast, Hue, Saturation and Sharpness
levels by moving the related slider to adjust the value.
In the Image Adjustment settings, if available, do the following:
4. Select the desired setup level (black level) from the “Setup Level” drop-
down list.
5. Select the desired component level from the “Component Level” drop-
down list.
6. Adjust the Gain Control by moving the slider to select the desired
value.
7. If available, select the desired audio mapping from the Audio Mapping
drop-down list.
8. For control purposes, select the desired control mechanism from the
Control Mapping drop-down list.
9. If you wish to use the TC input terminal for control, select this option.
