EDIUS — User Reference Guide 759
Keyframeable 2D Picture-in-Picture

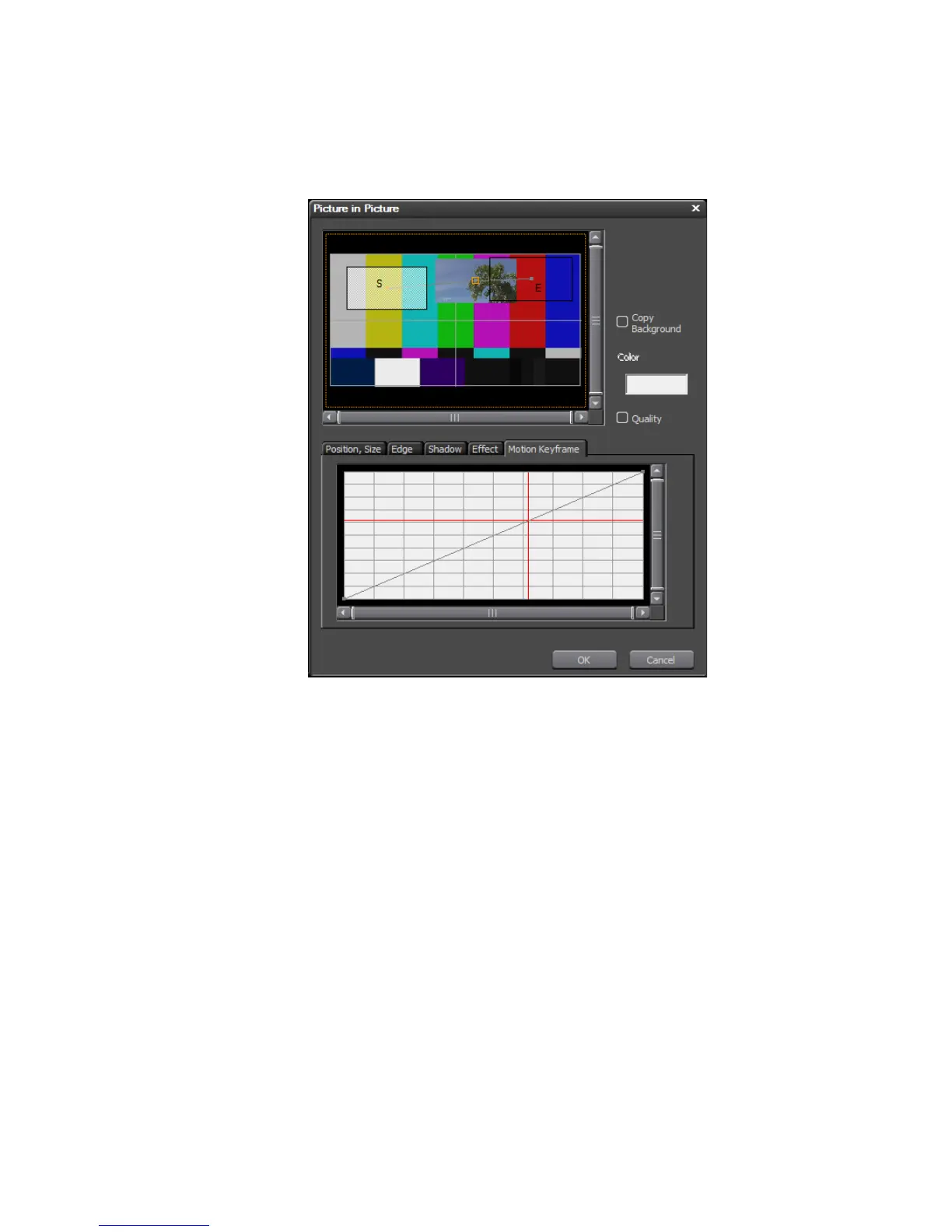

As shown in Figure 895, this is the point at which the center of the image is
at the intermediate keyframe position.
Figure 895. Keyframeable 2D PIP - Image at Intermediate Keyframe Position
16. Click somewhere on the graph other than the end points of the grey line
or the point where the red lines intersect. This will create a new node -
highlighted in orange - on the grey line.
17. Move the node until it touches the red horizontal line.
18. Move the Timeline cursor towards the point at which the new node
touches the red horizontal line.
Notice how the position of the PIP image moves towards the intermediate
keyframe position and meets it when the vertical and horizontal red lines
intersect at the orange square representing the new node.
The graph and preview window now appear similar to the example illus-
trated in Figure 896.
