Firmware Upgrade Instructions

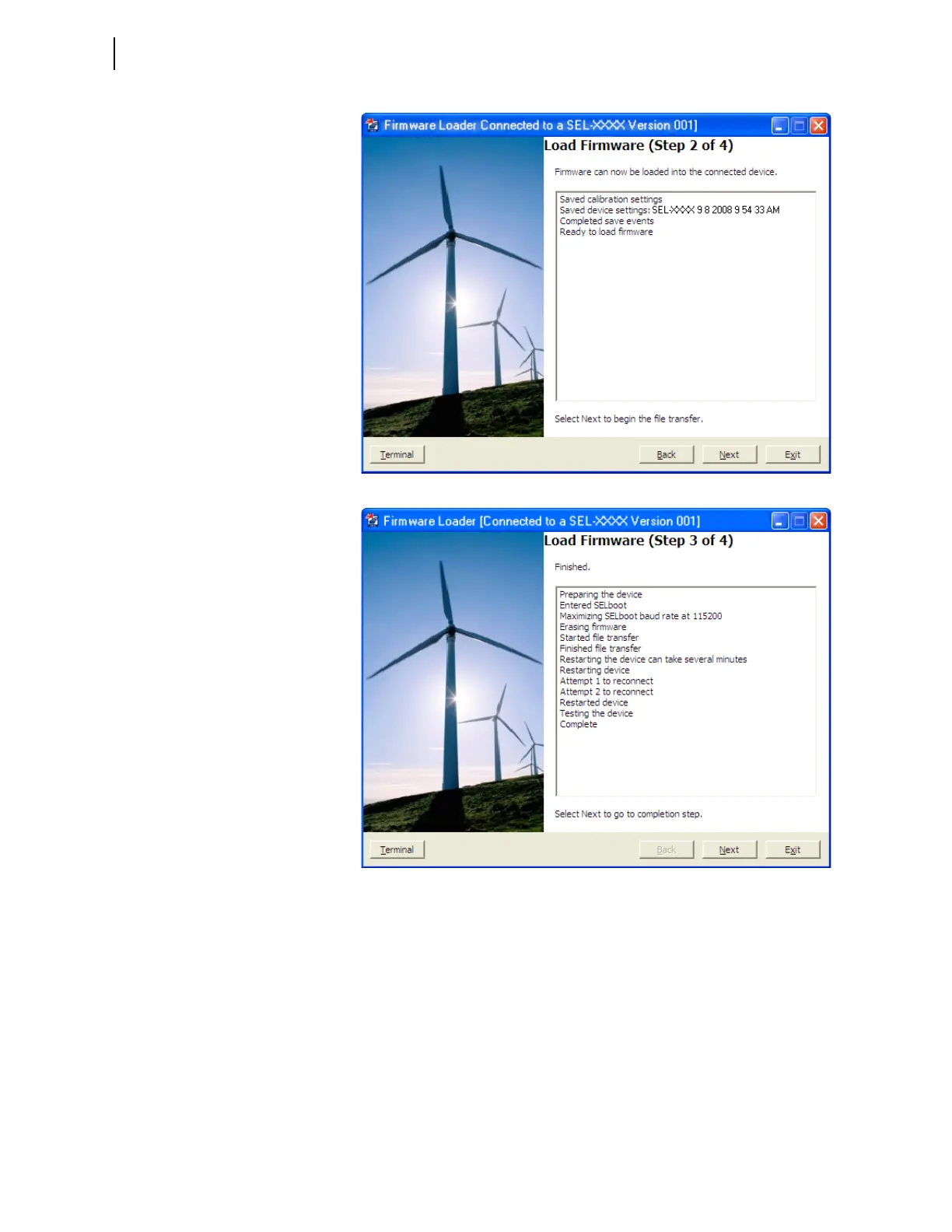

Upgrade Firmware Using QuickSet

Step 2. Transfer Firmware.

Click Next to begin the

firmware transfer.

Step 3. Load Firmware.

During this step, the device

is put in SEL

BOOT mode.

The transfer speed is

maximized and the

firmware transfer begins.
