Phaser 7500 Printer Service Manual 5-7
Print-Quality Troubleshooting
Color Test Pages

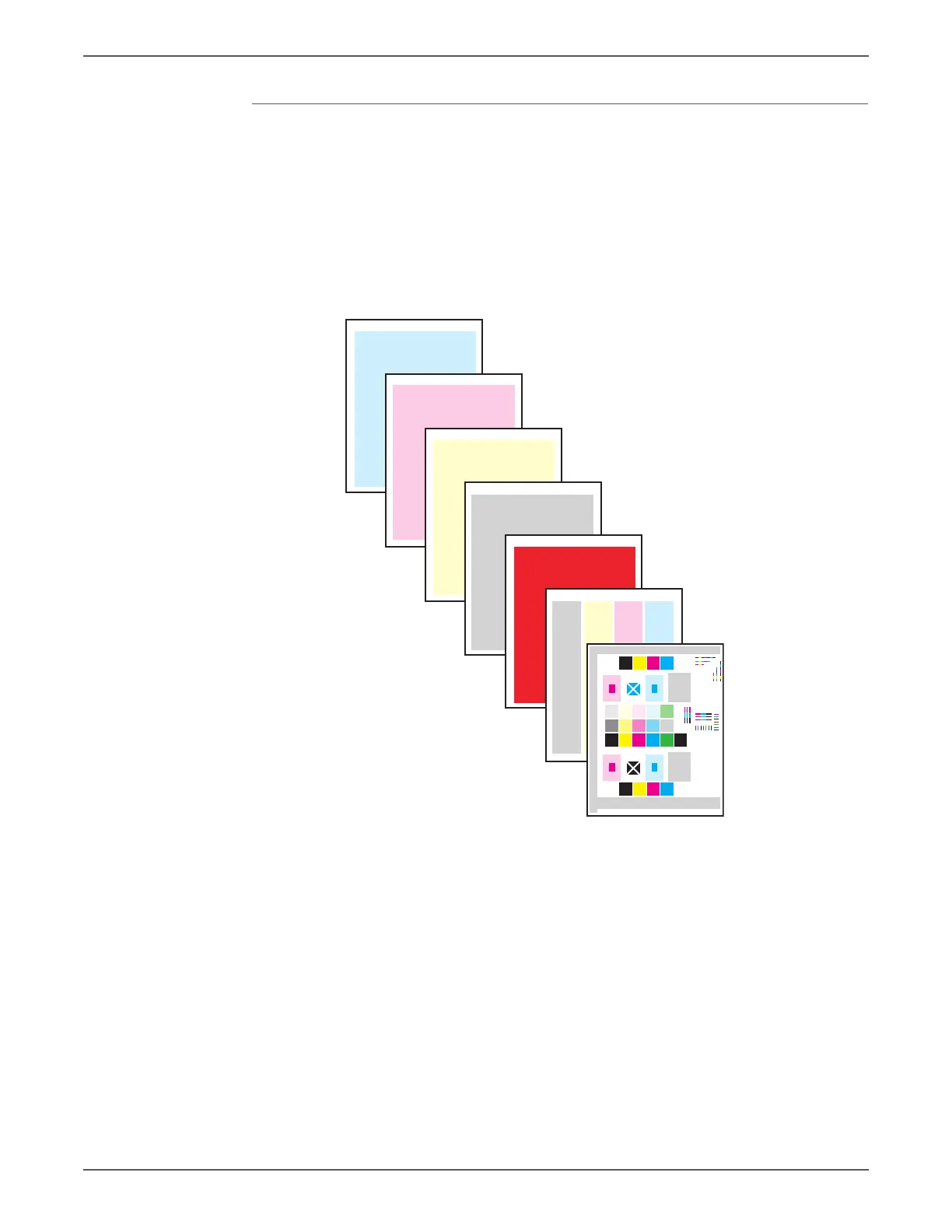

The Color Test Pages consist of 7 pages, 25% fill in CMYK, 100% solid fill red, and
the PS Pattern page.
Things to look for:
• Repeating defects or banding
• Missing Color(s)
•Streaks
•Voids
Analyzing Color Test Pages
CyanMagentaYellowBlack
HDST HDST
HDST HDST
HDST HDST
HDST HDST
