Phaser 7500 Printer Service Manual 8-59
Service Parts Disassembly

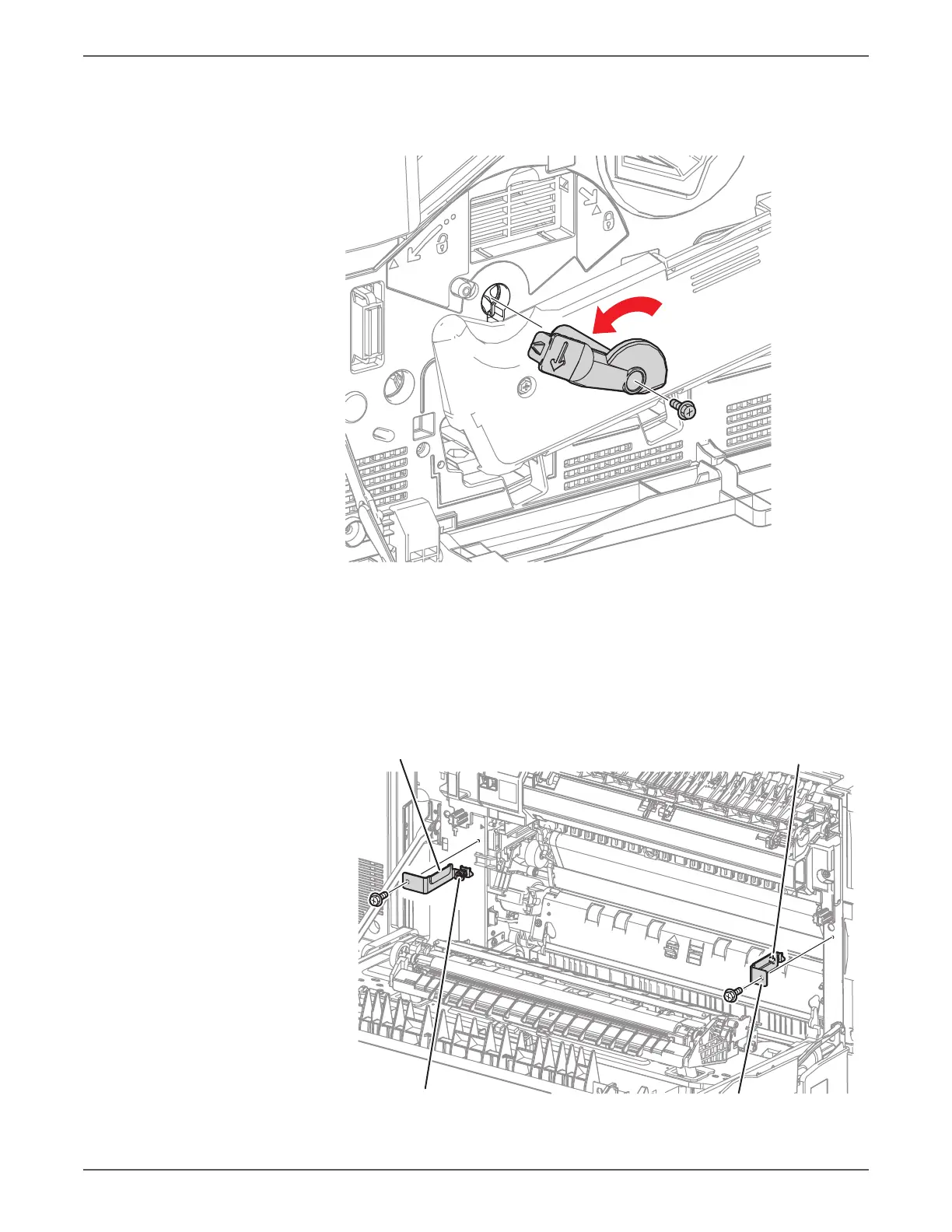

5. Turn the Tension Lever counterclockwise.
6. Remove 1 screw (silver, 8mm) that secures the Tension Lever and remove the
Tension Lever.
Do not remove the red screws.
7. Remove 1 screw (silver, 8mm) that secures the Front Lock Bracket and remove
the Front Lock Bracket.
8. Remove 1 screw (silver, 8mm) that secures the Rear Lock Bracket and remove
the Rear Lock Bracket.
s7500-112
Rear Lock Bracket
Red Screw
Red Screw
Front Lock Bracket
To Next Page
