Xerox PHASER 7500 Service Manual

8-60 Phaser 7500 Printer Service Manual
Service Parts Disassembly
9. Pull the Stopper Lever Latch.
Caution
Do not move the IBT Belt Unit out too far to prevent from dropping the IBT
Belt Unit.
10. Release the latch.
11. Pull out the IBT Belt Unit by holding onto the indicated section (A) until the
Handle at the front/rear become accessible.
12. Lift the IBT Belt Unit upward using the Handles at the front/rear and slide the
IBT Belt Unit toward you to remove it.

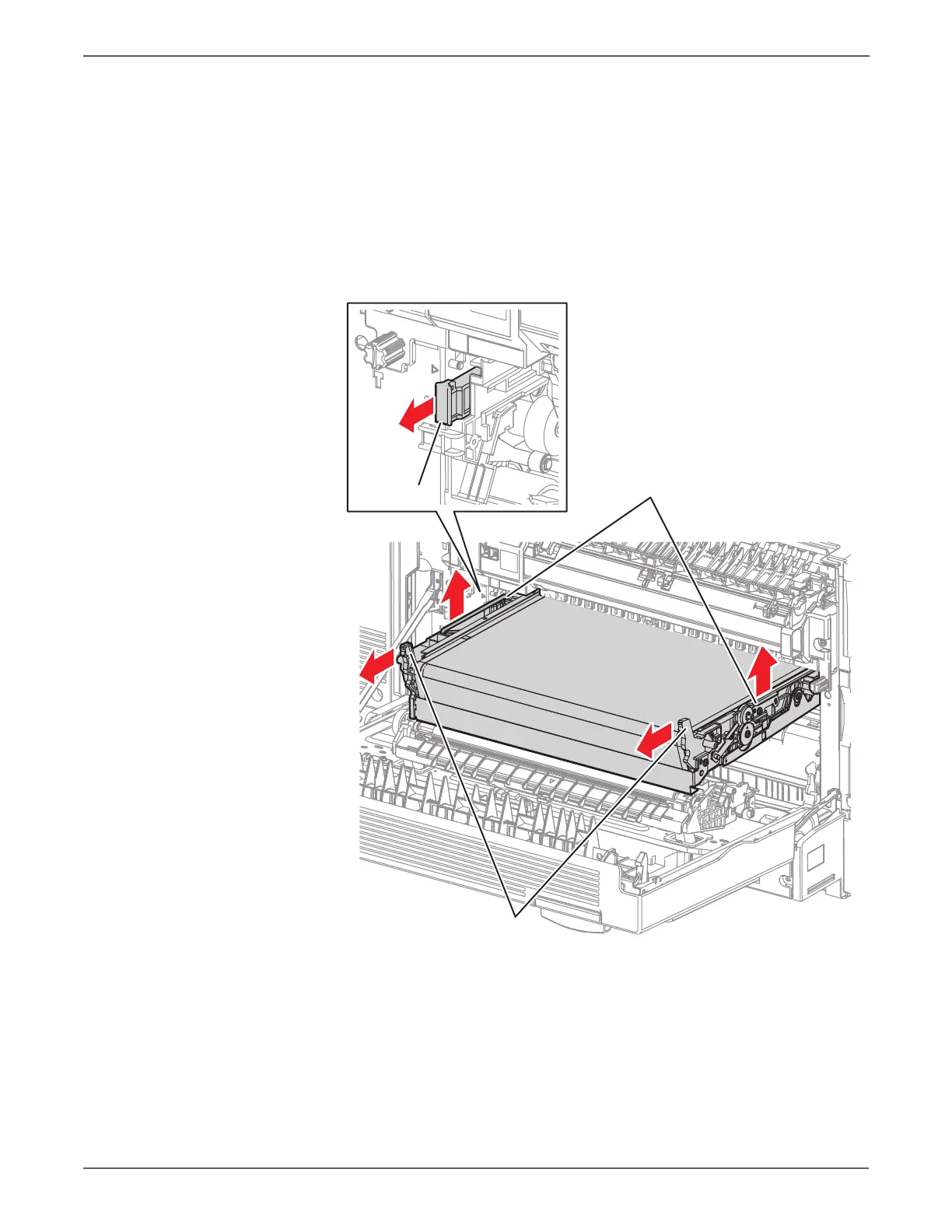

s7500-113
A
Handles
Latch
