Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-199
Service Parts Disassembly
Caution
Be careful not to damage the released wiring harness when removing the
PWB Chassis.

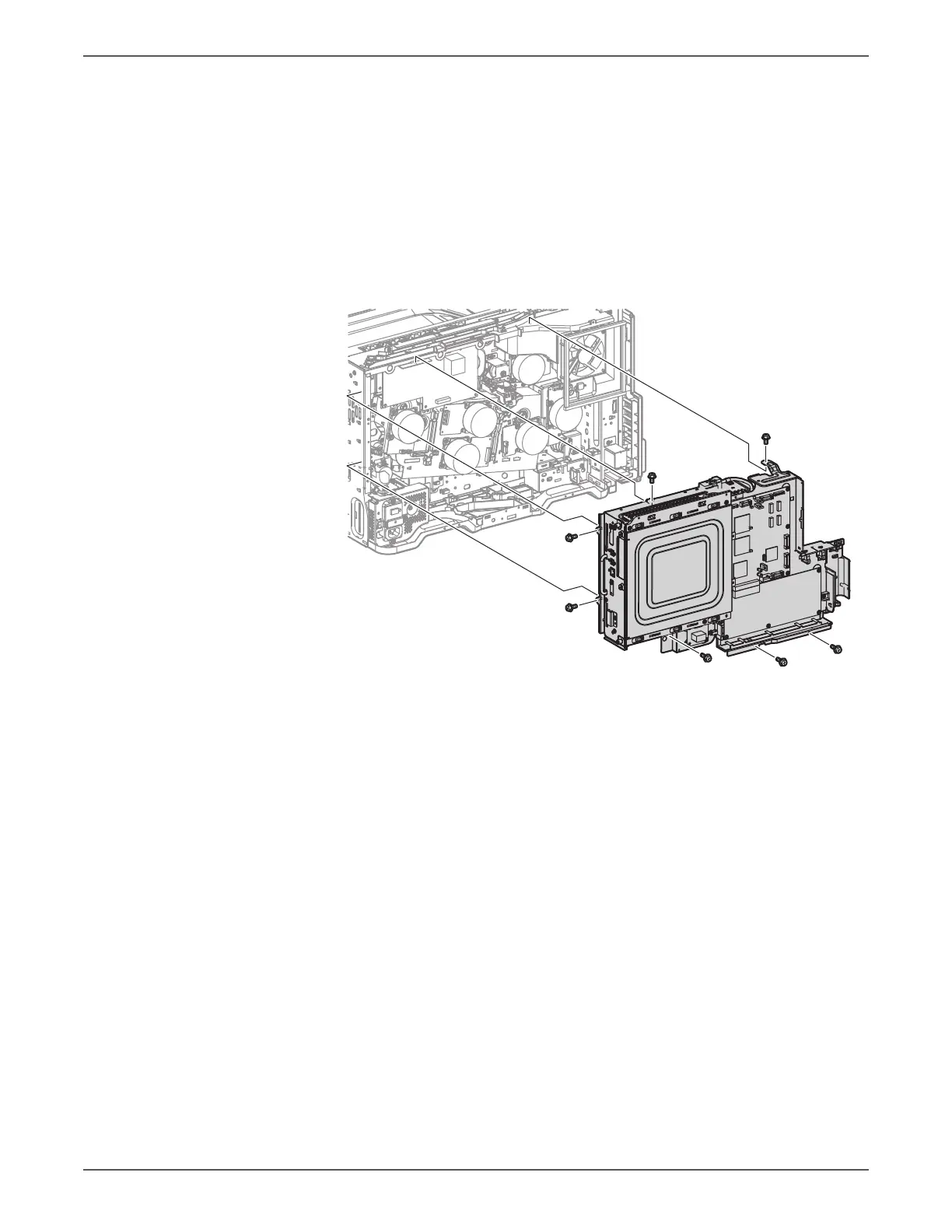

9. Remove 4 connectors on the top of the MCU PWB P416, P411, P415, and
P431.
10. Remove 7 screws (silver, 6mm) that secure the PWB Chassis Unit to the printer.
11. Fold a piece of paper multiple times and place it under the wires from the
Motor Drive PWB.
12. The chassis unit can now be rotated approximately 90 degree to gain access
to the components on the rear of the printer.
s7500-256
