ARM Cortex-M3 User Manual

Exceptions
ARM DDI 0337G Copyright © 2005-2008 ARM Limited. All rights reserved. 5-35
Unrestricted Access Non-Confidential
5.14.2 Pre-emption

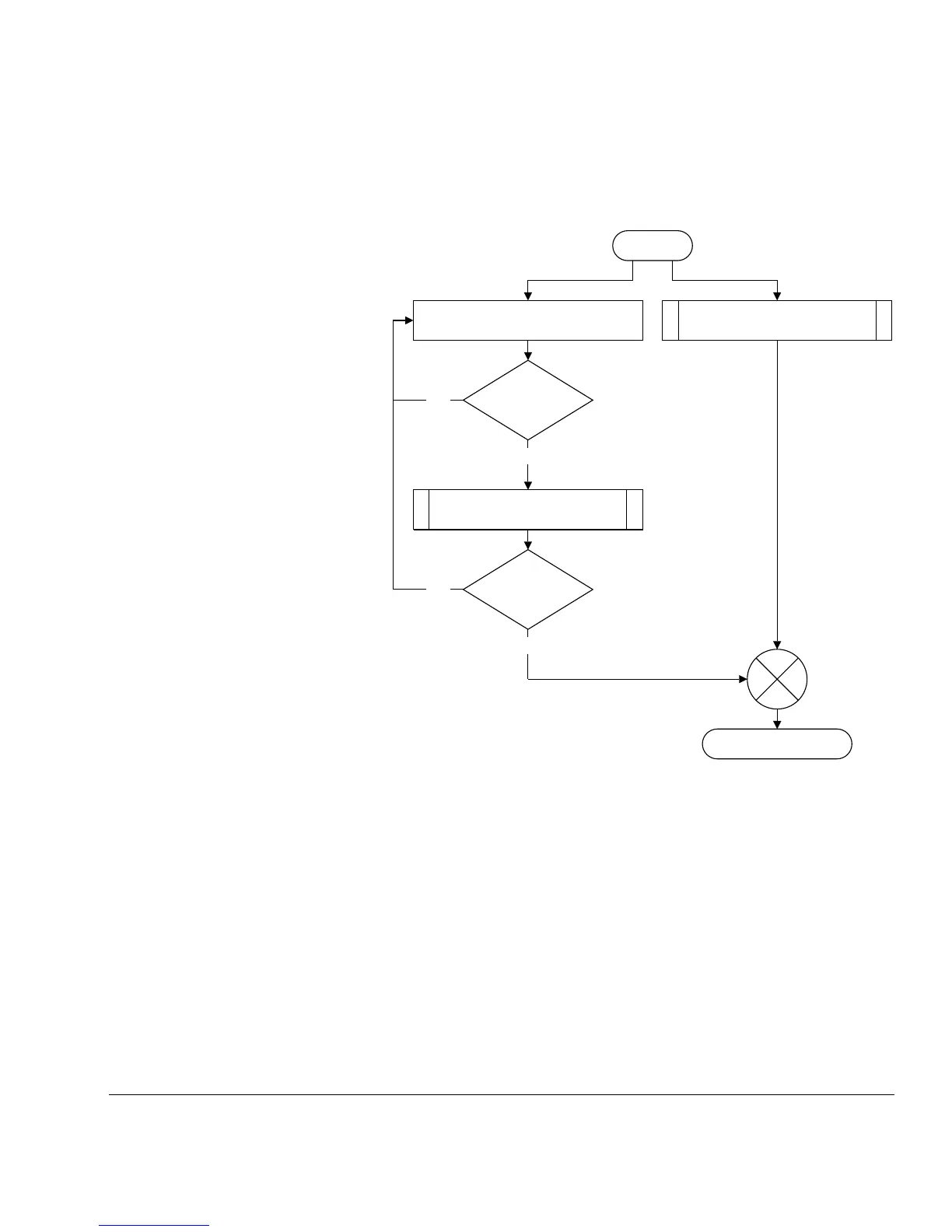

Figure 5-7 shows what happens when an exception pre-empts the current ISR.
Figure 5-7 Pre-emption flowchart
5.14.3 Return
Figure 5-8 on page 5-36 shows how the processor restores the stacked ISR or tail-chains
to a late-arriving interrupt with higher priority than the stacked ISR.
Pre-empt
Read new PC from vector table
Push registers r0-r3, r12, LR,
PC, and xPSR onto SP stack
Late-arriving
interrupt?
Yes
No
Fill pipeline at PC
Late-arriving
interrupt?
Yes
No
Execute instructions
Synchronize
D busI bus

ARM Cortex-M3 Specifications

General

Architecture	ARMv7-M
Instruction Set	Thumb-2
Pipeline Stages	3-stage
Interrupts	Nested Vectored Interrupt Controller (NVIC)
Interrupt Controller	Nested Vectored Interrupt Controller (NVIC)
Memory Protection Unit	Optional
Power Consumption	Varies by implementation
Max Clock Speed	Up to 100 MHz
Debugging	JTAG and Serial Wire Debug (SWD)
Operating Voltage	1.8V to 3.6V
Manufacturing Process	Varies by implementation
Core Type	32-bit
