ARM Cortex-M3 User Manual

Nested Vectored Interrupt Controller
ARM DDI 0337G Copyright © 2005-2008 ARM Limited. All rights reserved. 8-39
Unrestricted Access Non-Confidential
The register address, access type, and Reset state are:
Address
0xE000ED30
Access Read/write-one-to-clear
Reset state
0x00000000

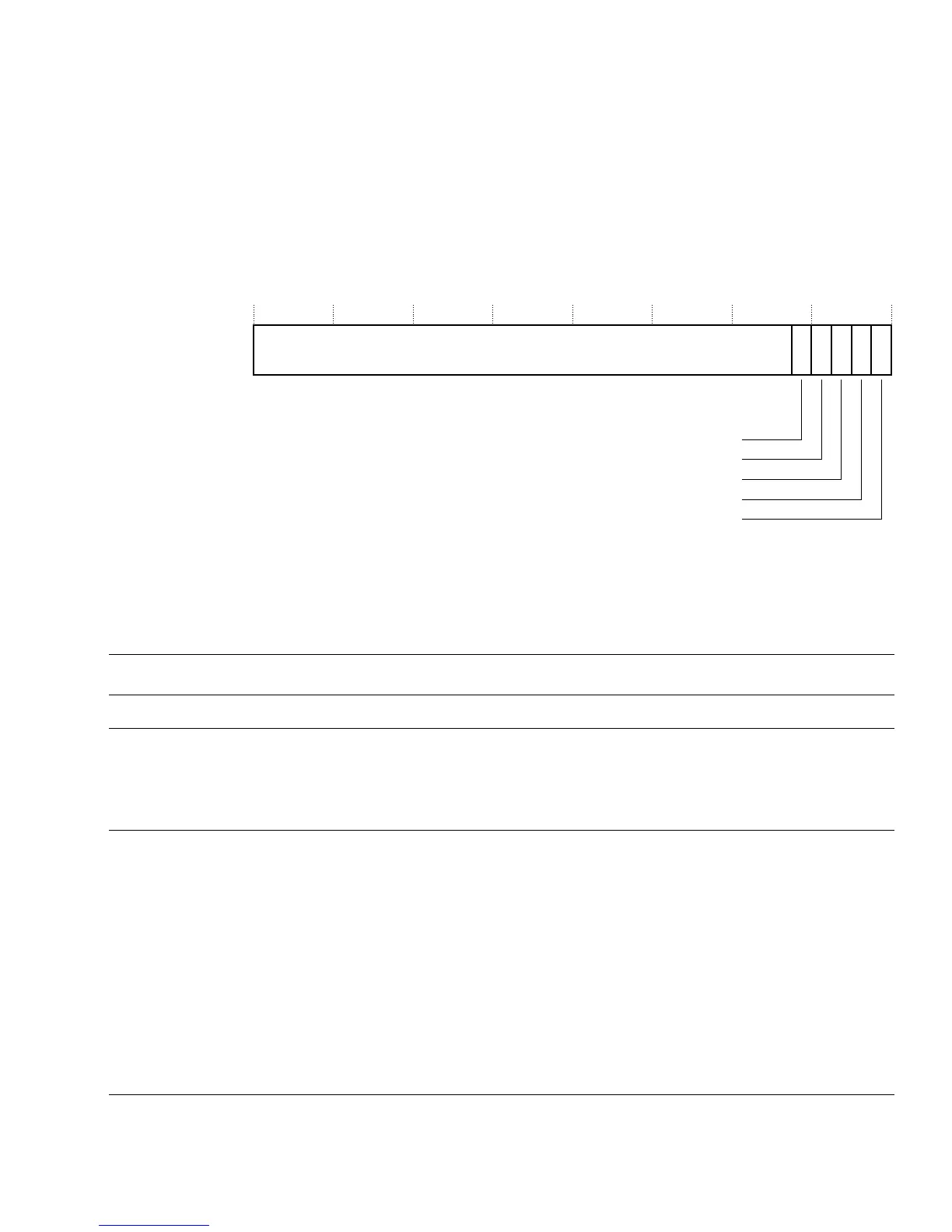

Figure 8-21 shows the bit assignments of the Debug Fault Status Register.
Figure 8-21 Debug Fault Status Register bit assignments
Table 8-26 describes the bit assignments of the Debug Fault Status Register.
31 4 3 2 1 0
Reserved
EXTERNAL
VCATCH
DWTTRAP
BKPT
HALTED
5
Table 8-26 Debug Fault Status Register bit assignments
Bits Field Function
[31:5] - Reserved
[4] EXTERNAL External debug request flag:
1 = EDBGRQ signal asserted
0 = EDBGRQ signal not asserted.
The processor stops on next instruction boundary.
[3] VCATCH Vector catch flag:
1 = vector catch occurred
0 = no vector catch occurred.
When the VCATCH flag is set, a flag in one of the local fault status registers is also set to
indicate the type of fault.

ARM Cortex-M3 Specifications

General

Architecture	ARMv7-M
Instruction Set	Thumb-2
Pipeline Stages	3-stage
Interrupts	Nested Vectored Interrupt Controller (NVIC)
Interrupt Controller	Nested Vectored Interrupt Controller (NVIC)
Memory Protection Unit	Optional
Power Consumption	Varies by implementation
Max Clock Speed	Up to 100 MHz
Debugging	JTAG and Serial Wire Debug (SWD)
Operating Voltage	1.8V to 3.6V
Manufacturing Process	Varies by implementation
Core Type	32-bit
