Exceptions

Unrestricted Access Non-Confidential

5.5 Pre-emption

The following sections describe the behavior of the processor when it takes an

exception:

• Stacking

• Late-arriving on page 5-15

• Tail-chaining on page 5-14.

5.5.1 Stacking

When the processor invokes an exception, it automatically stores the following eight

registers to the SP in the following order:

• Program Counter (PC)

• Processor Status Register (xPSR)

•r0-r3

•r12

• Link Register (LR).

The SP is decremented by eight words by the completion of the stack push. Figure 5-1

shows the contents of the stack after an exception pre-empts the current program flow.

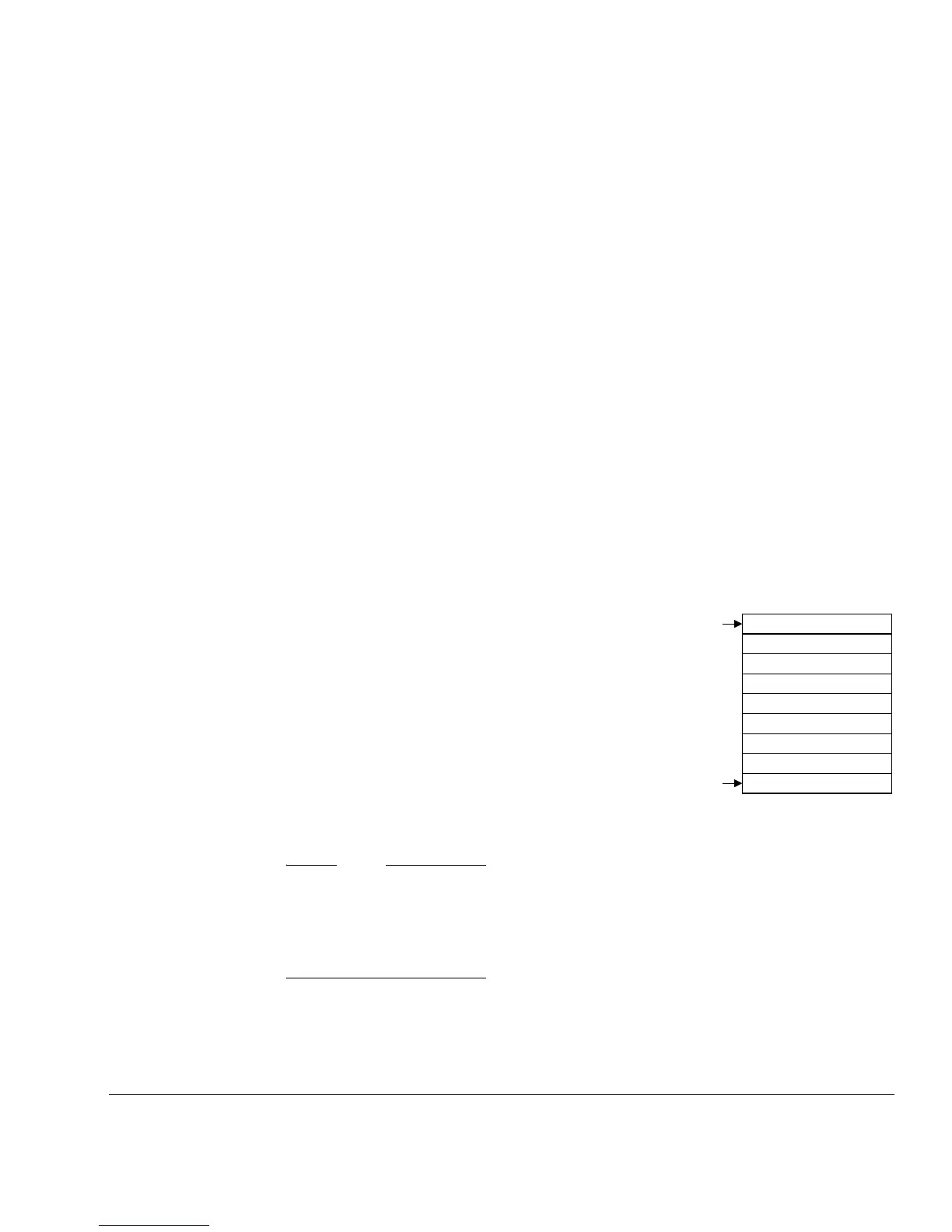

Figure 5-1 Stack contents after pre-emption

Note

• Figure 5-1 shows the order on the stack.

• If STKALIGN is set in the Configuration Control Register then an extra word can

be inserted before the stacking takes place. See Configuration Control Register on

page 8-26.

After returning from the ISR, the processor automatically pops the eight registers from

the stack. Interrupt return is passed as a data field in the LR, so ISR functions can be

normal C/C++ functions, and do not require a veneer.

Old SP

xPSR

r12
