ARM Cortex-M3 User Manual

Nested Vectored Interrupt Controller
8-20 Copyright © 2005-2008 ARM Limited. All rights reserved. ARM DDI 0337G
Non-Confidential
Unrestricted Access

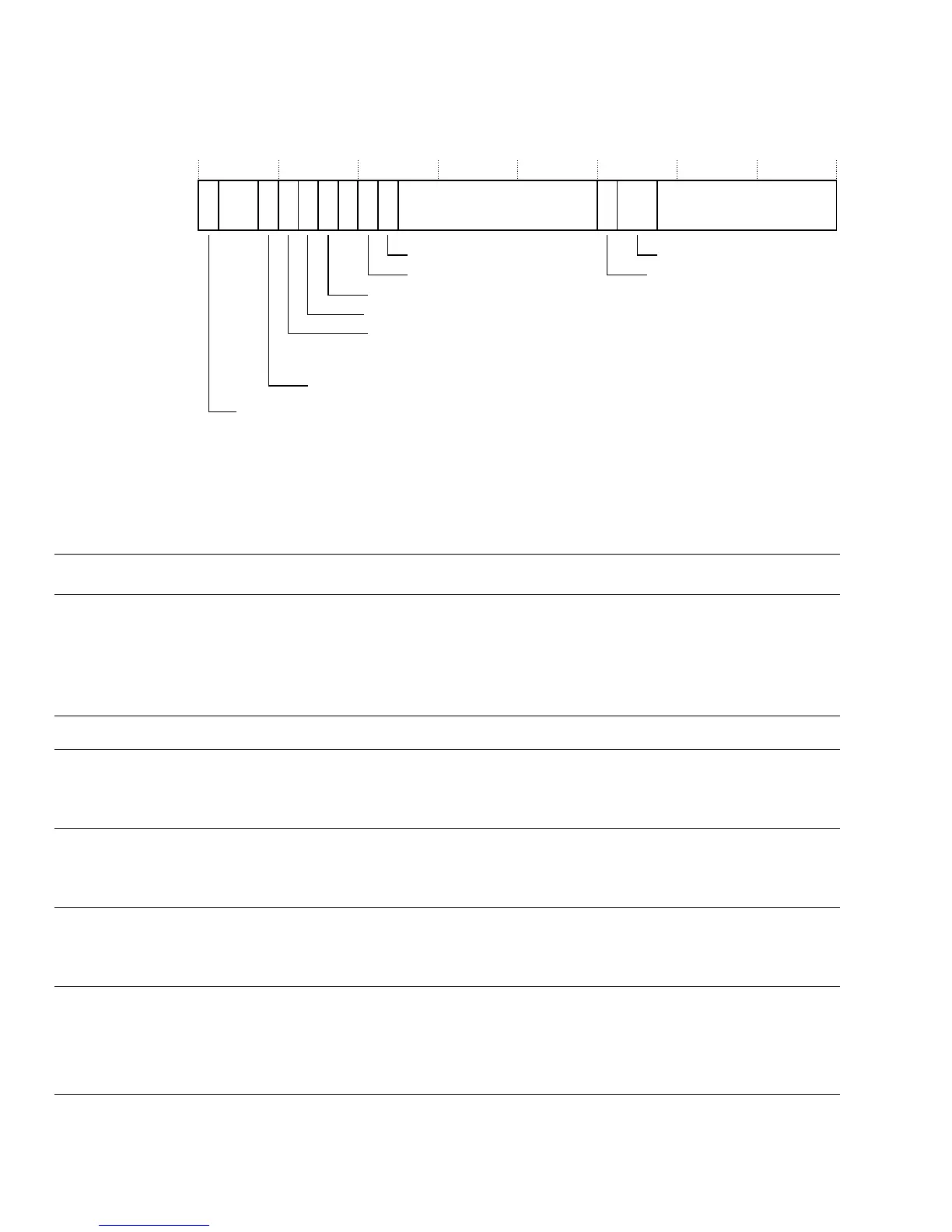

Figure 8-9 Interrupt Control State Register bit assignments
Table 8-15 describes the bit assignments of the Interrupt Control State Register.
31 28 22 21 910 0
VECTACTIVE
30 29 27 26 2324 12 11
VECTPENDING
NMIPENDSET
PENDSVSET
PENDSVCLR
ISRPREEMPT
ISRPENDING
Res.
RESERVED
RETTOBASE
25
PENDSTSET
PENDSTCLR
Res.
8
Table 8-15 Interrupt Control State Register bit assignments
Bits Field Type Function
[31] NMIPENDSET Read/write Set pending NMI bit:
1 = set pending NMI
0 = do not set pending NMI.
NMIPENDSET pends and activates an NMI. Because NMI is the
highest-priority interrupt, it takes effect as soon as it registers.
[30:29] - - Reserved.
[28] PENDSVSET Read/write Set pending pendSV bit:
1 = set pending pendSV
0 = do not set pending pendSV.
[27] PENDSVCLR Write-only Clear pending pendSV bit:
1 = clear pending pendSV
0 = do not clear pending pendSV.
[26] PENDSTSET Read/write Set a pending SysTick bit
1 = set pending SysTick
0 = do not set pending SysTick.
[25] PENDSTCLR Write-only Clear pending SysTick bit:
1 = clear pending SysTick
0 = do not clear pending SysTick.

ARM Cortex-M3 Specifications

General

Architecture	ARMv7-M
Instruction Set	Thumb-2
Pipeline Stages	3-stage
Interrupts	Nested Vectored Interrupt Controller (NVIC)
Interrupt Controller	Nested Vectored Interrupt Controller (NVIC)
Memory Protection Unit	Optional
Power Consumption	Varies by implementation
Max Clock Speed	Up to 100 MHz
Debugging	JTAG and Serial Wire Debug (SWD)
Operating Voltage	1.8V to 3.6V
Manufacturing Process	Varies by implementation
Core Type	32-bit
