System Debug

11-4 Copyright © 2005-2008 ARM Limited. All rights reserved. ARM DDI 0337G

Non-Confidential

Unrestricted Access

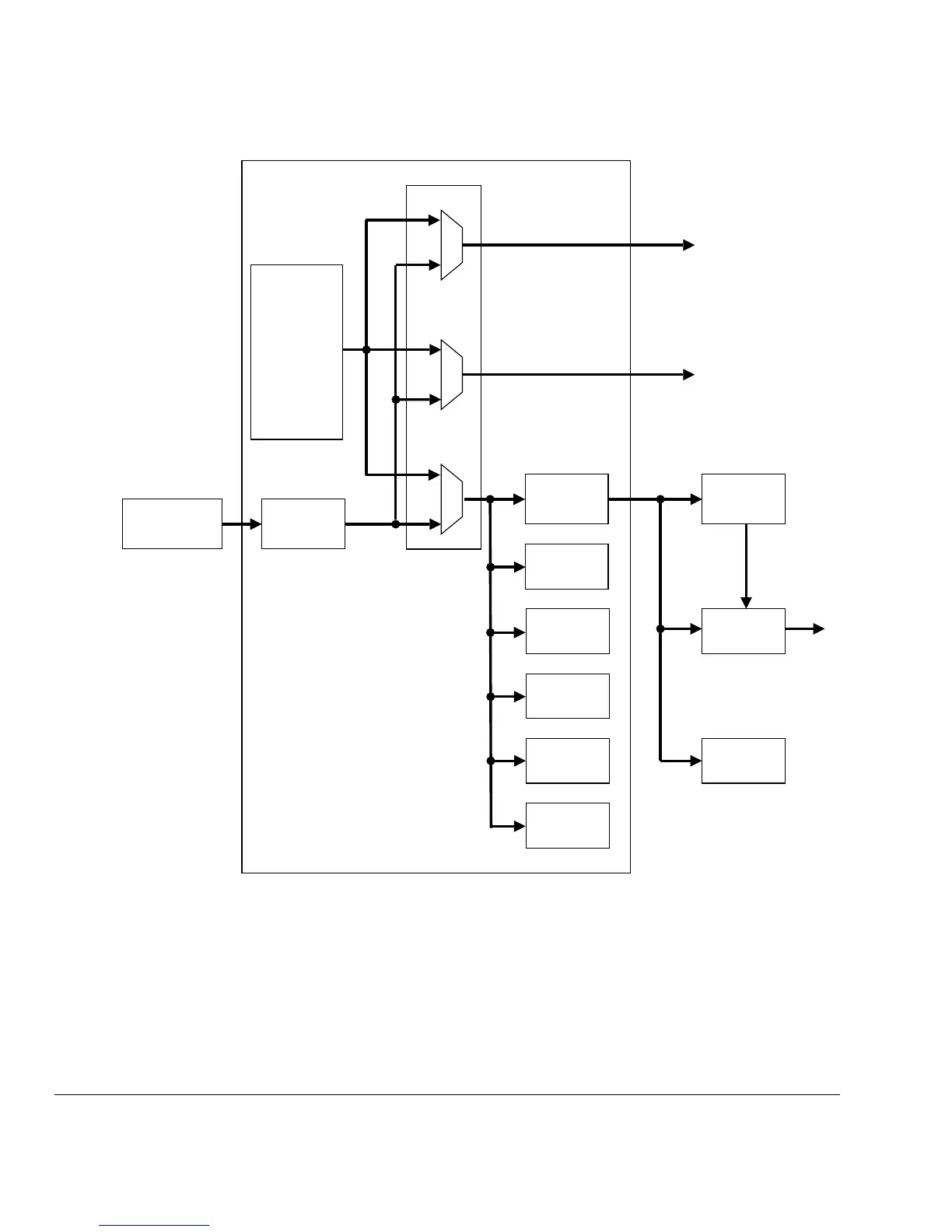

Figure 11-1 System debug access block diagram

CM3Core

SW/SWJ-DP AHB-AP

Data

DCode

interface

System

interface

Bridge

NVIC

ETM

DWT

FPB

ITM

MPU

TPIU

ROM table

Internal Private

Peripheral Bus

(PPB)

External Private

Peripheral Bus

(PPB)

Bus Matrix

Trace

port
