Embedded Trace Macrocell Interface

Unrestricted Access Non-Confidential

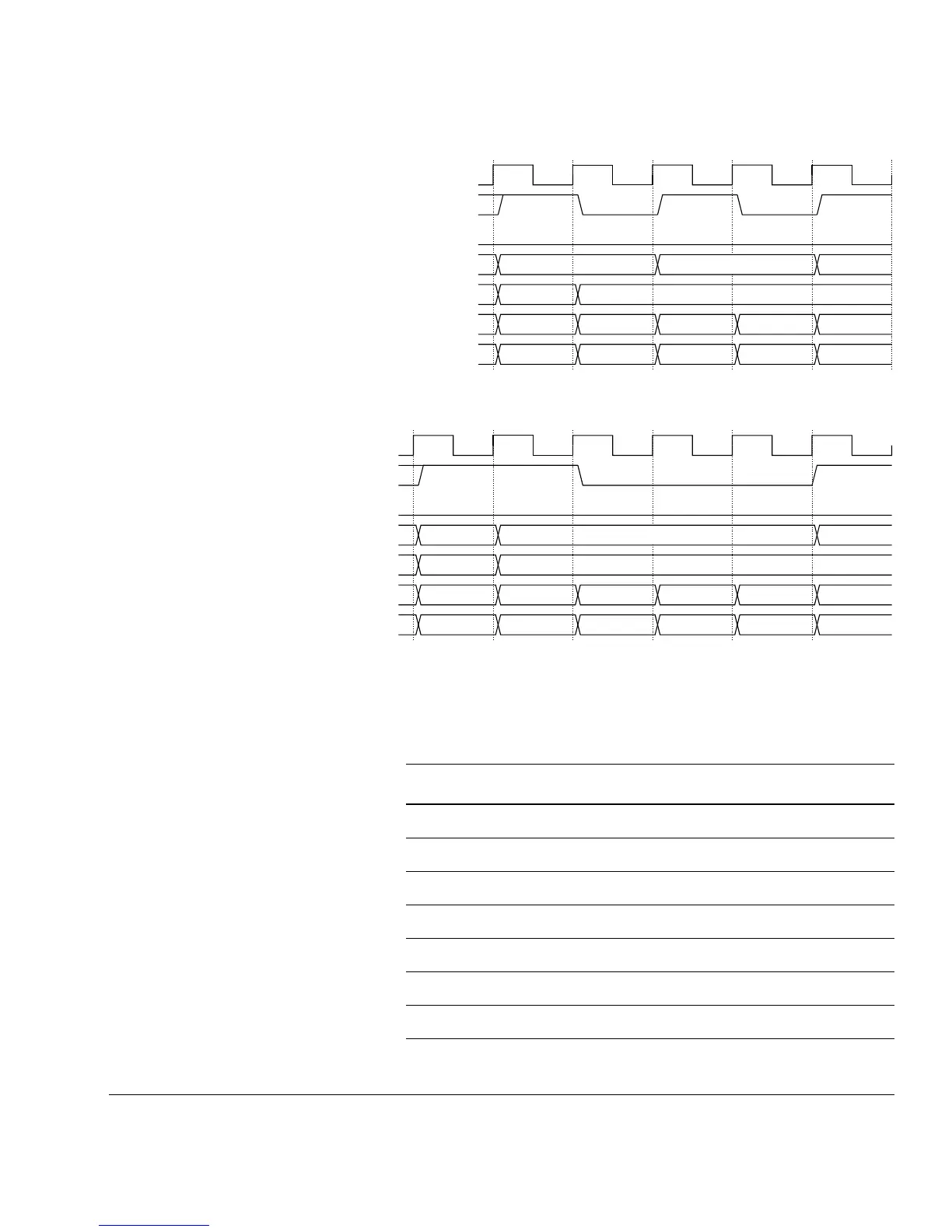

Figure 15-7 Unconditional branch in execute aligned

Figure 15-8 Unconditional branch in execute unaligned

Table 15-4 shows an example of an opcode sequence.

ETMIVALID

ETMCCFAIL

ETMIA

BRCHSTAT

HTRANSI

HADDRI

HCLK

0x1000

0101

0000

NONSEQ

0x1008

0x1002

0x4000

NONSEQ NONSEQ

NONSEQ

0x4000 0x4004

0x400C

NONSEQ

0x4008

ETMIVALID

ETMCCFAIL

ETMIA

BRCHSTAT

HTRANSI

HADDRI

HCLK

0x1000

0101

0000

NONSEQ

0x1002

0x4002

NONSEQ NONSEQ

NONSEQ

0x4000 0x4004

0x4010

0x1008

NONSEQ NONSEQ

0x4008 0x400C

Table 15-4 Example of an opcode sequence

Execute cycle Fetch address Opcode

0x1020 ADD r1,#1

0x1022 LDR r3,[r4]

0x1024 ADD r2,#3

0x1026 CMP r3,r2

0x1028 BEQ = Target1

0x1040 CMP r1,r2

0x1042 ITE

// folded

0x1044 LDR EQ r3,[r4,r1]

// skipped
