ARM Cortex-M3 User Manual

Embedded Trace Macrocell Interface
15-10 Copyright © 2005-2008 ARM Limited. All rights reserved. ARM DDI 0337G
Non-Confidential
Unrestricted Access
Figure 15-5 and Figure 15-6 show an unconditional branch in this cycle, during the
execute phase of the preceding opcode without and with pipeline stalls. The branch
occurs in the decode phase of the opcode. The branch target is an aligned 32-bit opcode.

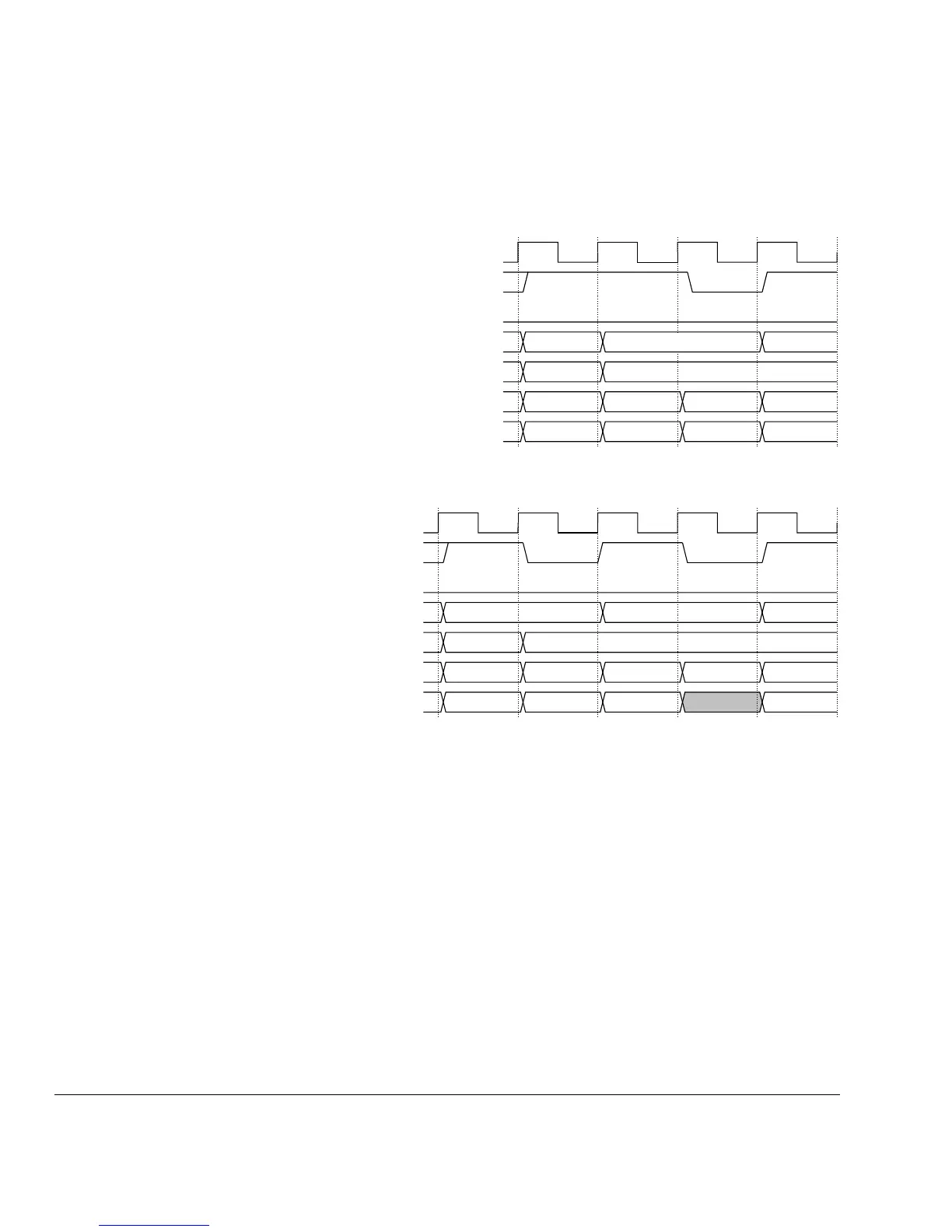

Figure 15-5 Unconditional branch without pipeline stalls
Figure 15-6 Unconditional branch with pipeline stalls
Figure 15-7 on page 15-11 and Figure 15-8 on page 15-11 show an unconditional
branch in the next opcode. The branch occurs in the execute phase of the opcode. The
branch target is an aligned and unaligned 32-bit ALU opcode.
ETMIVALID
ETMCCFAIL
ETMIA
BRCHSTAT
HTRANSI
HADDRI
HCLK
0x1000 0x1020
0100 0000
NONSEQ
0x1020
0x1002
NONSEQ NONSEQ NONSEQ
0x1024 0x1028 0x102C
0x1002
ETMIVALID
ETMCCFAIL
ETMIA
BRCHSTAT
HTRANSI
HADDRI
HCLK
0x1000
0100 0000
NONSEQ
0x1020
0x1020
NONSEQ NONSEQ IDLE NONSEQ
0x1024 0x1028 0x102C

ARM Cortex-M3 Specifications

General

Architecture	ARMv7-M
Instruction Set	Thumb-2
Pipeline Stages	3-stage
Interrupts	Nested Vectored Interrupt Controller (NVIC)
Interrupt Controller	Nested Vectored Interrupt Controller (NVIC)
Memory Protection Unit	Optional
Power Consumption	Varies by implementation
Max Clock Speed	Up to 100 MHz
Debugging	JTAG and Serial Wire Debug (SWD)
Operating Voltage	1.8V to 3.6V
Manufacturing Process	Varies by implementation
Core Type	32-bit
