ARM Cortex-M3 User Manual

Clocking and Resets
ARM DDI 0337G Copyright © 2005-2008 ARM Limited. All rights reserved. 6-7
Unrestricted Access Non-Confidential
Note
You must consider LOCKUP from the Cortex-M3 system for inclusion in any external
watchdog circuitry when an external debugger is not attached.

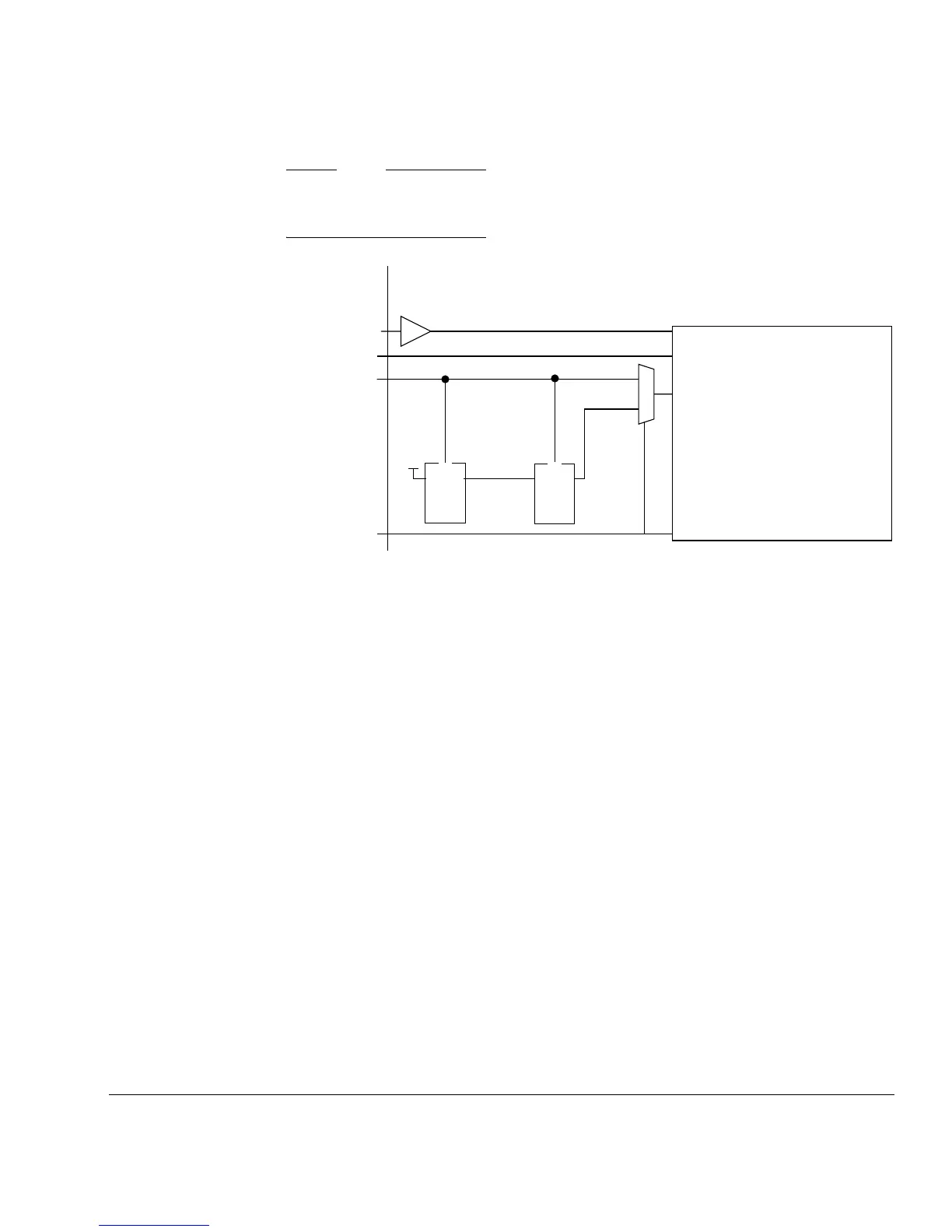

Figure 6-3 Internal reset synchronization
6.3.2 System reset
A system or warm reset initializes the majority of the macrocell, excluding the NVIC
debug logic, FPB, DWT, and ITM. System reset typically resets a system that has been
operating for some time, for example, watchdog reset.
SYSRESETn must be synchronized external to the processor. Figure 6-3 shows the
example reset synchronization provided in CortexM3Integration.
Cortex-M3 exports a signal, SYSRESETREQ, that is asserted when the
SYSRESETREQ bit of the Application Interrupt and Reset Control Register is set. For
example, you can use this as an input to a watchdog timer as Figure 6-1 on page 6-6
shows.
6.3.3 SWJ-DP reset
nTRST reset initializes the state of the SWJ-DP controller. nTRST reset is typically
used by the RealView
™
ICE module for hot-plug connection of a debugger to a system.
nTRST enables initialization of the SWJ-DP controller without affecting the normal
operation of the processor.
CortexM3
D Q
CortexM3IntegrationSoC
Rn
D Q
V
dd
HCLK
SE
RSTBYPASS
PORESETn,
SYSRESETn
1
0
Rn

ARM Cortex-M3 Specifications

General

Architecture	ARMv7-M
Instruction Set	Thumb-2
Pipeline Stages	3-stage
Interrupts	Nested Vectored Interrupt Controller (NVIC)
Interrupt Controller	Nested Vectored Interrupt Controller (NVIC)
Memory Protection Unit	Optional
Power Consumption	Varies by implementation
Max Clock Speed	Up to 100 MHz
Debugging	JTAG and Serial Wire Debug (SWD)
Operating Voltage	1.8V to 3.6V
Manufacturing Process	Varies by implementation
Core Type	32-bit
