12.6 Unifying the code buses
For some systems you might want to combine the processor core’s ICode and DCode
buses into a single, unified Code bus. To support this for high-speed operation, the
processor has the DNOTITRANS input that suppresses the HTRANSI line when
HTRANSD becomes active. With DNOTITRANS asserted, if HTRANSI and
HTRANSD are to be active simultaneously in corresponding single-cycle address
phases, then only HTRANSD is asserted. The ICode transaction is waited internal to
the processor. In other words, the external ICode bus is forced into an idle state. The two
HTRANS signals are therefore guaranteed never to be simultaneously active, which
permits the bus multiplexer to be a very simple device.
Note
DNOTITRANS is a static input that must be tied high to enforce this behavior.
The external ICode/DCode bus multiplexer can be integrated into a Cortex-M3 system
as Figure 12-1 shows.

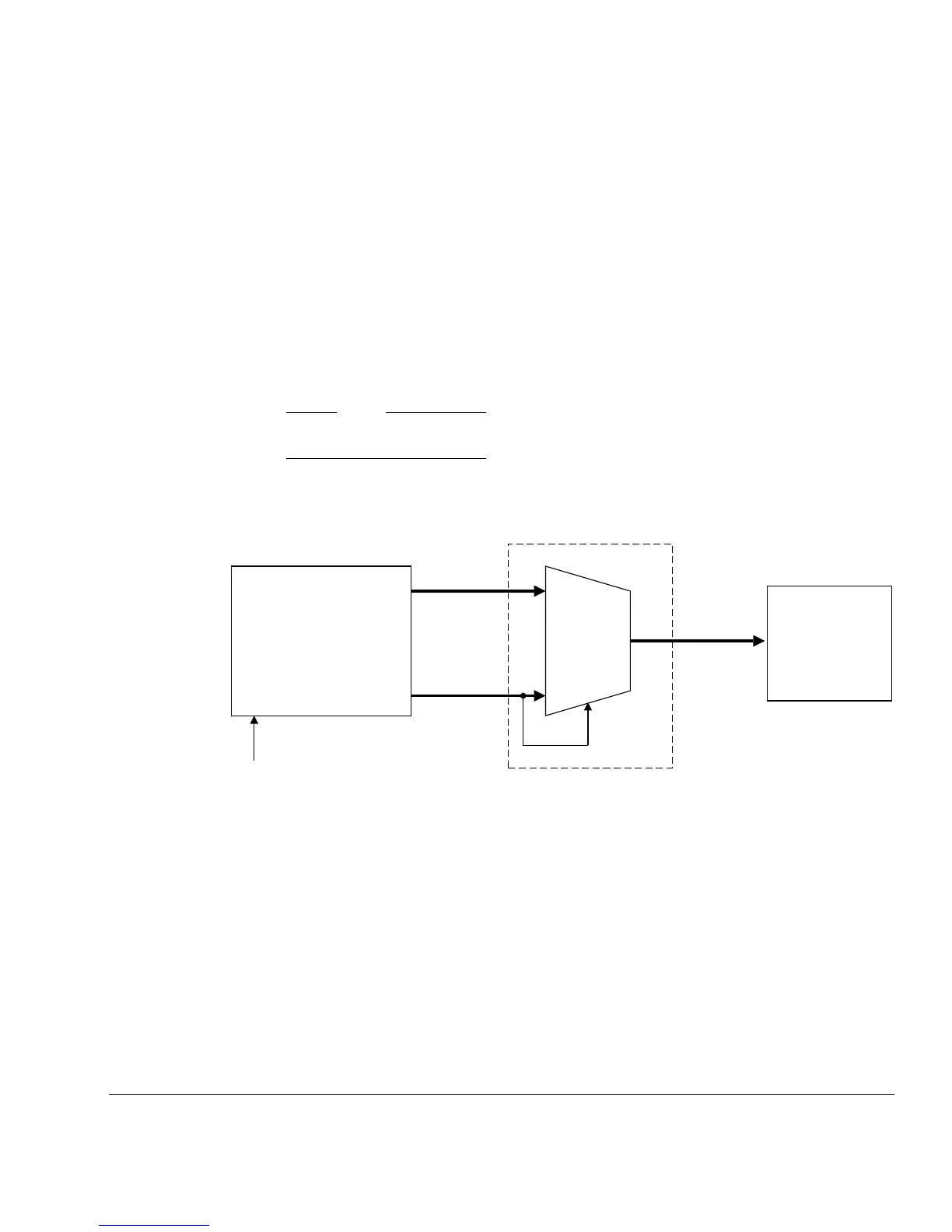

Figure 12-1 ICode/DCode multiplexer
Cortex-M3
ICode
DCode
AHBI
AHBD
AHBC
Memory
(AHB slave)
1
DNOTITRANS
Code bus mux
HTRANSC

ARM Cortex-M3 Specifications

General

Architecture	ARMv7-M
Instruction Set	Thumb-2
Pipeline Stages	3-stage
Interrupts	Nested Vectored Interrupt Controller (NVIC)
Interrupt Controller	Nested Vectored Interrupt Controller (NVIC)
Memory Protection Unit	Optional
Power Consumption	Varies by implementation
Max Clock Speed	Up to 100 MHz
Debugging	JTAG and Serial Wire Debug (SWD)
Operating Voltage	1.8V to 3.6V
Manufacturing Process	Varies by implementation
Core Type	32-bit
