Nested Vectored Interrupt Controller
8-36 Copyright © 2005-2008 ARM Limited. All rights reserved. ARM DDI 0337G
Non-Confidential
Unrestricted Access
The register address, access type, and Reset state are:
Address
0xE000ED2A
Access Read/write clear
Reset state
0x00000000

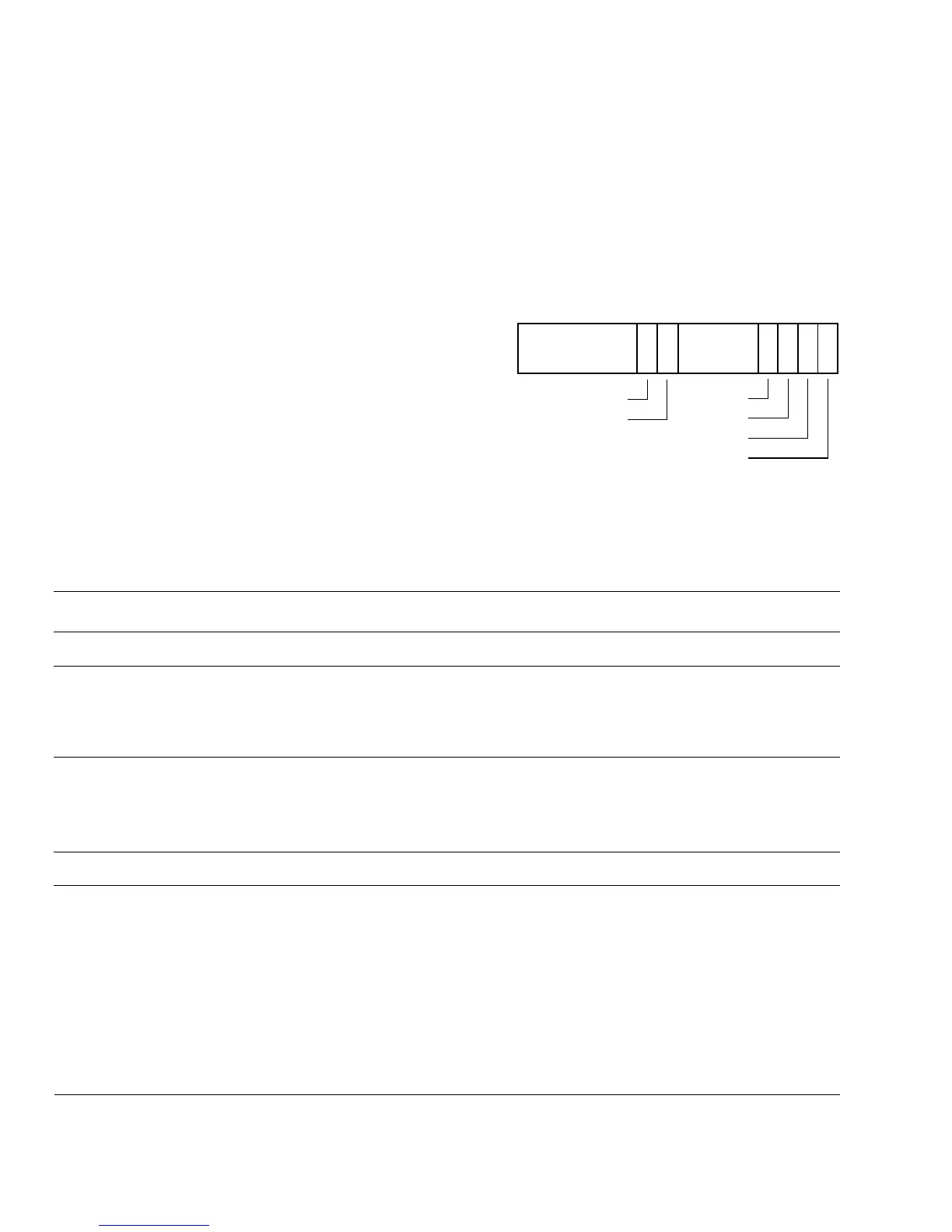

Figure 8-19 shows the bit assignments of the Usage Fault Status Register.
Figure 8-19 Usage Fault Status Register bit assignments
Table 8-24 describes the bit assignments of the Usage Fault Status Register.
7 43210
NOCP
Reserved
INVPC
INVSTATE
UNDEFINSTR
89
DIVBYZERO
UNALIGNED
1015
Reserved
Table 8-24 Usage Fault Status Register bit assignments
Bits Field Function
[15-10] - Reserved
[9] DIVBYZERO When DIV_0_TRP (see Configuration Control Register on page 8-26) is enabled and an
SDIV or UDIV instruction is used with a divisor of 0, this fault occurs The instruction is
executed and the return PC points to it. If DIV_0_TRP is not set, then the divide returns a
quotient of 0.
[8] UNALIGNED When UNALIGN_TRP is enabled (see Configuration Control Register on page 8-26), and
there is an attempt to make an unaligned memory access, then this fault occurs.
Unaligned LDM/STM/LDRD/STRD instructions always fault irrespective of the setting of
UNALIGN_TRP.
[7:4] - Reserved.
[3] NOCP Attempt to use a coprocessor instruction. The processor does not support coprocessor
instructions.
