Nested Vectored Interrupt Controller
ARM DDI 0337G Copyright © 2005-2008 ARM Limited. All rights reserved. 8-27
Unrestricted Access Non-Confidential

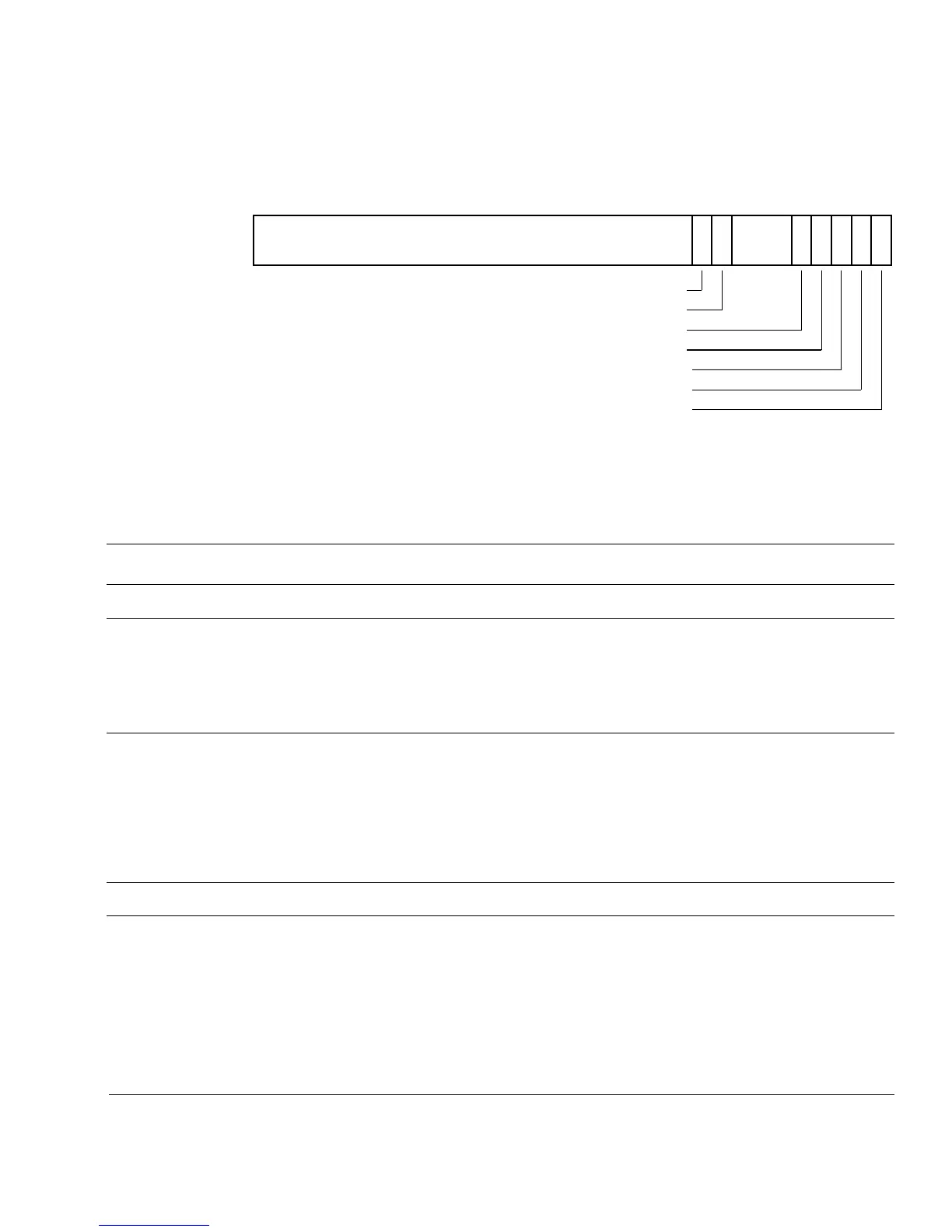

Figure 8-13 shows the bit assignments of the Configuration Control Register.
Figure 8-13 Configuration Control Register bit assignments
Table 8-19 describes the bit assignments of the Configuration Control Register.
31 03 2 1
Reserved
DIV_0_TRP
Reserved
UNALIGN_TRP
4
NONBASETHRDENA
USERSETMPEND
8
BFHFNMIGN
57
Res
9
STKALIGN
10
Table 8-19 Configuration Control Register bit assignments
Bits Field Function
[31:10] _ Reserved.
[9] STKALIGN 1 = on exception entry, the SP used prior to the exception is adjusted to be 8-byte
aligned and the context to restore it is saved. The SP is restored on the associated
exception return.
0 = only 4-byte alignment is guaranteed for the SP used prior to the exception on
exception entry.
[8] BFHFNMIGN When enabled, this causes handlers running at priority -1 and -2 (Hard Fault, NMI,
and FAULTMASK escalated handlers) to ignore Data Bus faults caused by load
and store instructions. When disabled, these bus faults cause a lock-up. You must
only use this enable with extreme caution. All data bus faults are ignored – you
must only use it when the handler and its data are in absolutely safe memory. Its
normal use is to probe system devices and bridges to detect control path problems
and fix them.
[7:5] - Reserved.
[4] DIV_0_TRP Trap on Divide by 0. This enables faulting/halting when an attempt is made to
divide by 0. The relevant Usage Fault Status Register bit is DIVBYZERO, see
Usage Fault Status Register on page 8-35.
