K. MS20659 Terminal Lugs
Refer to Paragraph 2.N. for the procedure to assemble these terminals.
Some of the small MS20659 terminal lugs have a wire insulation grip. Most of the MS10659 terminal
lugs do not have a wire insulation grip.
MS20659 terminal lugs are available from these suppliers:
• Burndy
• Thomas & Betts.
Table 23
MS20659 TERMINAL LUG PART NUMBERS
Crimp Barrel Size
(Wire Size Range)
(AWG)
CAU Range
Stud Hole Size Part Number Supplier
Minimum Maximum
22-18 5 20
4 MS20659-138
QPL
6 MS20659-101
10 MS20659-102
5/16 MS20659-161
3/8 MS20659-125
1/2 MS20659-162

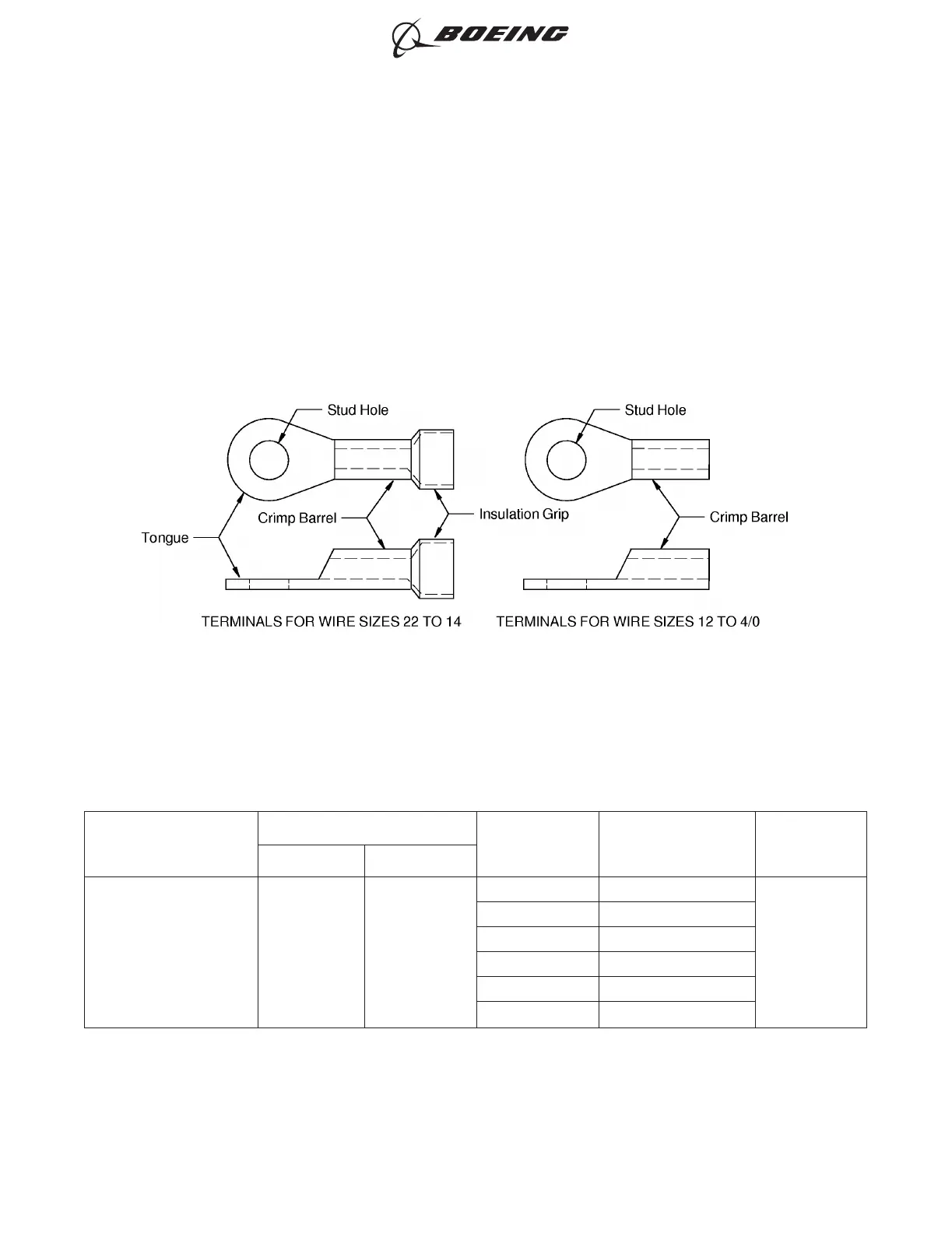

TYPICAL M20659 TERMINAL LUGS
Figure 11
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 34
Feb 15/2016D6-54446
