Boeing 707 - One Class 3 Shielded Cable to Two Class 3 Shielded Cables

Table 130
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A
C1
D1 0.28
±0.02D2 1.92
D3 2.20
C2
D1 0.28
±0.02D2 0.77
D3 1.05
C3
D1 0.28
±0.02D2 0.77
D3 1.05
2445821 S00061545582_V1

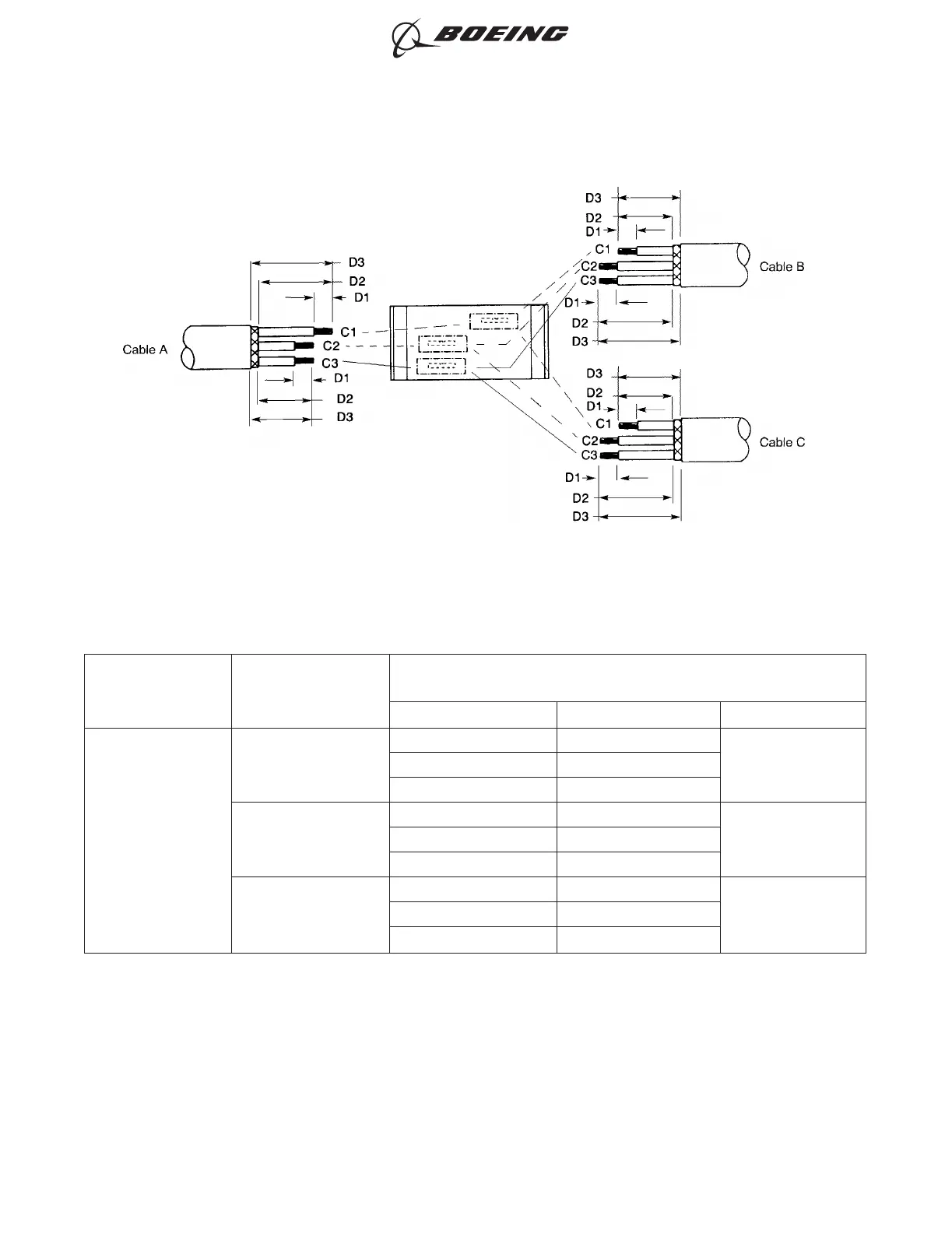

ONE CLASS 3 SHIELDED CABLE TO TWO CLASS 3 SHIELDED CABLES
Figure 288
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 319
Jun 15/2021D6-54446
