Boeing 707 - Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - Three Class 2 Shielded Cables to Three Class 2 Shielded Cables

K. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - Three
Class 2 Shielded Cables to Three Class 2 Shielded Cables
Table 123
SPLICE KITS FOR THREE CLASS 2 SHIELDED CABLES TO THREE CLASS 2 SHIELDED CABLES
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.18 0.10 8 27 D-150-0175 Tyco/Raychem
0.22 0.14 19 67 D-150-0176 Tyco/Raychem
0.34 0.19 43 138 D-150-0273 Tyco/Raychem
2445818 S00061545579_V1

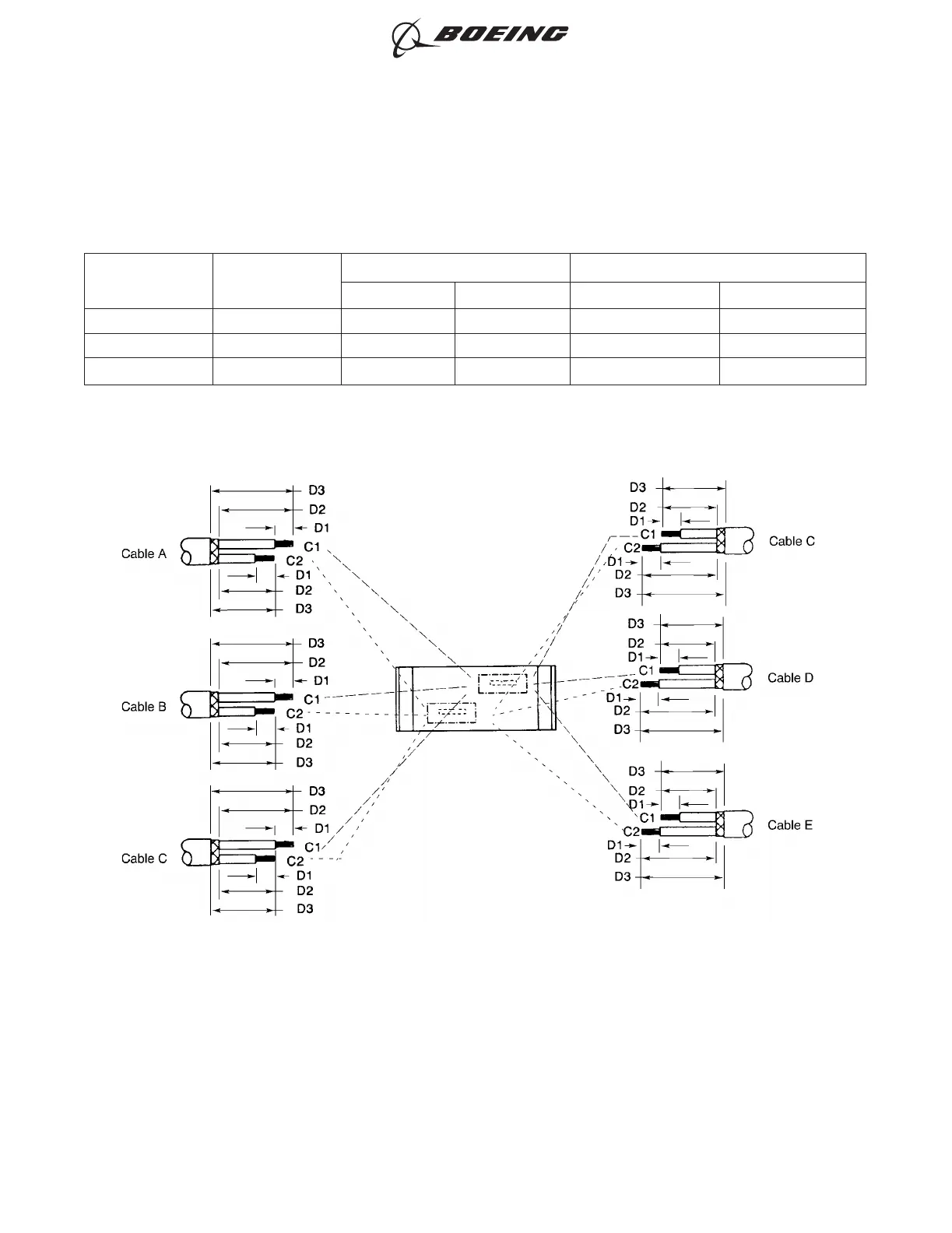

THREE CLASS 2 SHIELDED CABLES TO THREE CLASS 2 SHIELDED CABLES
Figure 285
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 313
Jun 15/2021D6-54446
