Table 15
PART NUMBERS OF BUTT SPLICES FOR HIGH TEMPERATURE
CAU Range
Boeing Standard
Crimp Barrel
Size
Type Supplier
Minimum Maximum
7 24 BACT12C20 22-18 Insulation Grip Boeing
15 51 BACT12C15 16-14 Insulation Grip Boeing
43 138 BACT12C11 12-10 Insulation Grip Boeing
Table 16
APPROVED SUPPLIERS OF BOEING STANDARD BUTT SPLICES FOR HIGH TEMPERATURE
Splice Supplier
BACT12C11 Tyco/AMP
BACT12C15 Tyco/AMP
BACT12C20 Tyco/AMP
Table 17
PART NUMBERS OF RAYCHEM D-609-1() BUTT SPLICES FOR HIGH TEMPERATURE
CAU Range
Part Number Crimp Barrel Size Color Stripe Supplier
Minimum Maximum
8 27 D-609-10 20-16 Blue Tyco/Raychem
23 67 D-609-11 16-12 Yellow Tyco/Raychem
D. Seal Sleeves for Butt Splices
2447103 S00061545446_V1

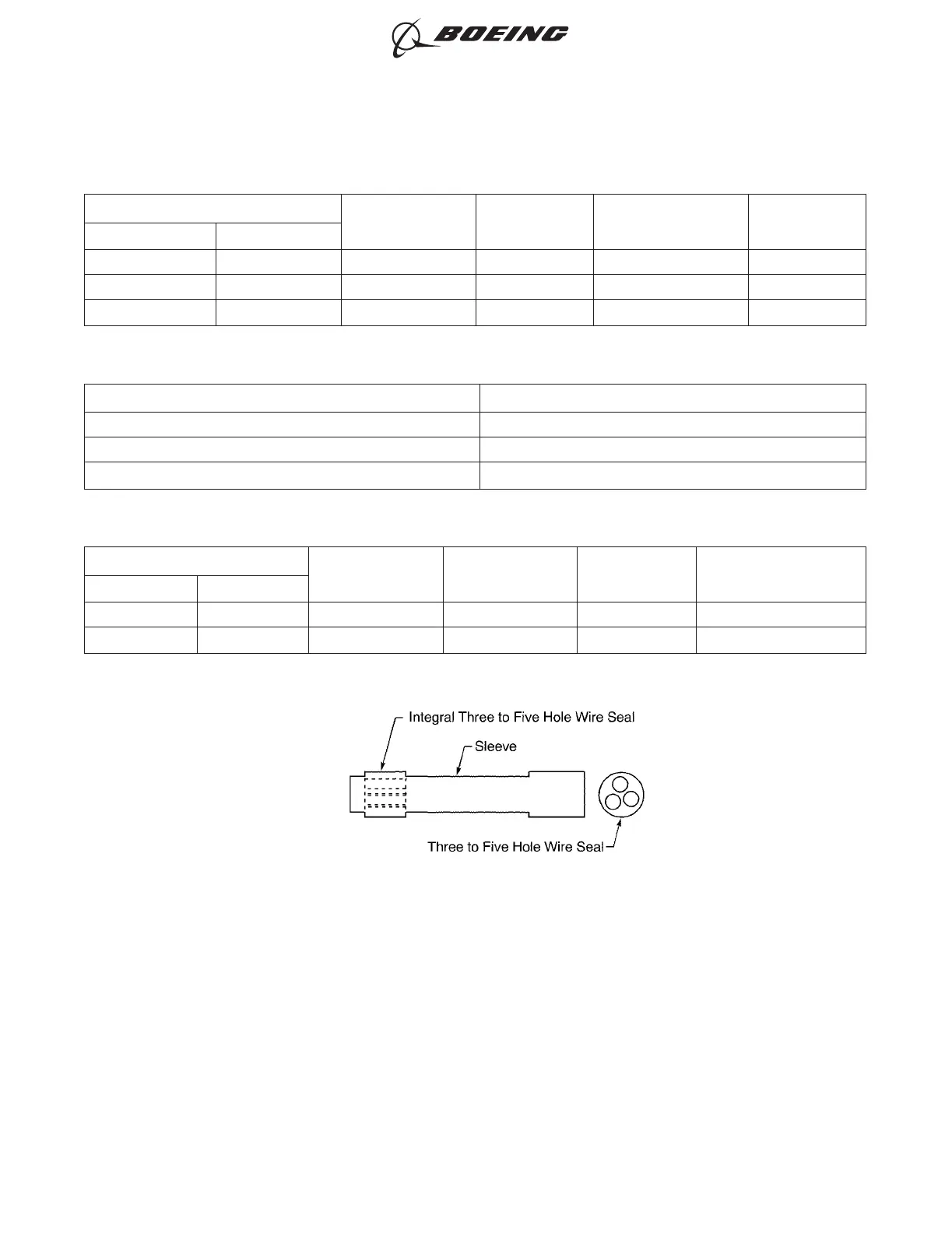

SLEEVE WITH A 3 TO 5 HOLE WIRE SEAL
Figure 3
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
