Make sure that the small end of the solder sleeve is put on the cable first.
(4) Put a seal sleeve on Wire A1 or Wire B1.
B. Kit Groups T1( )1, T2( )1, T3( )1 or T4( )1 - One Class 1 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 8.
Table 10
CONNECTIONS
Wire Connetion Wire Connected to
A1 Splice B1 and C1
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) Put these splice assembly components on Cable A in this sequence:
• The outer sleeve
• A solder sleeve
• The shield material
Make sure that the small end of the small solder sleeve is put on the cable first
(3) Put the other solder sleeve on Cable B and Cable C.

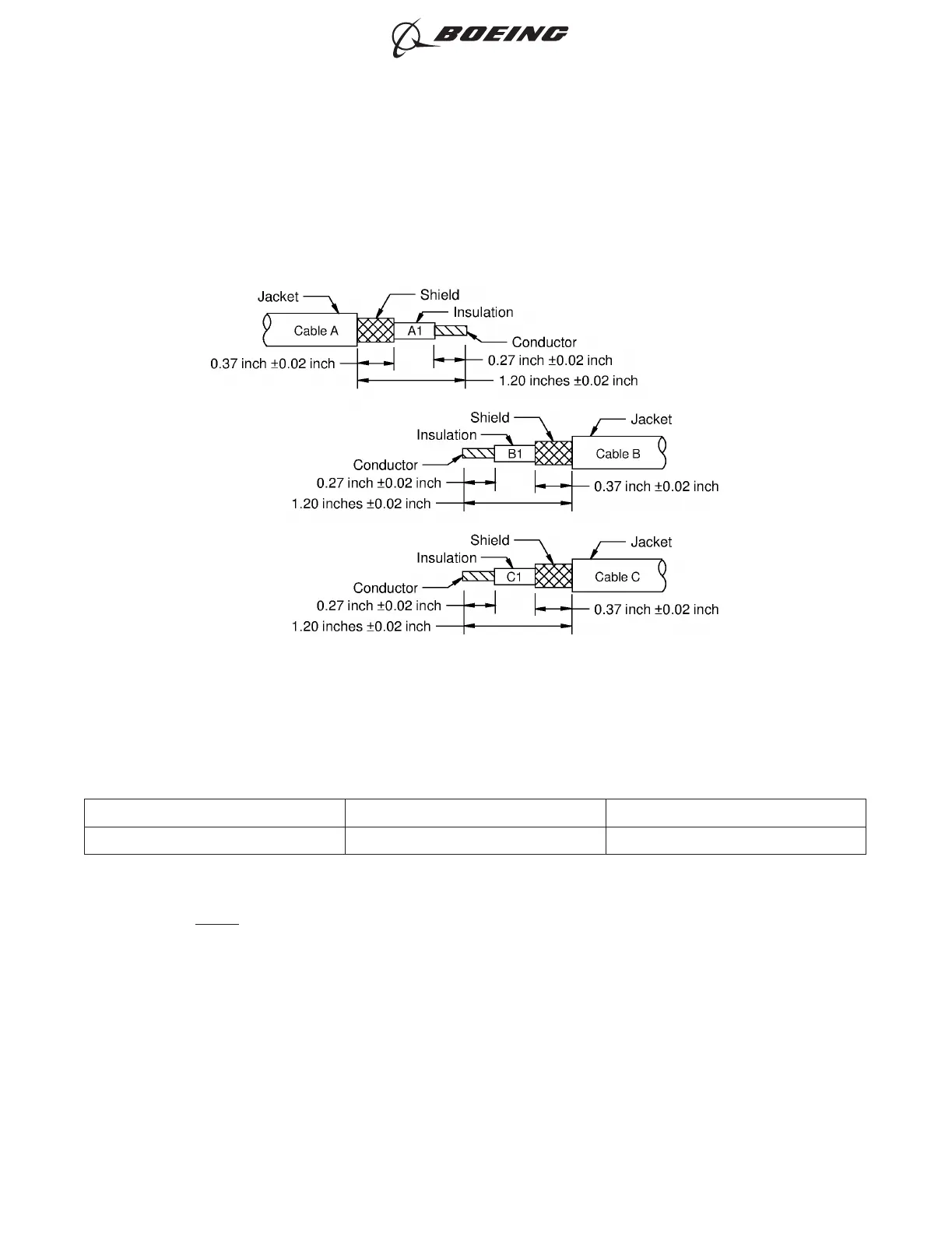

ONE CLASS 1 CABLE TO TWO CLASS 1 CABLES
Figure 8
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 27
Jun 15/2021D6-54446
