17. AMPHENOL 48 SERIES - DISCONNECTABLE REMOVABLE CONTACT SPLICE
A. Separation of the Plug and the Receptacle of the Splice-Connector
The Amphenol 48 Series Removable Contact Splice is a single wire connector with a removable pin or
socket contact.
The plug and the receptacle will accept either a pin or a socket contact.
Refer to Paragraph 3.G. for the part numbers and suppliers.
(1) Disconnect the plug from the receptacle:
(a) Hold both ends of the splice at the same time.
(b) Turn one end of the splice approximately 1/4 turn.
(c) Pull each end until the plug is disconnected from the receptacle.
B. Contact Removal
(1) Make a selection of a size 16 contact removal tool. Refer to Subject 20-61-11.
(2) Remove the contact. Refer to Subject 20-61-11.
NOTE: The contact is removed from the front face of the splice connector.

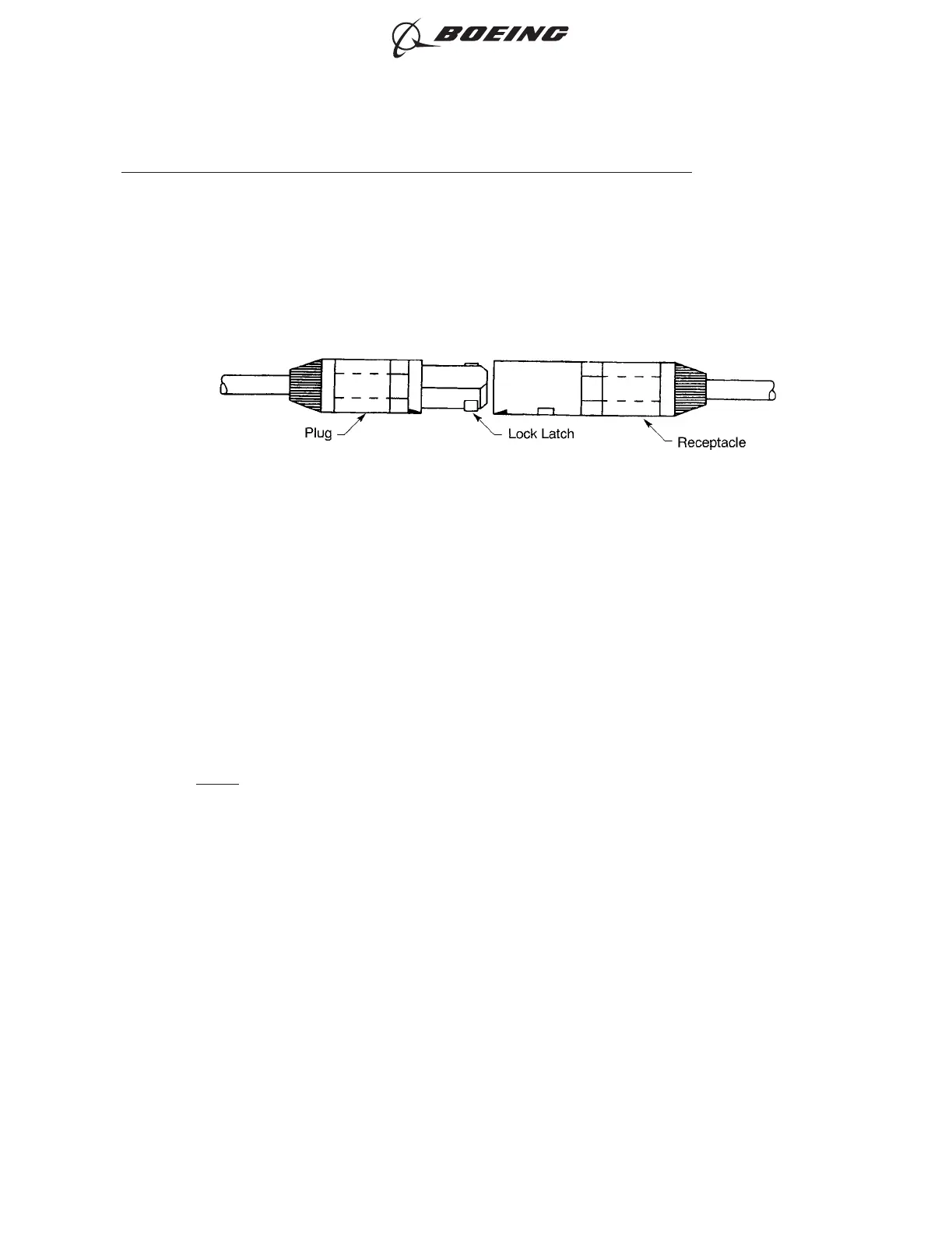

SPLICE SEPARATION
Figure 306
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 350
Jun 15/2021D6-54446
