Table 19
ALTERNATIVE BACT12M TERMINAL LUGS
Specified Terminal Lug Alternative Terminal Lug
BACT12M1 -
BACT12M142 BACT12M144
BACT12M143 BACT12M145
BACT12M3 -
BACT12M6 -
BACT12M9 BACT12M148
I. Tyco/AMP Solid Nickel High Temperature Terminal Lugs
Refer to Paragraph 2.I. for the procedure to assemble these terminals.
These terminal lugs do not have a wire insulation grip.
NOTE: A solid nickel terminal lug from Table 20 is a satisfactory alternative to a BACT12M terminal
lug.

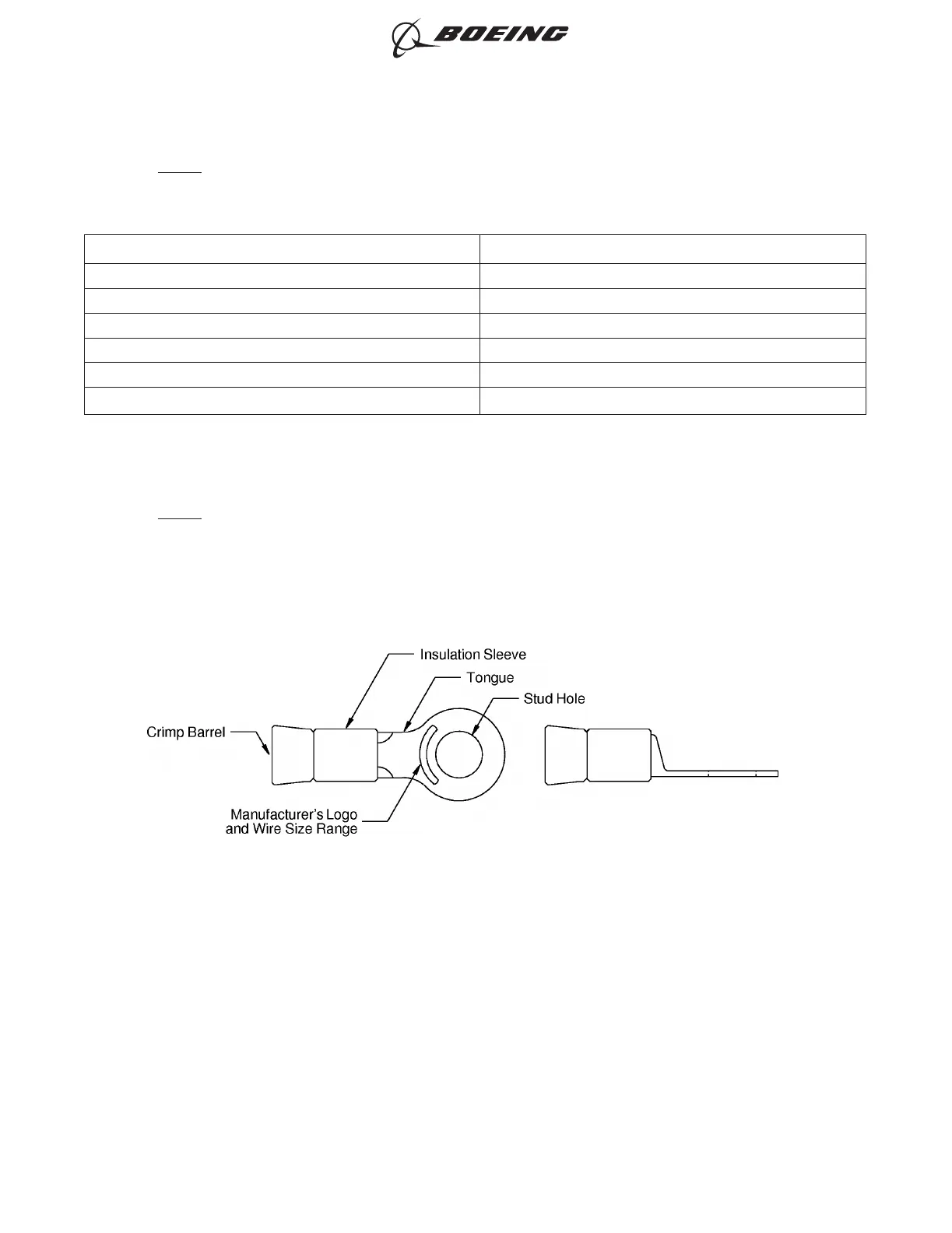

TYPICAL Tyco/AMP SOLID NICKEL TERMINAL
Figure 9
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 29
Feb 15/2021D6-54446
