Boeing 707 - Kit Groups T1( )2, T2( )2, T3( )2 or T4( )2 - One Class 2 Cable to Two Class 2 Cables

J. Kit Groups T1( )2, T2( )2, T3( )2 or T4( )2 - One Class 2 Cable to Two Class 2 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

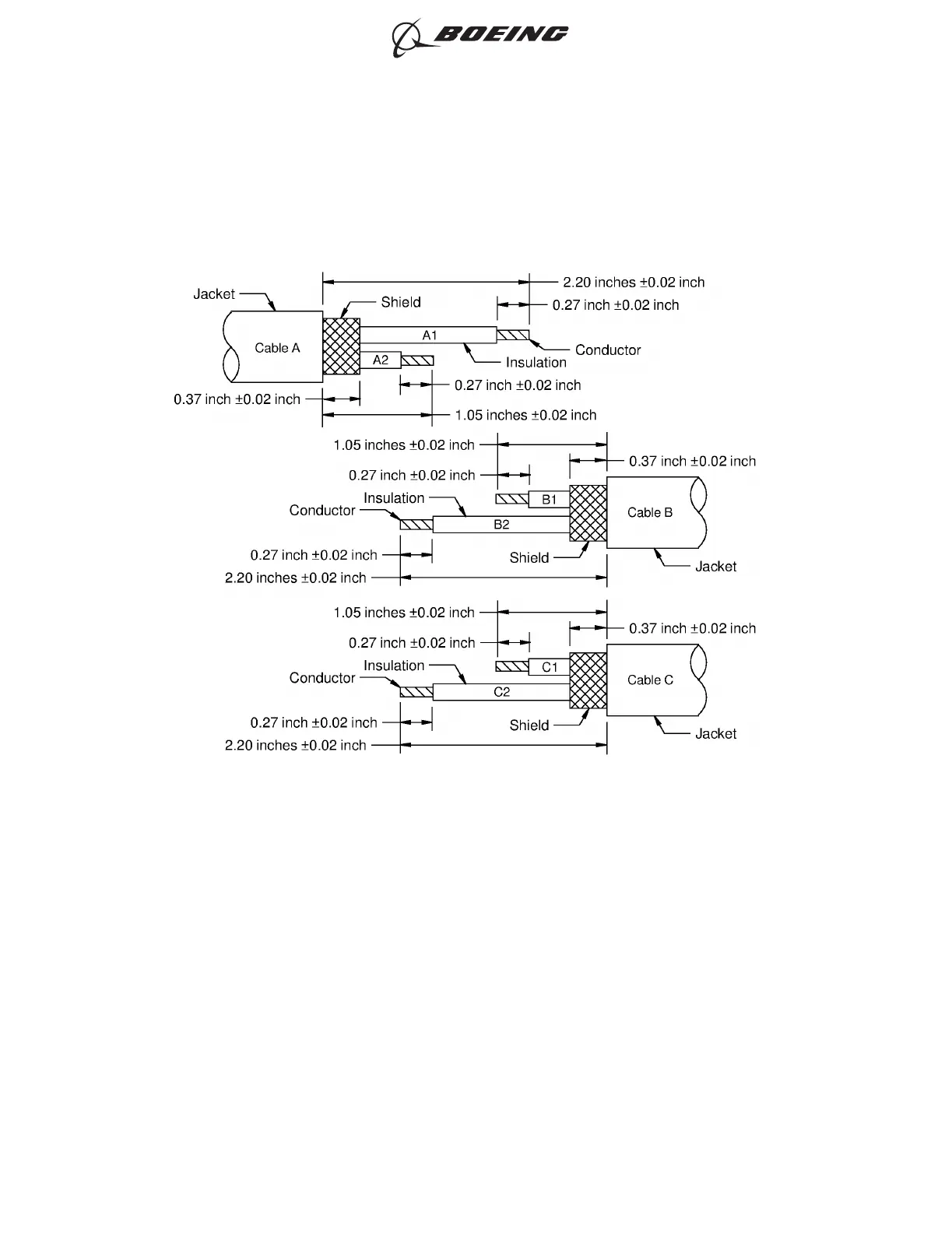

Refer to Figure 16.
2449835 S00061545786_V1
ONE CLASS 2 CABLE TO TWO CLASS 2 CABLES
Figure 16
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 42
Oct 15/2020D6-54446
